SCM L’ivincibile S630e Thicknesser, Tersa, Variable Feed Speed. 630x300mm

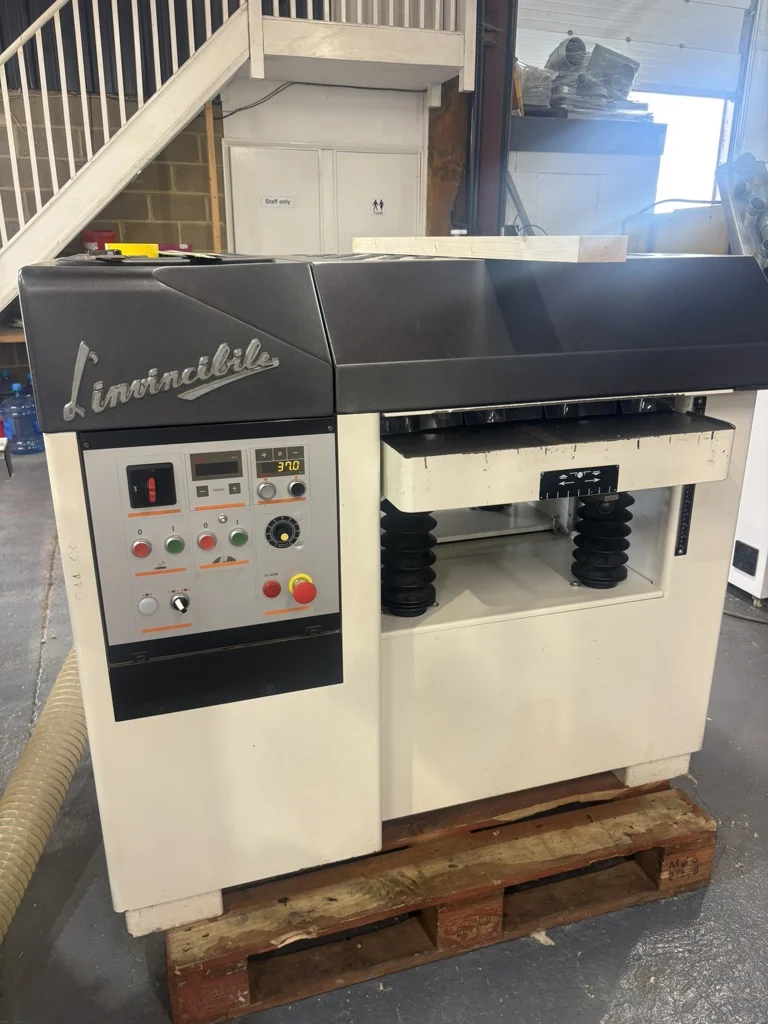

SCM L’Invincibile S630E

heavy-duty 630 mm thickness planer –

• Working width: 630 mm
• Maximum working height: 300 mm
• Minimum working height: approx. 3 mm
• Minimum workpiece length: 260 mm
• Cutterblock: 4-knife, Tersa
• Cutterblock diameter: approx. 120 mm
• Cutterblock speed: 4,500 rpm
• Feed speed: continuously variable, up to 20 m/min
• Main motor: typically 7.5 kW / 10 hp
• Thickness table: approx. 640 × 1,000 mm
• Powered/electronic table height adjustment

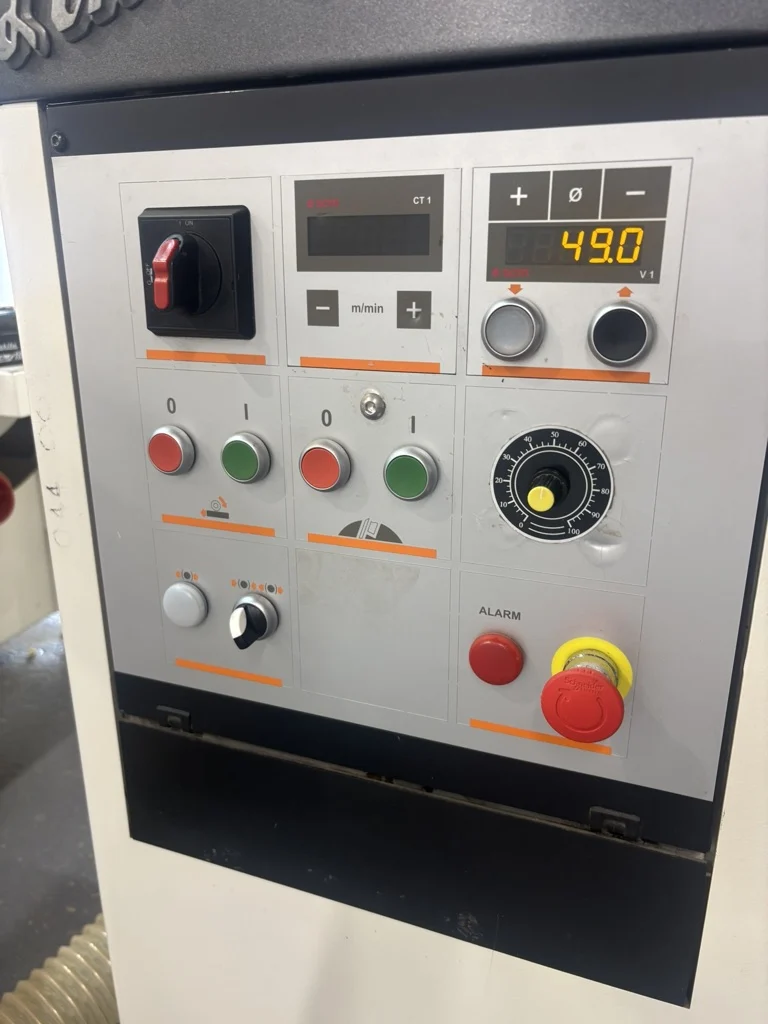

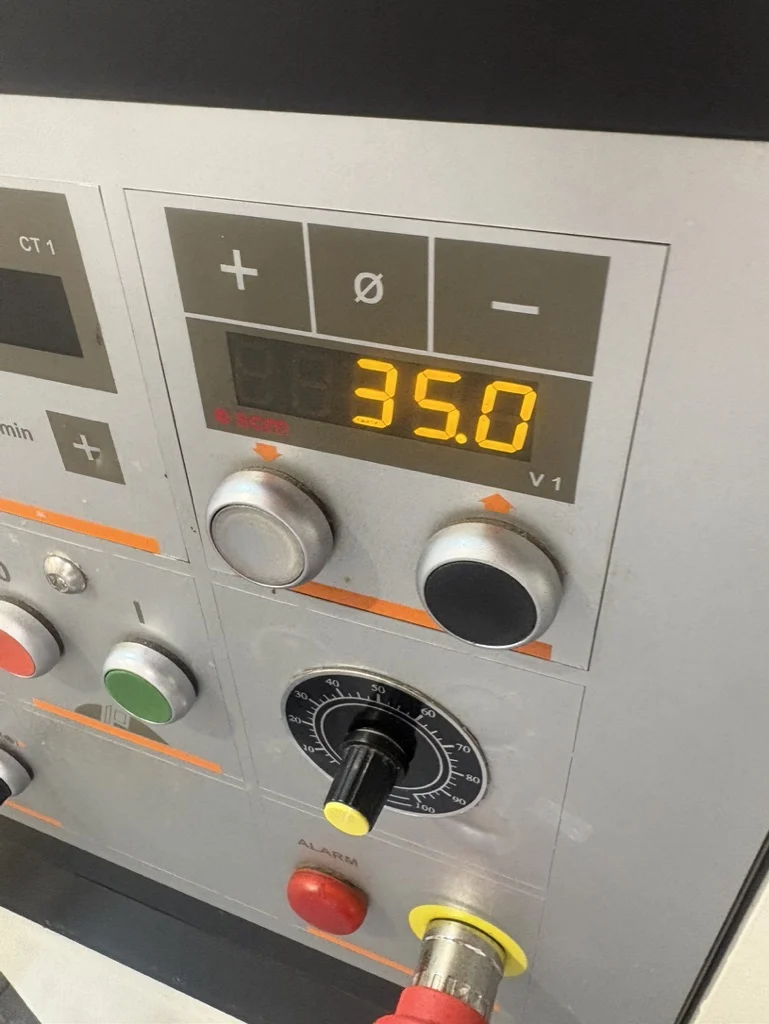

• Digital thickness readout
• Segmented pressure bar
• Rubber-coated outfeed roller
• Maximum depth of cut: around 8 mm
• Weight: approximately 1,000 kg

Overall footprint: roughly 1,400 × 1,000 × 1,200 mm
