Description

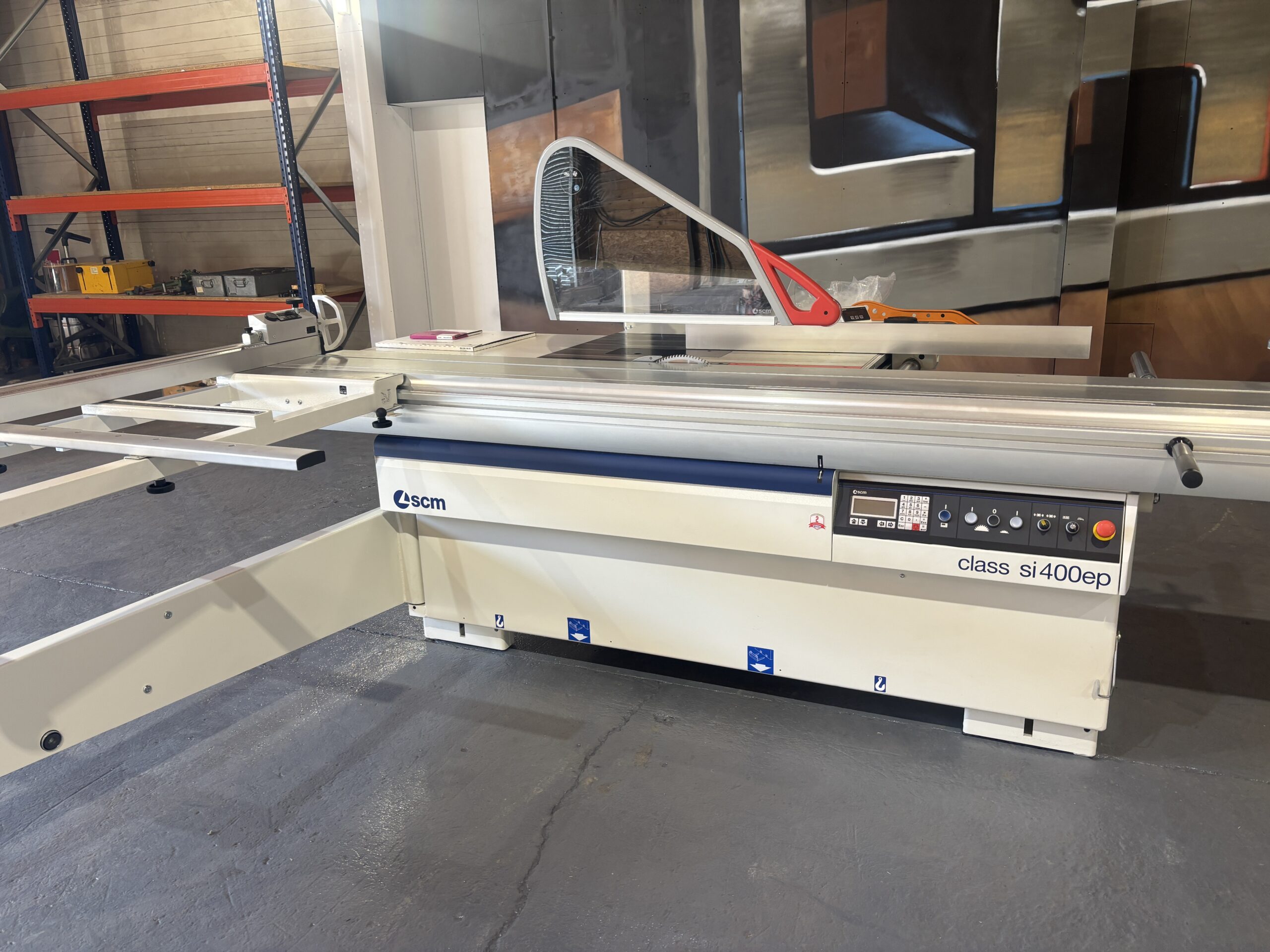

SCM Class SI 400EP

Max cutting height 140mm (97mm @45) with 400mmm blade

Main blade rpm 30009-4000-5000

Scorer 8500

Blades tilt and lift programmed

Squaring capacity 3200,,

Cutting width to right of the blade 1270mm

Dust outlet 120mm at base and 100mm on overhead guard

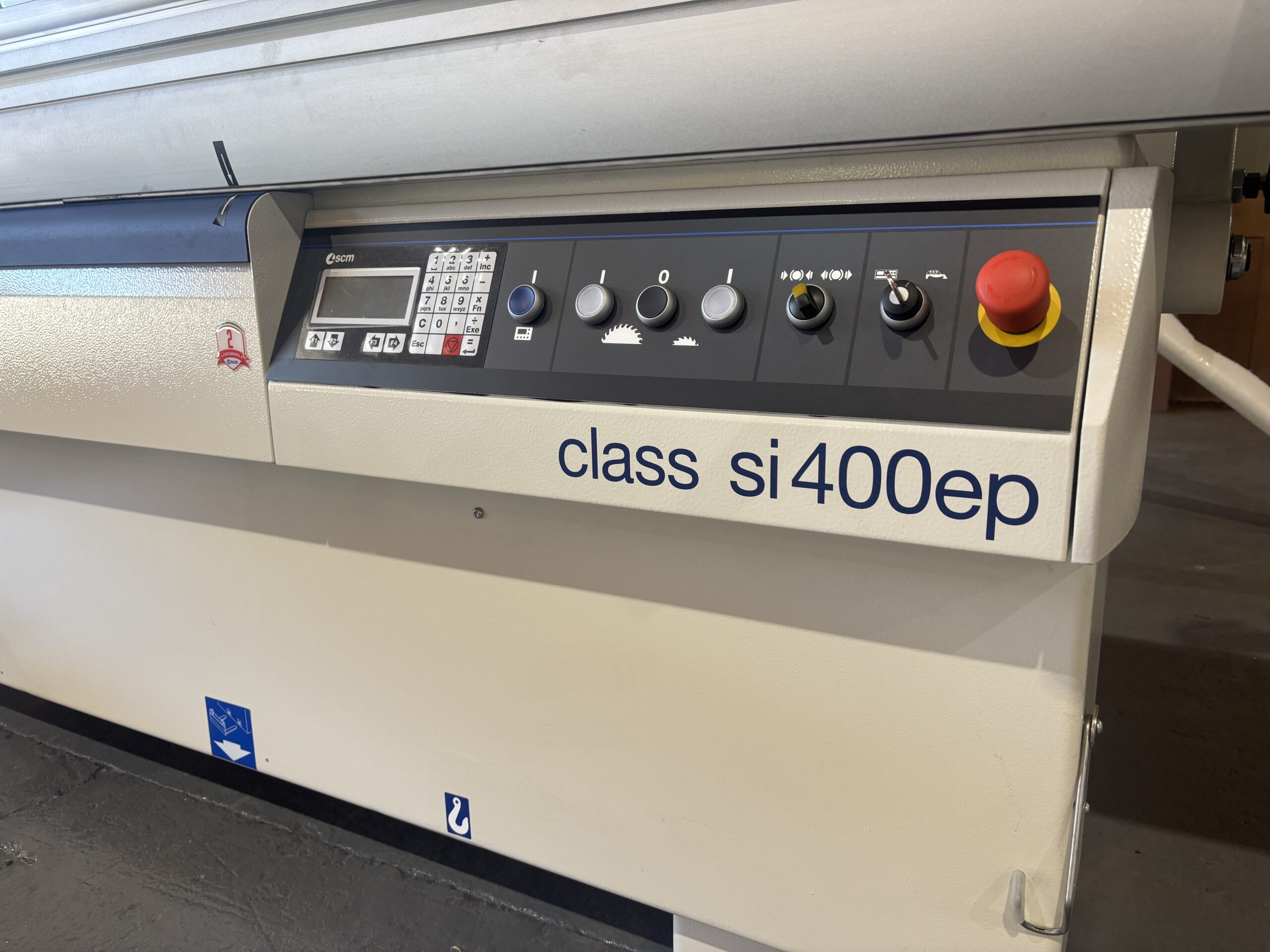

  • “READY” version – powered blade height/ tilt adjustment, tool data setting with auto height adjustment, 99 memory capacity, calculator, hour counter
  • Sliding table – Standard, 3200 mm stroke

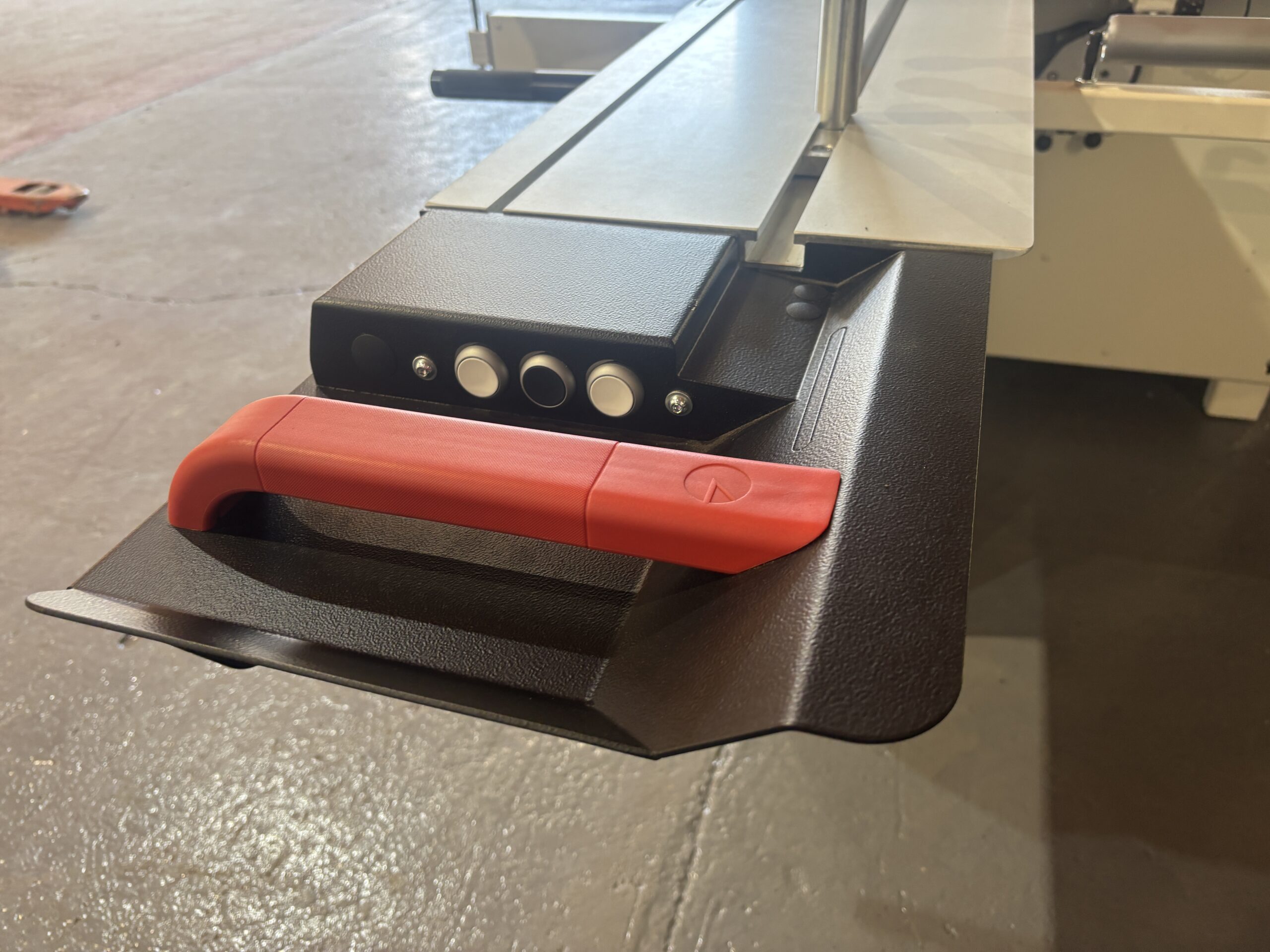

  • Extra start stop controls in the table

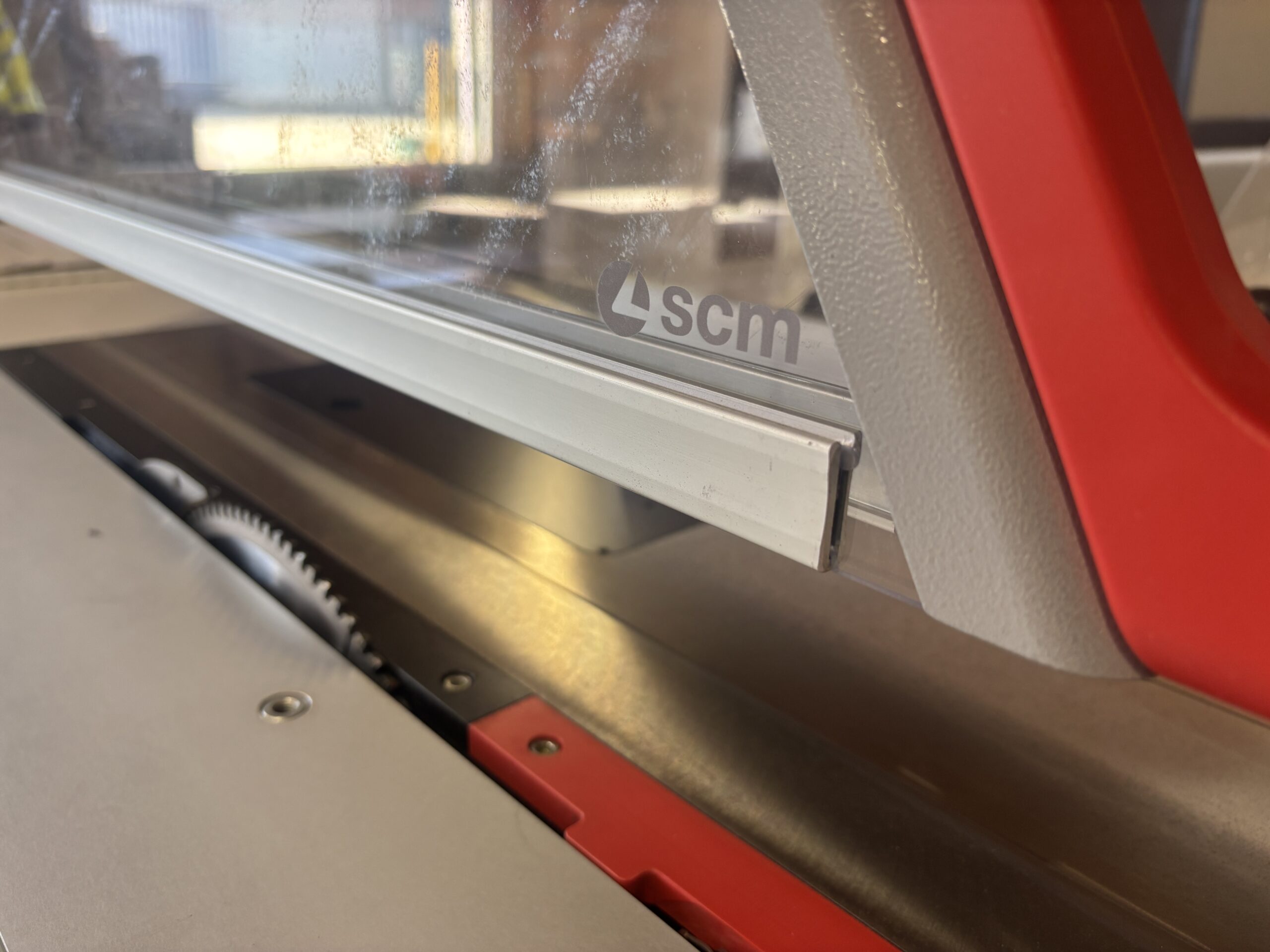

  • “Pro Lock” system for the main blade
  • Rip fence – Standard, 1270 mm capacity, manual adjustment

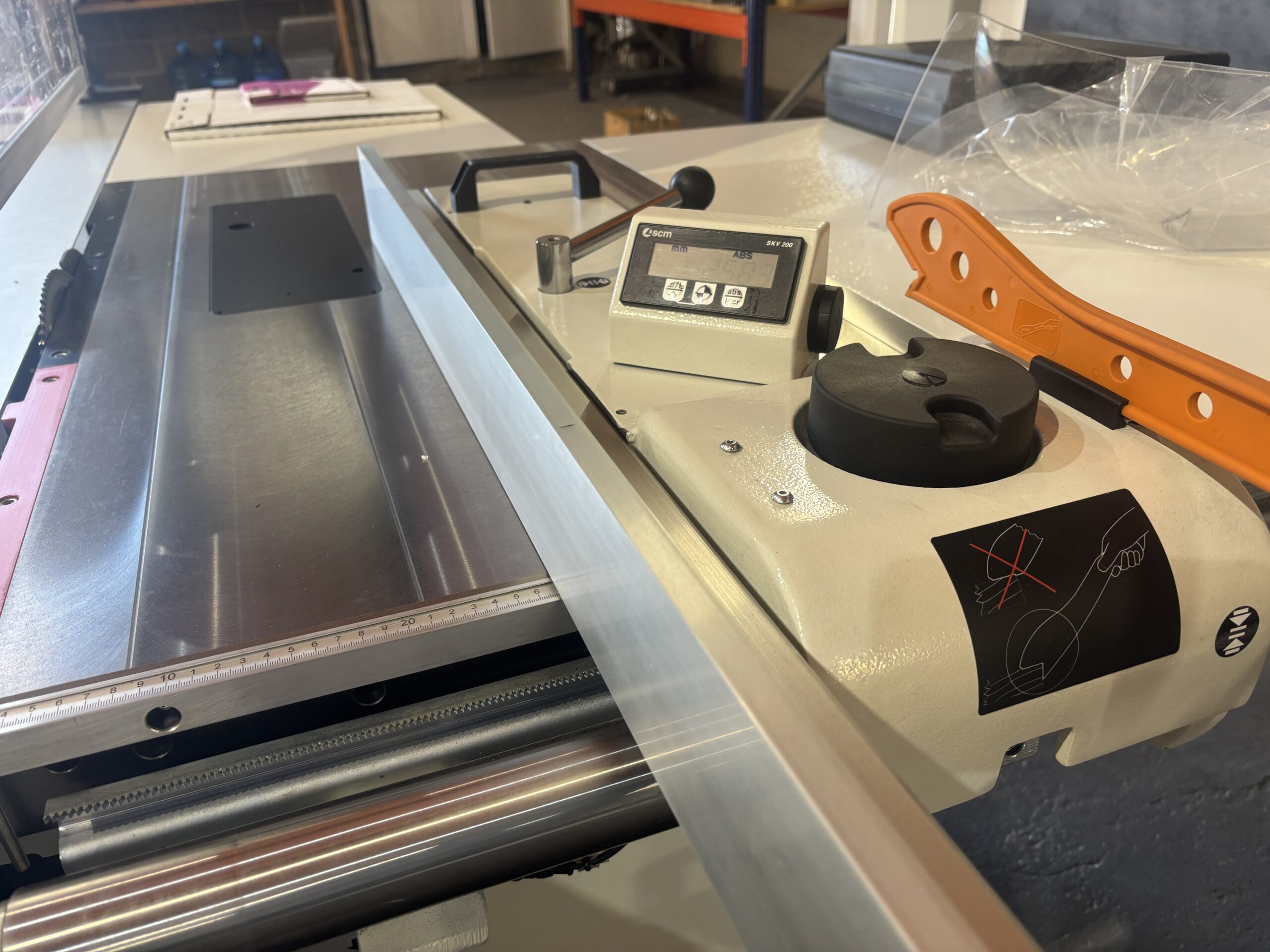

  • Digital readout – Digital readout for rip fence positioning

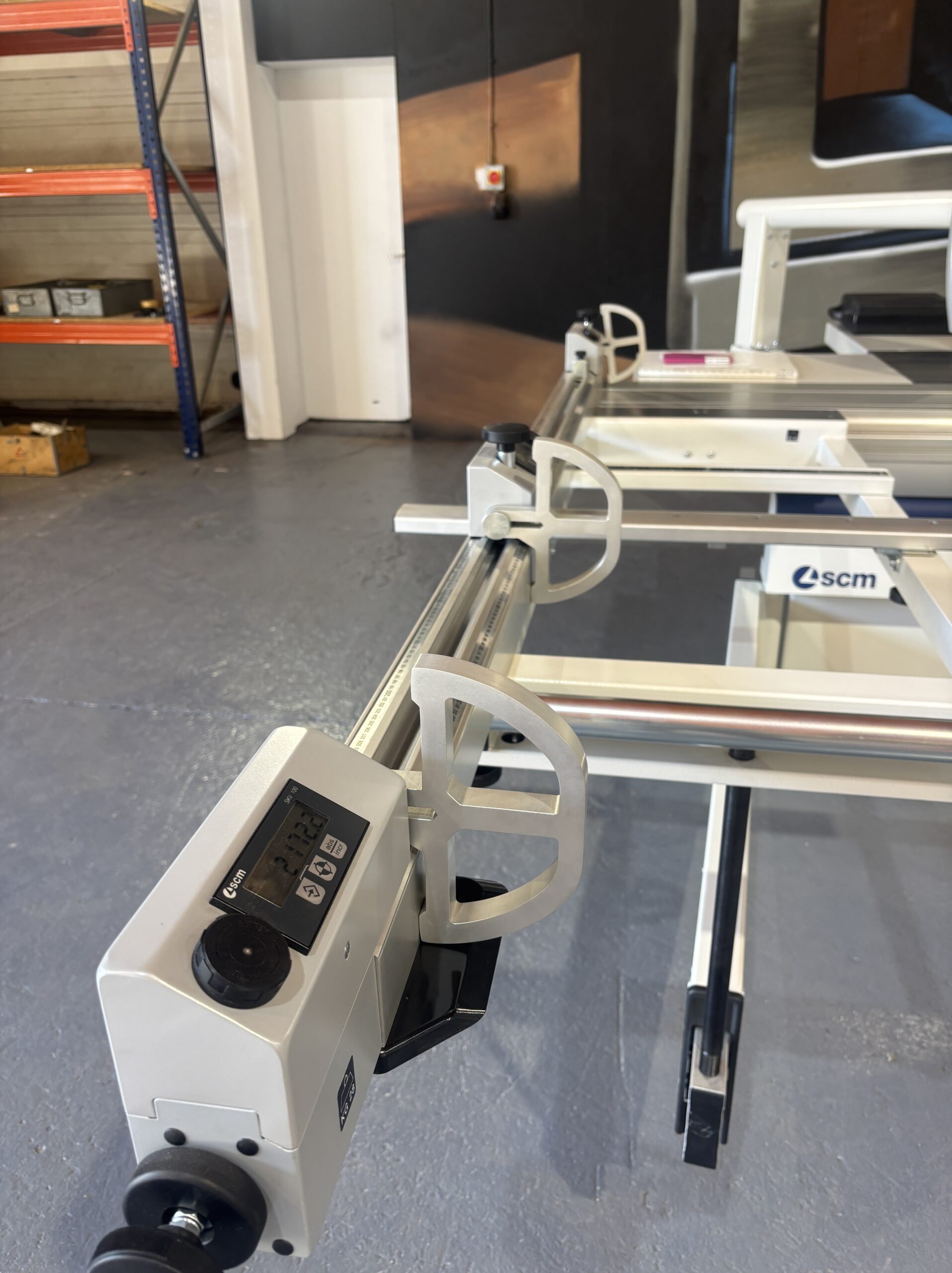

  • Digital readout – Digital readouts for 3 x crosscut stops, micrometric adjustment
  • Motor – Standard, 7 kW (9.5 HP), 3 phase
  • LED indicting scoring unit in operation

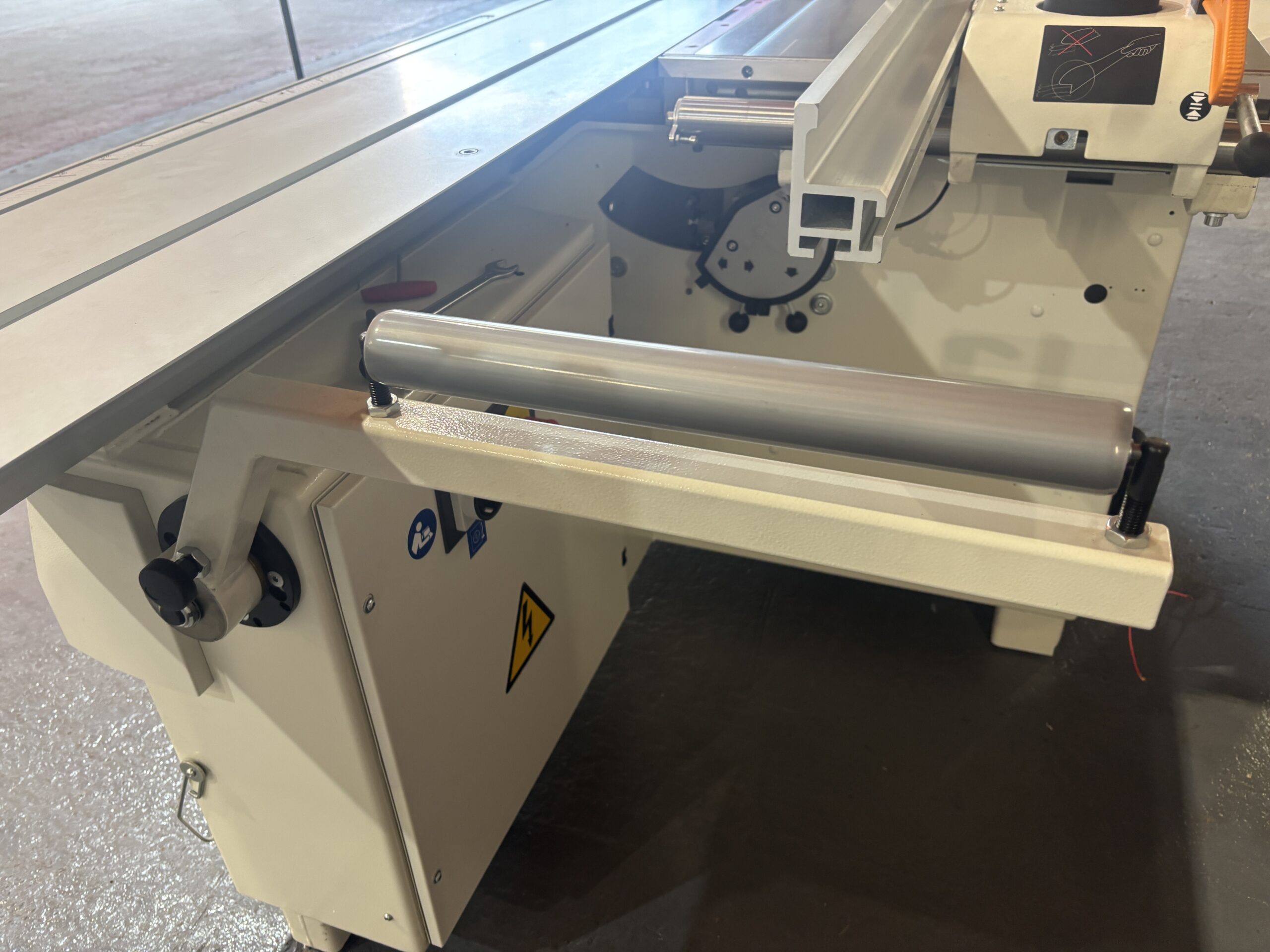

  • Extra panel support with roller on rip fence side
