Description

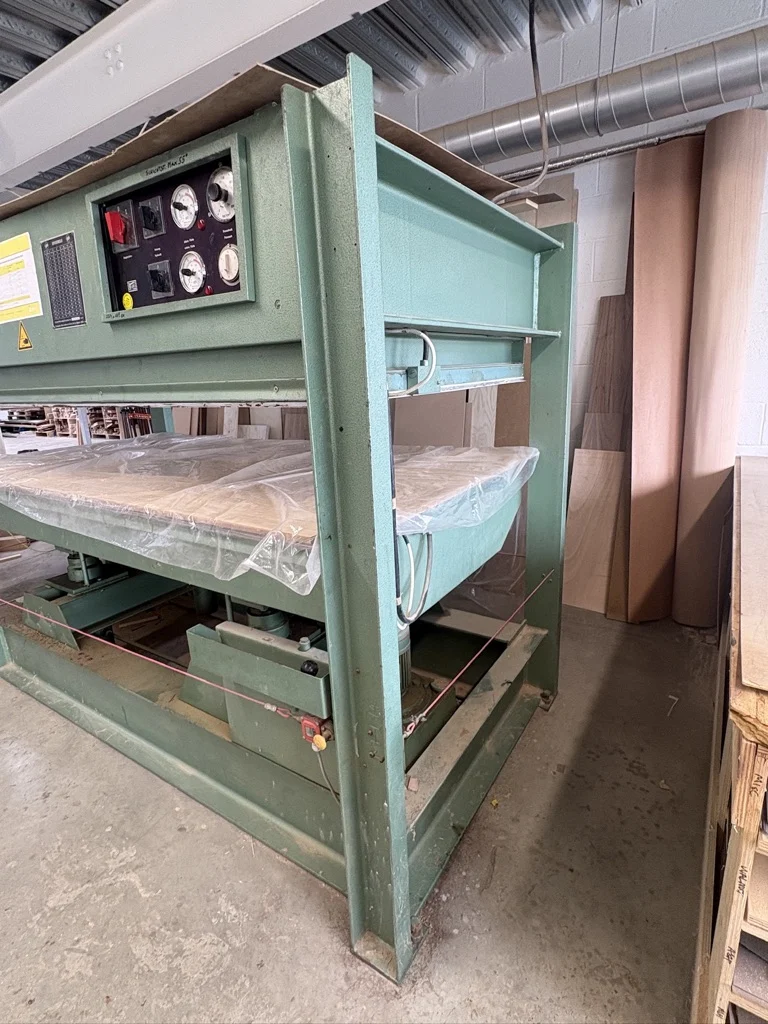

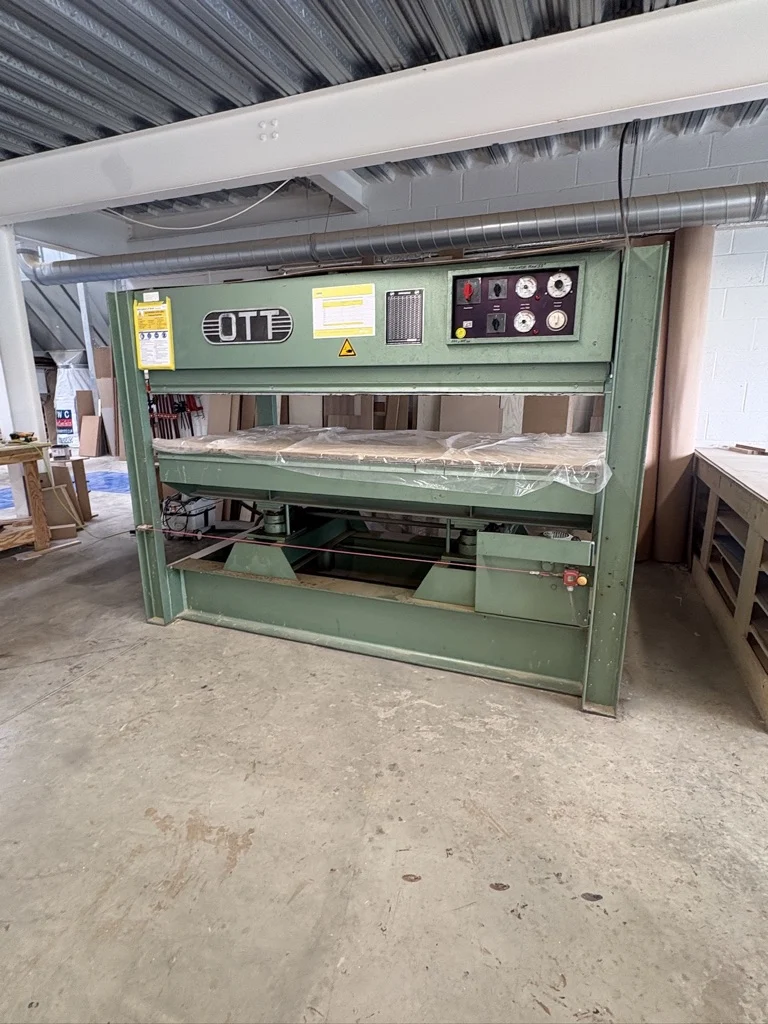

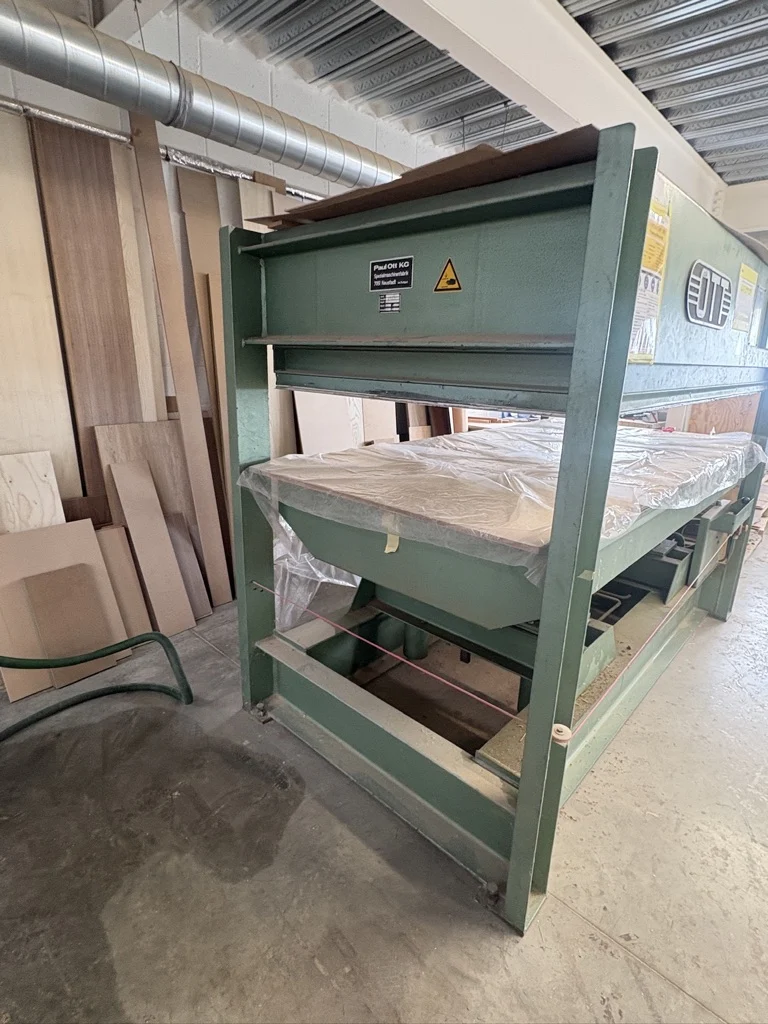

OTT JU65 Hetaed Veneer Press
pressing surface 2550 x 1200mm
electro-hydraulic system 2 plates electric heating system with each 7 kW
Compressive force 2.4 kg/cm² (63 tons)
Aluminium heating plates ( UP / DOWN )

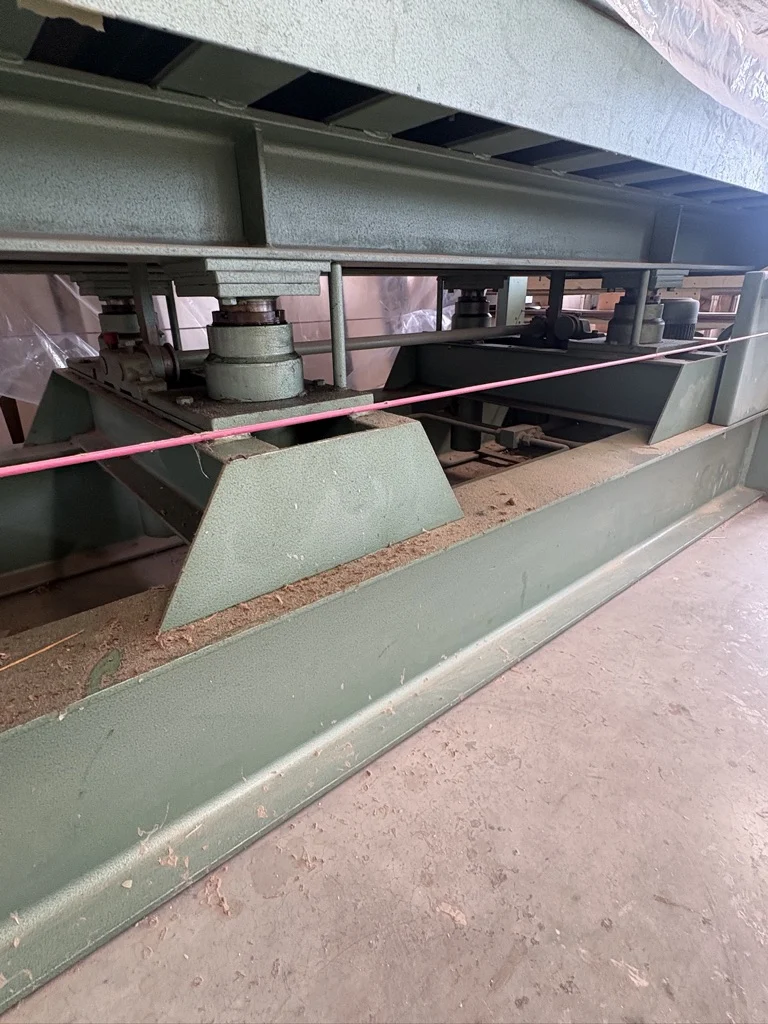

4 hydraulic cylinders diameter 85 mm (lower piston)
max opening height 415mm
Rack and pinion parallel guidance
kW 13 ( 380 V 50 Hz )
per heating plate 6.5 kW
Dimension L=2600 W= 1350 H=2000mm
Weight approx. 2500 kg
