Description

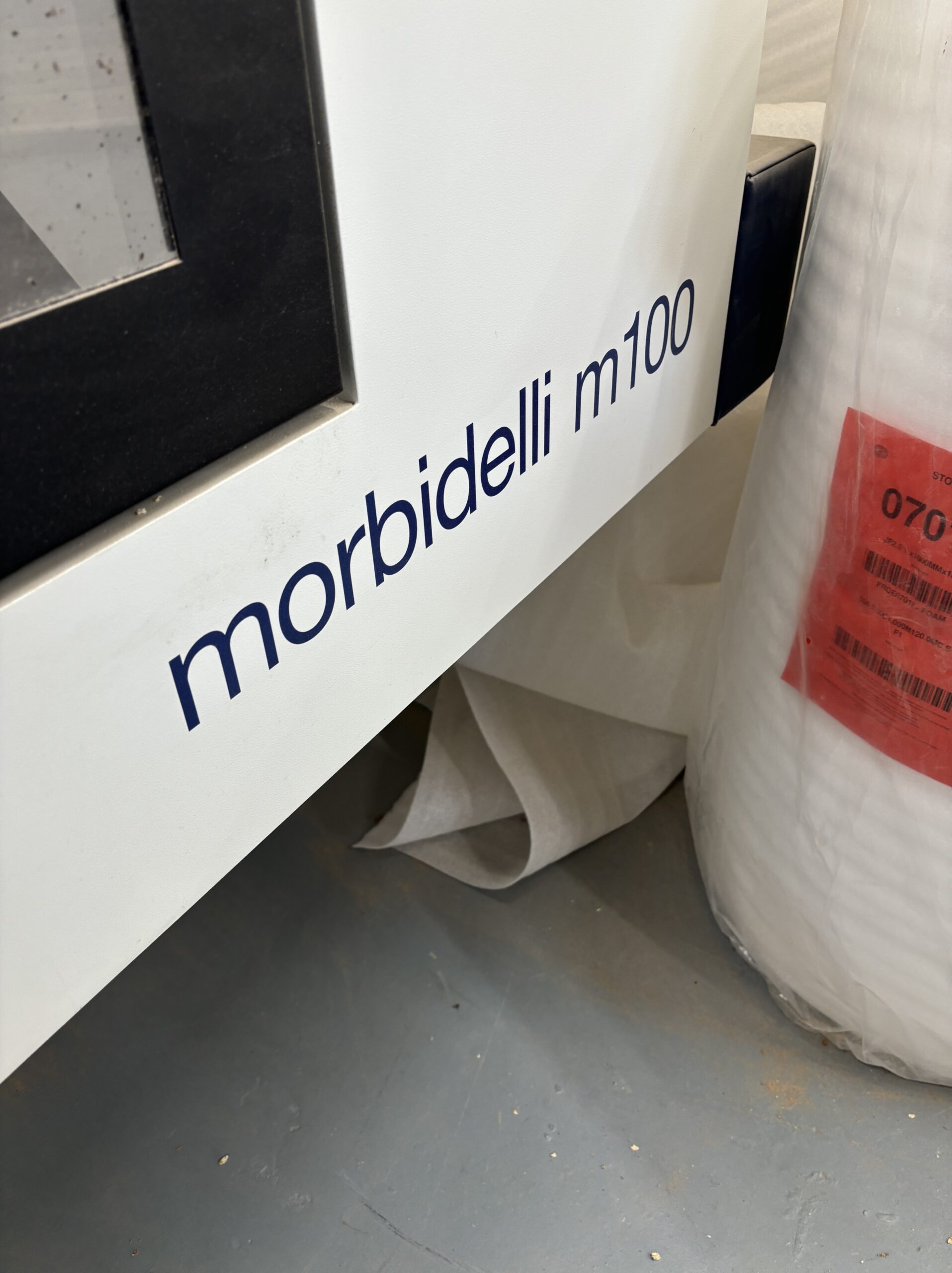

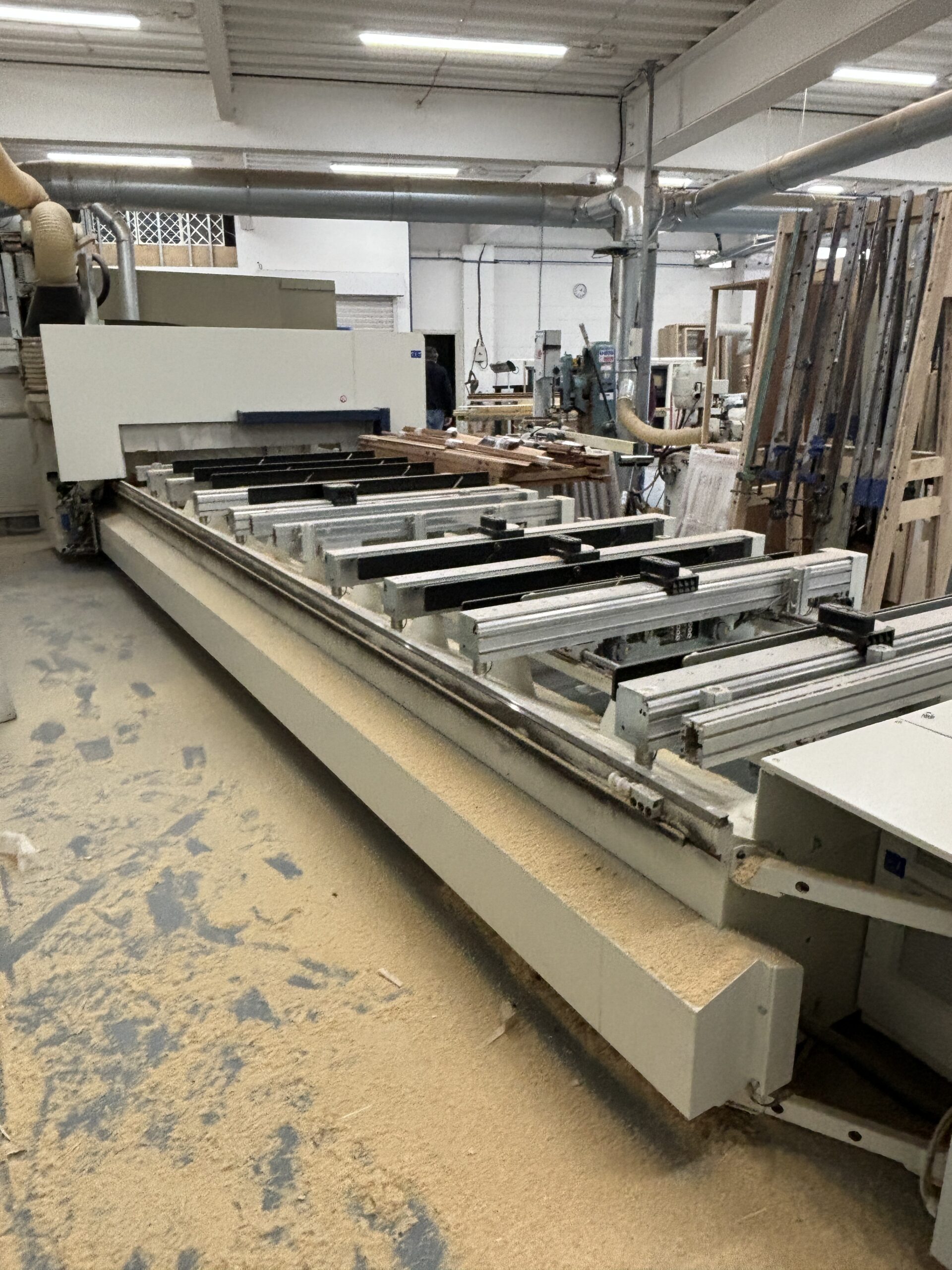

2020 Morbidelli m100 5 Axis CNC
10.11.85 | E.C standard execution | N. 1 |
R0.04.59 | morbidelli m100 5515×1620 Z180 | N. 1 |
93.07.31 | Volt 400 EU | N. 1 |
93.12.01 | Frequency 50 Hz | N. 1 |
52.45.90 | PRO-SPEED safety system | N. 1 |
63.03.73 | “TECPAD wired” remote control with 7″ touch-screen colour display | N. 1 |

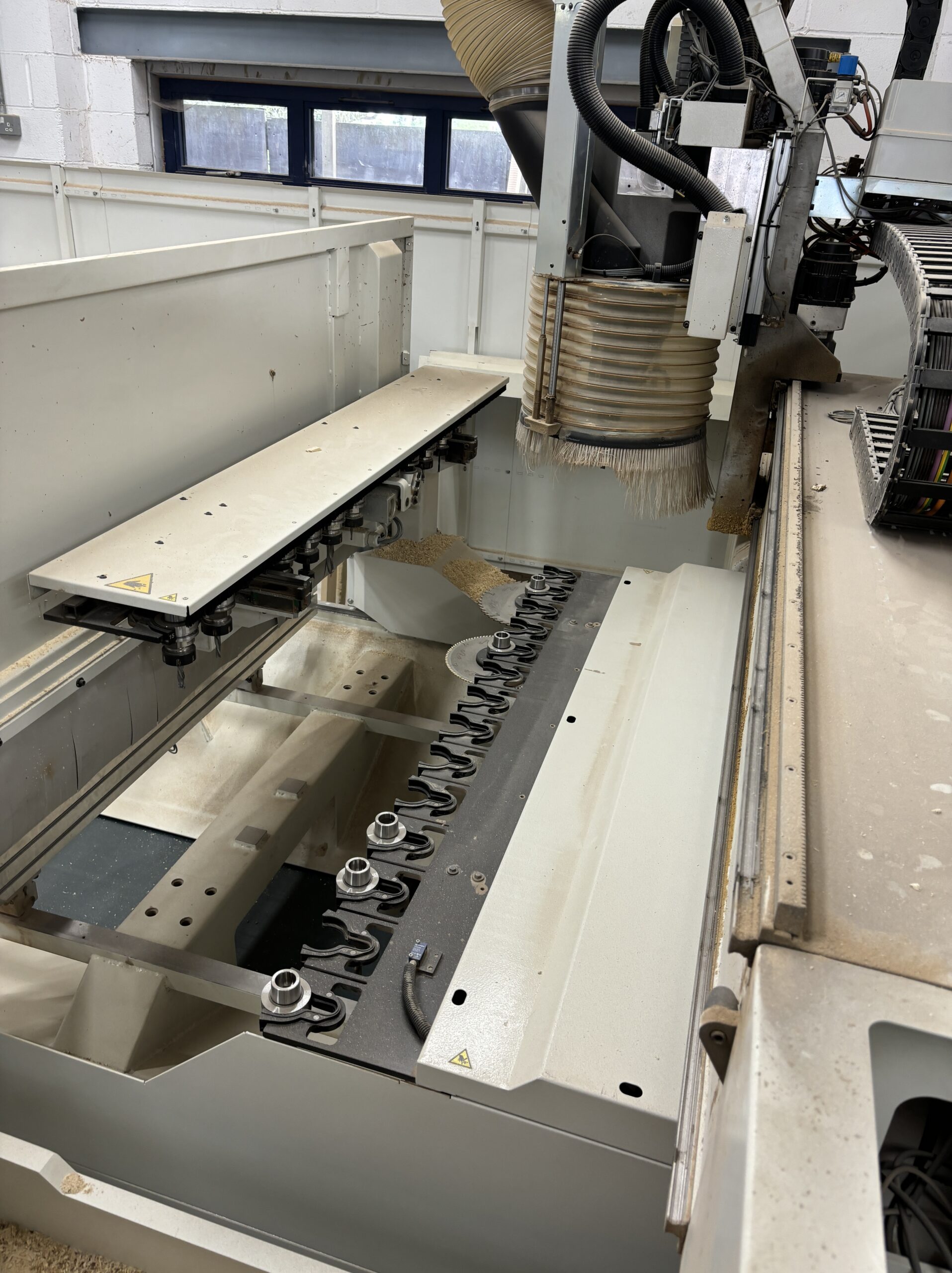

52.41.27 | TRB14 linear tool changer (Y=1620 versions) | N. 1 |

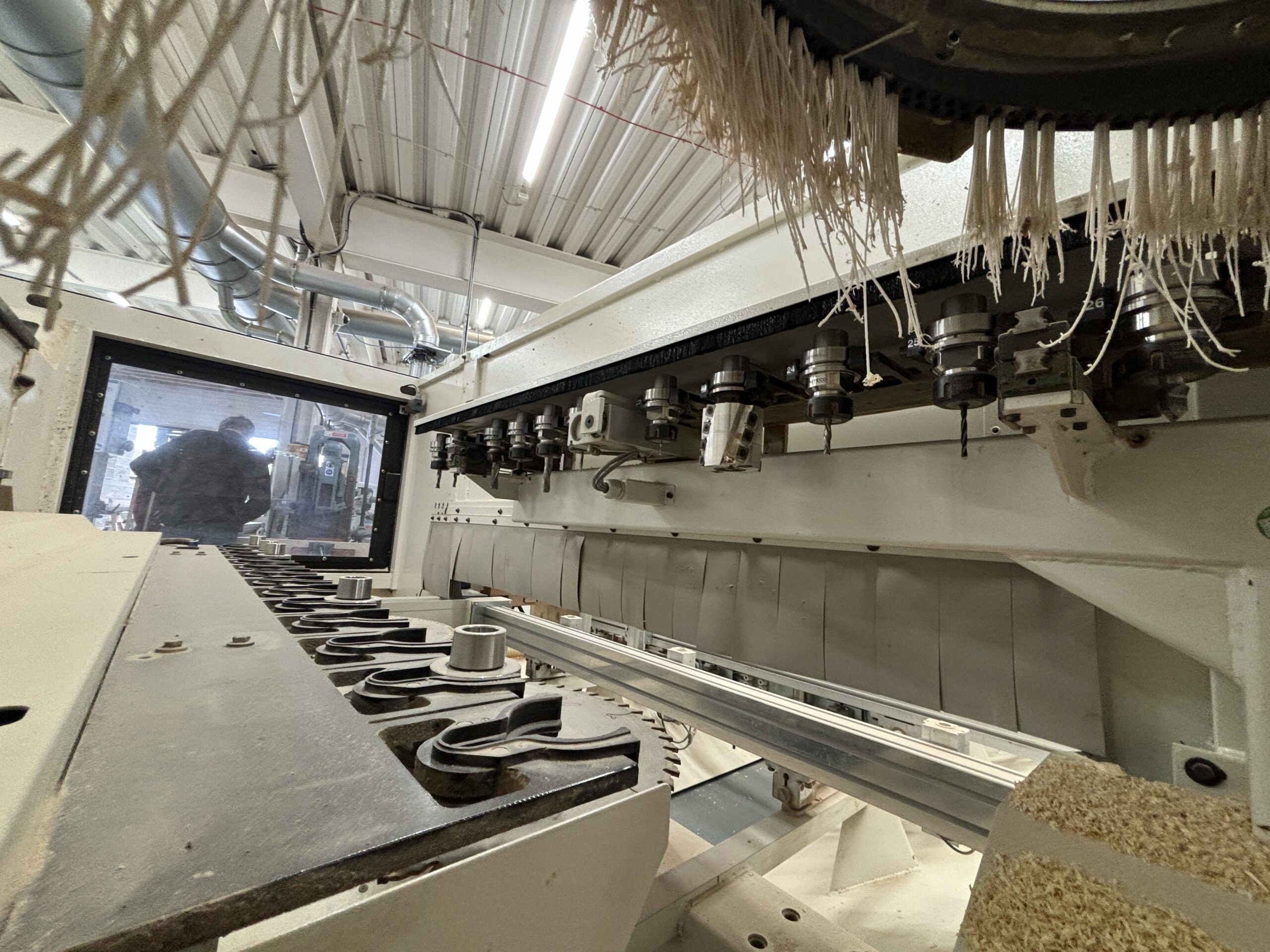

52.41.28 | FAST14 linear tool changer | N. 1 |
63.03.03 | Air blower on electrospindle | N. 1 |
63.05.24 | Guides protections, X-Y axes | N. 1 |
52.41.66 | No. 1 vacuum pump 250/300 m³/h 50/60 Hz | N. 1 |

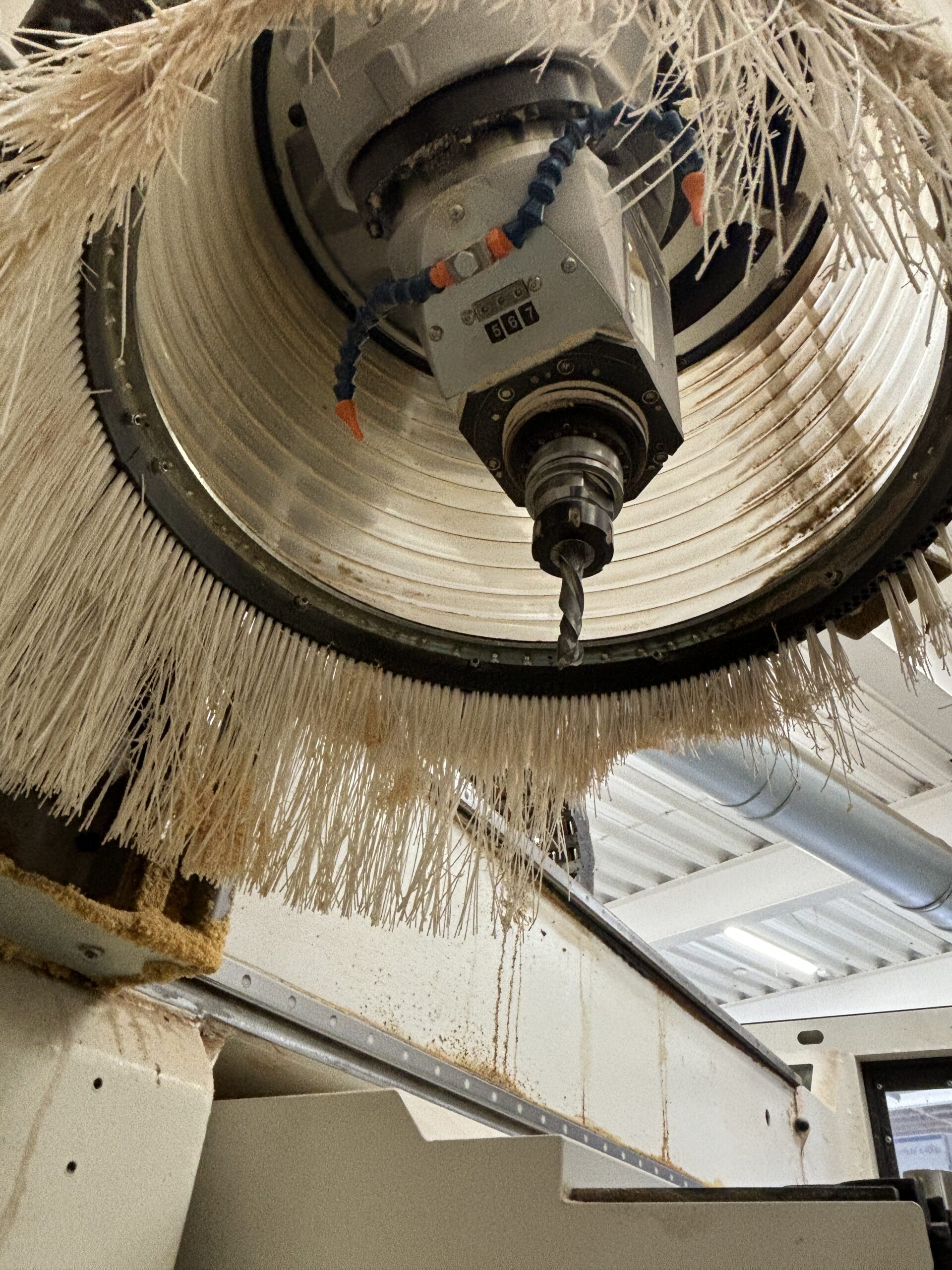

52.45.50 | 5-axis unit “JQX” version 13,5 kW | N. 1 |
Dust extraction hood for 5-axis electrospindle | N. 1 | |
Liquid cooling group (air type) | N. 1 | |

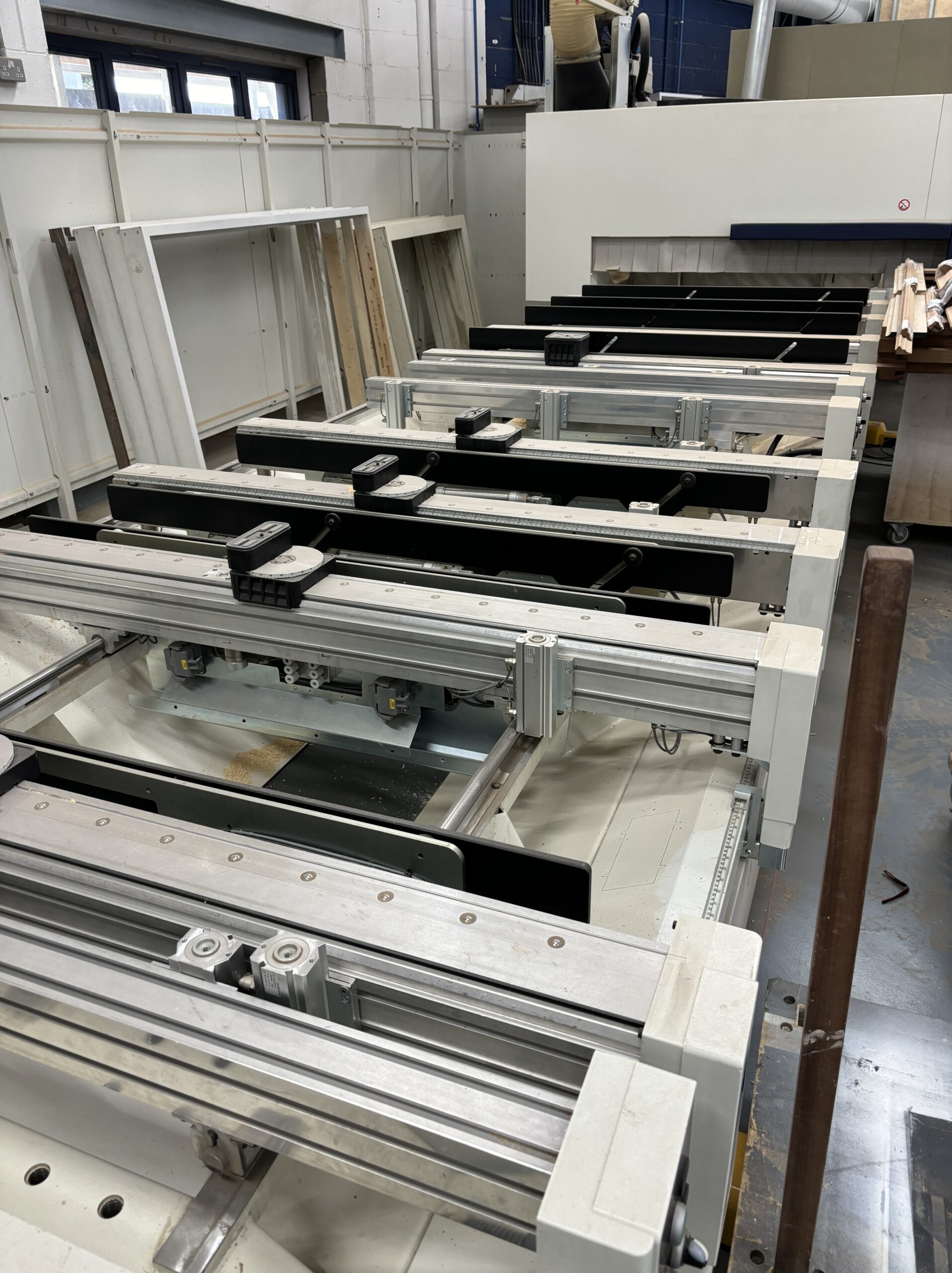

52.41.77 | N.8 rails “TV FLEX” – 1600 | N. 1 |
52.42.07 | Laser positioning device | N. 1 |

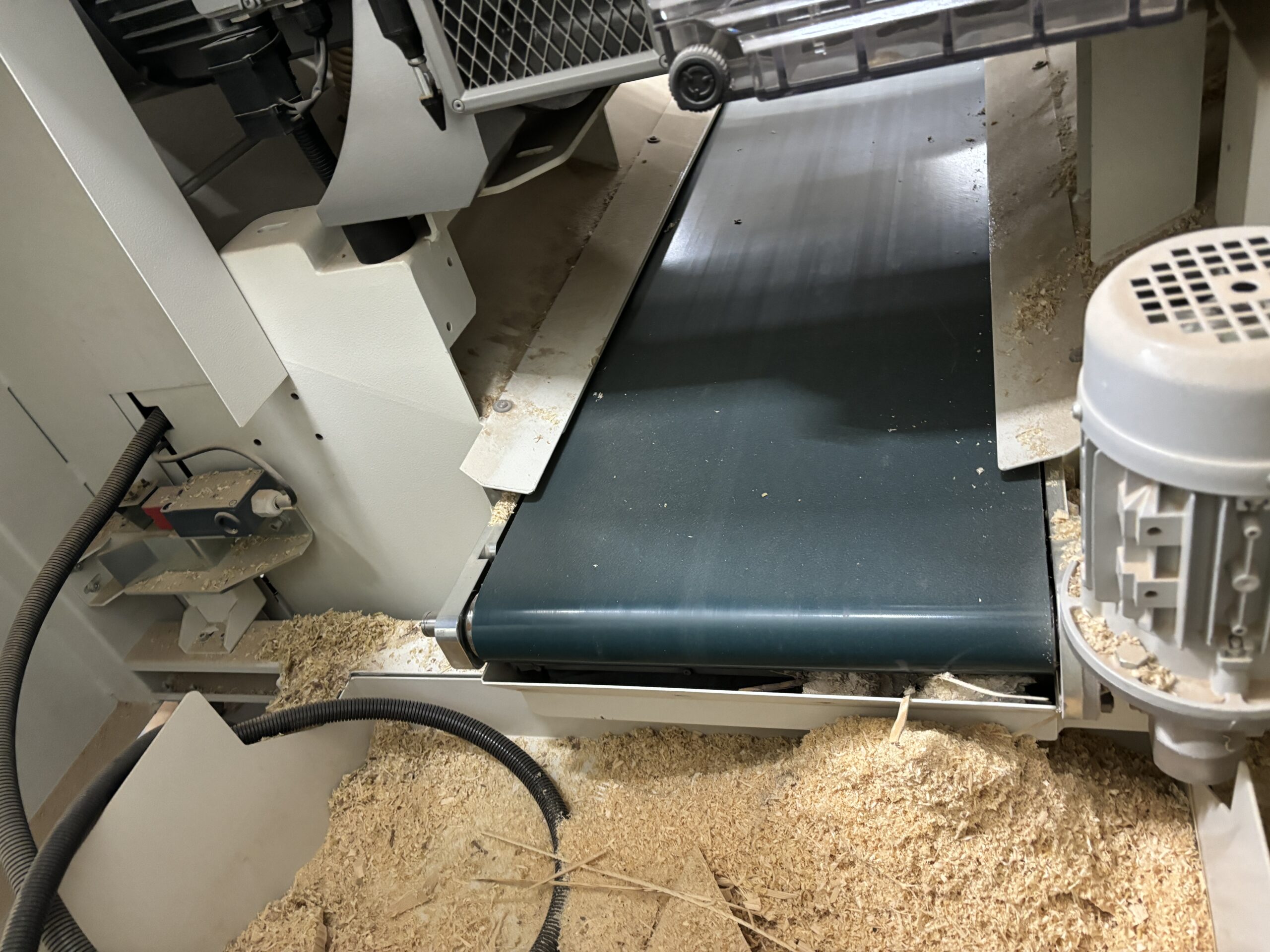

52.41.33 | Shaving expulsion mat for X=5510mm | N. 1 |
Removable shavings container positioned at the end of the base | N. 1 | |
63.03.54 | Tool length detection device | N. 1 |
52.22.87 | Panel thickness detection device | N. 1 |
52.41.82 | N.8 lifting devices H=75 – 1600 | N. 1 |
51.41.45 | Double removable central reference support with 6 stops H=75 | N. 1 |
52.41.50 | Fixed pod 145×145 H=75 mm | N. 16 |
52.41.51 | Rotating pod 145×55 H=75 mm | N. 16 |
52.19.90 | Pre-arrangement for clamping devices for 8 rails TV FLEX / TV FLEXDRIVE / TV FLEXMATIC | N. 1 |
52.02.66 | MULTIGRIP 90 round clamp (H83) for TV FLEX /TV FLEXMATIC | N. 8 |
52.02.70 | Maestro connect: 1-year subscription service (kit Gateway “plug&play” included) | N. 1 |
SCM DIGITAL SOLUTIONS: MAESTRO CONNECT | N. 1 | |
MAESTRO ACTIVE Human-Machine interface software (HMI) | N. 1 | |
Maestro cnc programming software | N. 1 | |
Hardware key for Maestro cnc | N. 1 | |
52.43.09 | Advanced Maestro 3D module | N. 1 |
63.03.59 | Additional key for Maestro cnc (USB port) | N. 1 |
Windows 10 embedded 64 bit operating system | N. 1 | |

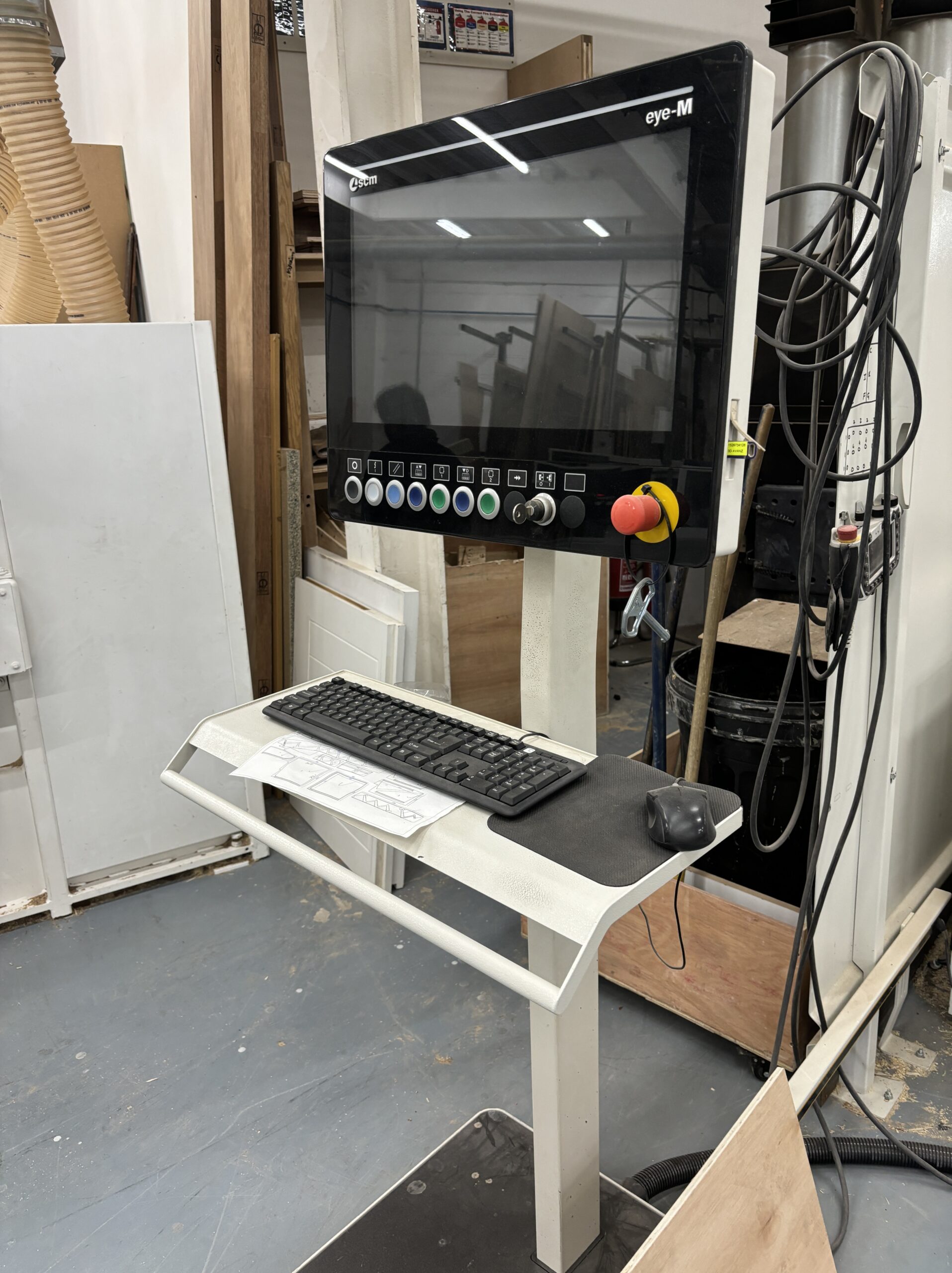

Console with integrated PC “eye-M PRO” | N. 1 | |
OF.02.99 | TELESOLVE teleservice via internet | N. 1 |
Cables length of the mobile control panel 6,5 meters | N. 1 | |
S-N-D 3-position selector | N. 1 | |
52.90.78 | HSK63F right tool-holder for collets (ER32) from 3 to 20 mm (collet excluded) | N. 28 |
52.08.16 | ER32 spring collet for tool locking, 16mm diameter | N. 6 |
08.32.08 | Wood blocks | N. 1 |
10.99.91 | Machine language: ENGLISH | N. 1 |
