SEDGWICK TESH 3 Head Tenoner, 3 Phase **NOW SOLD**

SEDGWICK TESH 3 Head Tenoner, 3 Phase **NOW SOLD**

£3,950.00

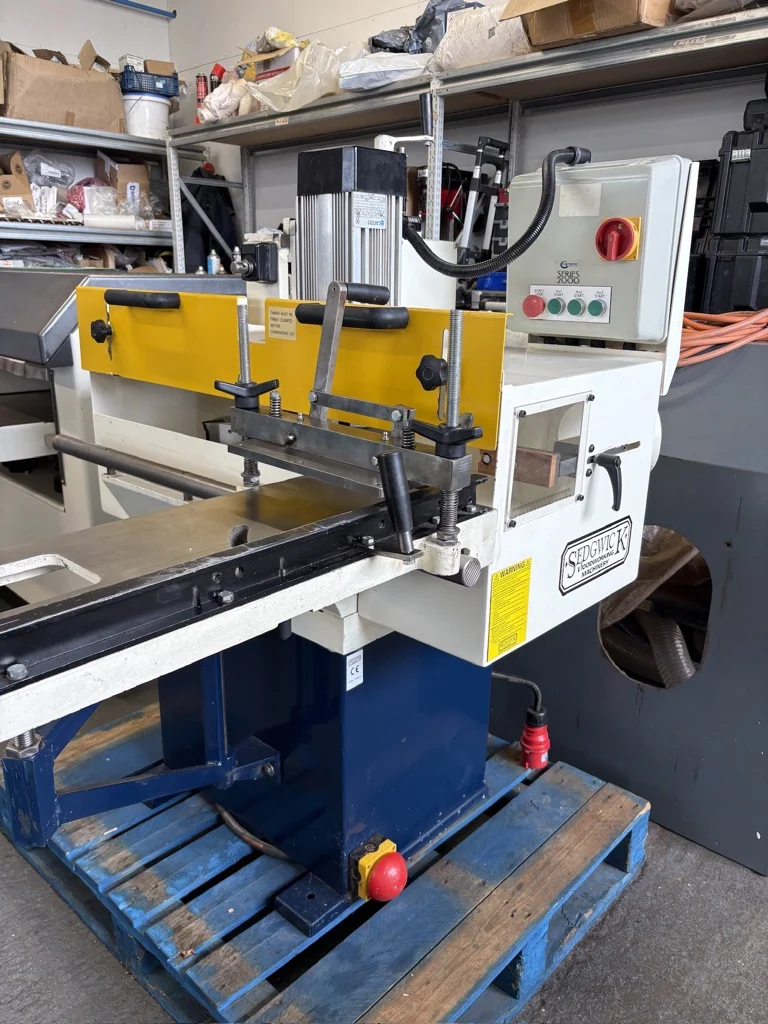

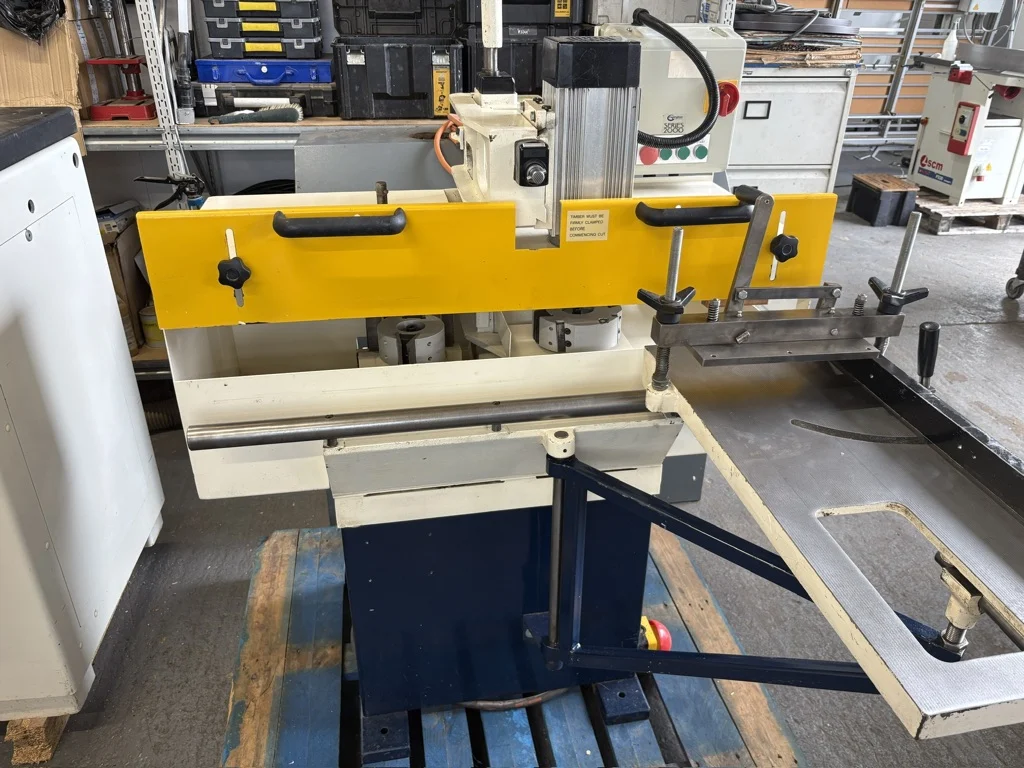

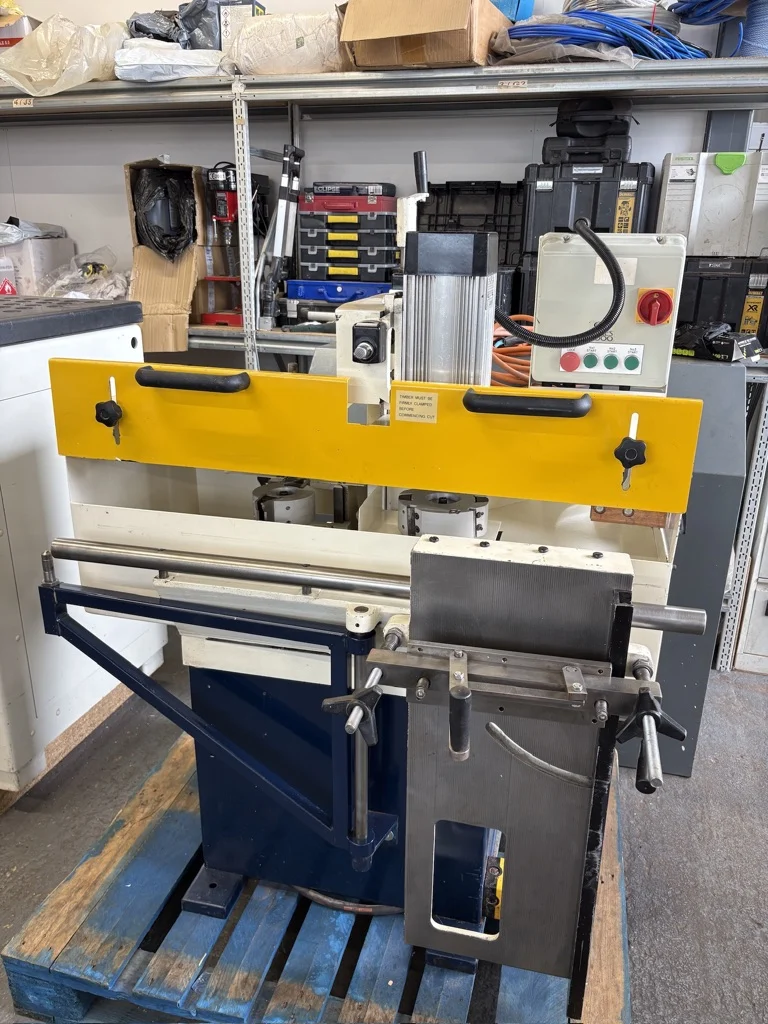

Sedgwick TESH 3 head tenoner

MOTOR RATING 2 x 2.2kw
OPTIONAL SCRIBING HEAD,  3ph 4.0Kw (5.5hp)
TIMBER CAPACITY 130mm x 310mm
TIMBER CAPACITY WITH FENCE AT 45 DEG. 130mm x 195mm
MAXIMUM LENGTH OF TENON 155m
MAX. LENGTH OF TENON – 2 PASSES 205mm
VERTICAL ADJUSTMENT OF BOTTOM CUTTER BLOCK 0 TO 60mm
VERTICAL ADJUSTMENT OF TOP CUTTER BLOCK 0 TO 120mm
HORIZONTAL ADJUSTMENT OF TOP CUTTER BLOCK ±32mm
TABLE SIZE 800mm x 310mm
TABLE WORKING HEIGHT 860mm

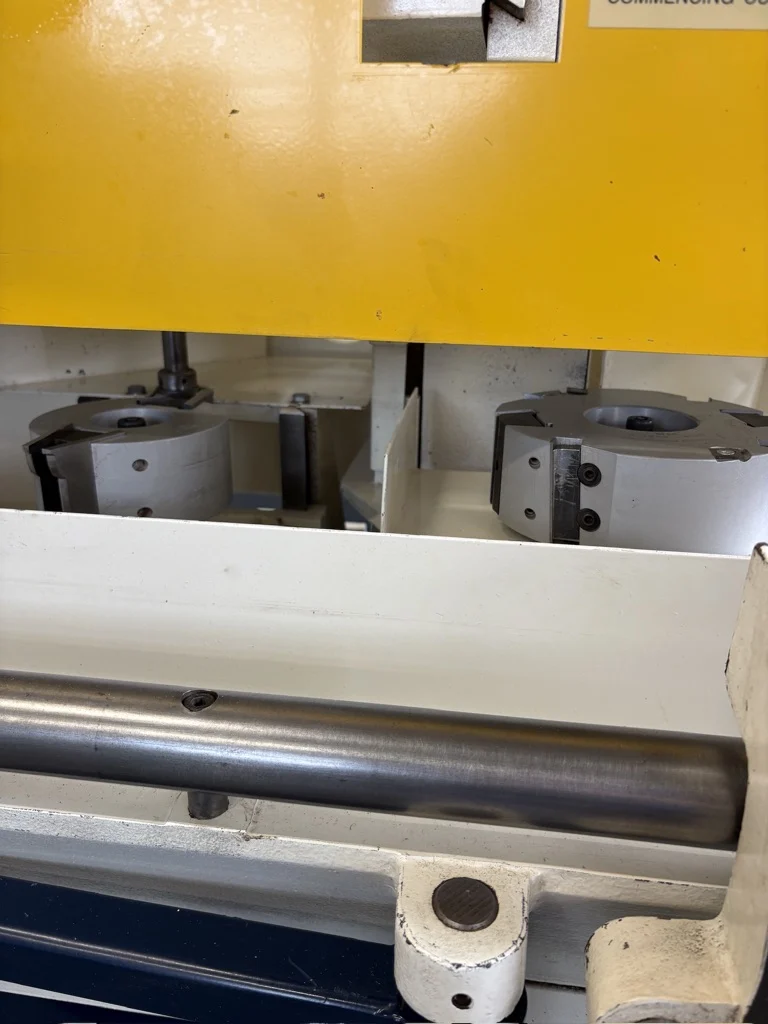

MAIN CUTTER HEADS* 2 x 175 x 60mm
*Each with 4 shear cut replaceable knives and 2 spur cutters.
Provision for 2 scribing cutters and chip limiters is provided in both the top
and the bottom heads.
EXTRACTION OUTLETS 2x 150mm (REQ.2800cmh)
Scribing head:
SHAFT DIAMETER 30mm (end-tapped M12; 8mm keyway)
EFFECTIVE LENGTH OF SHAFT 75mm
VERTICAL MOVEMENT 95mm
HORIZONTAL MOVEMENT 30mm
MAXIMUM DIAMETER OF TOOLING 210mm
SHIPPING DETAILS
DIMENSIONS – L x W x H 1220 x 920 x 1350mm
TESH : 350kg
