Description

Available to order

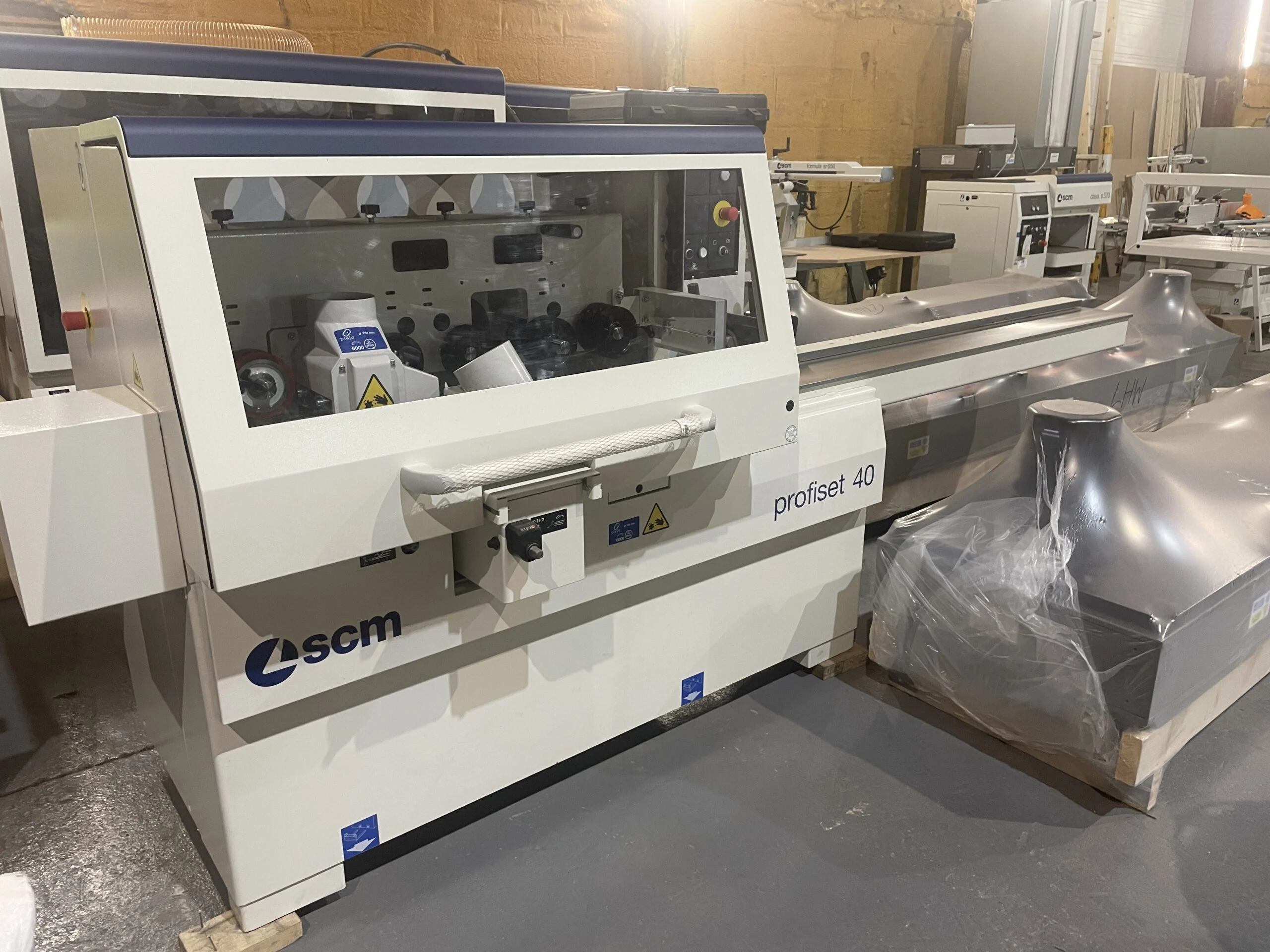

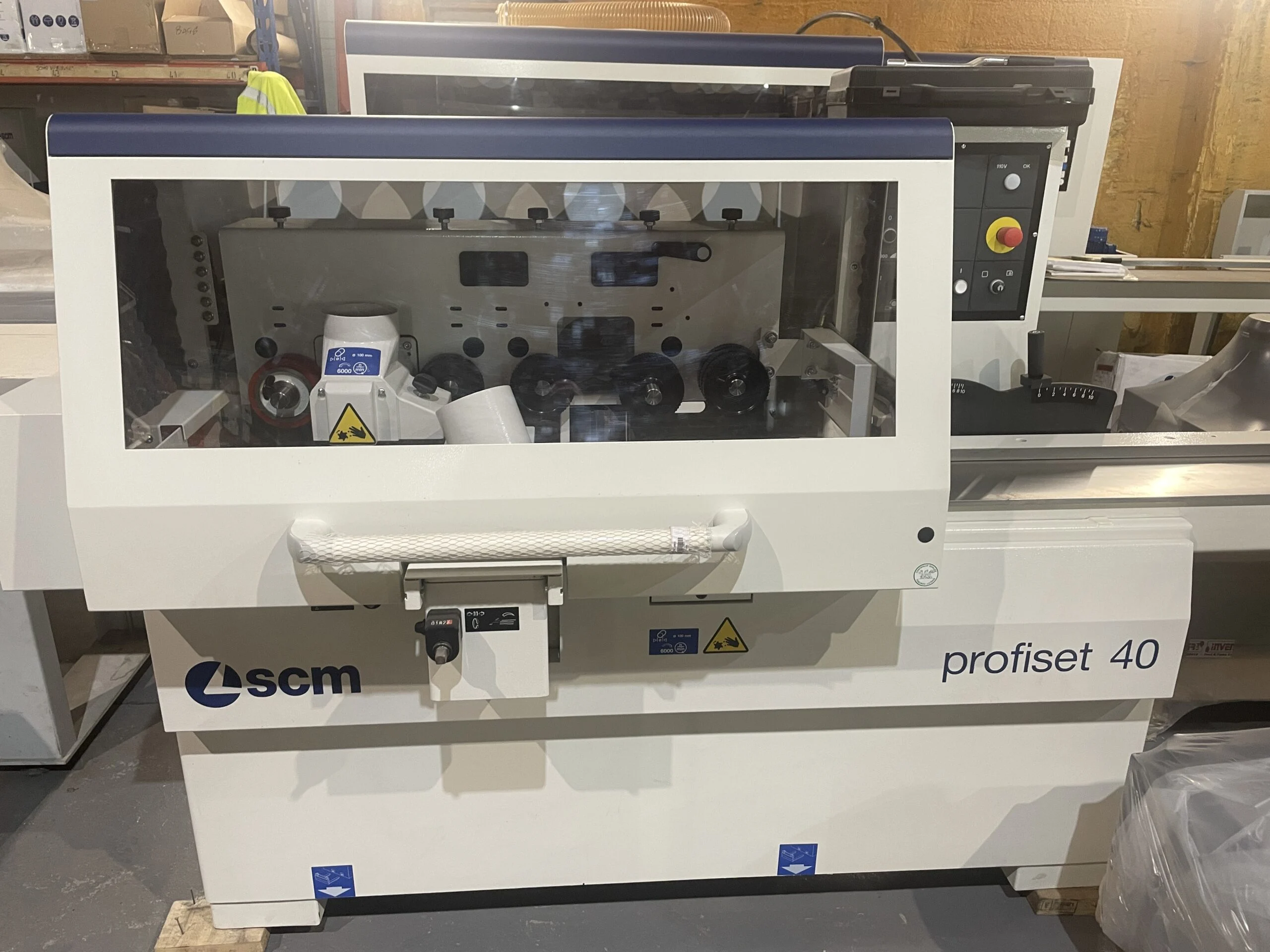

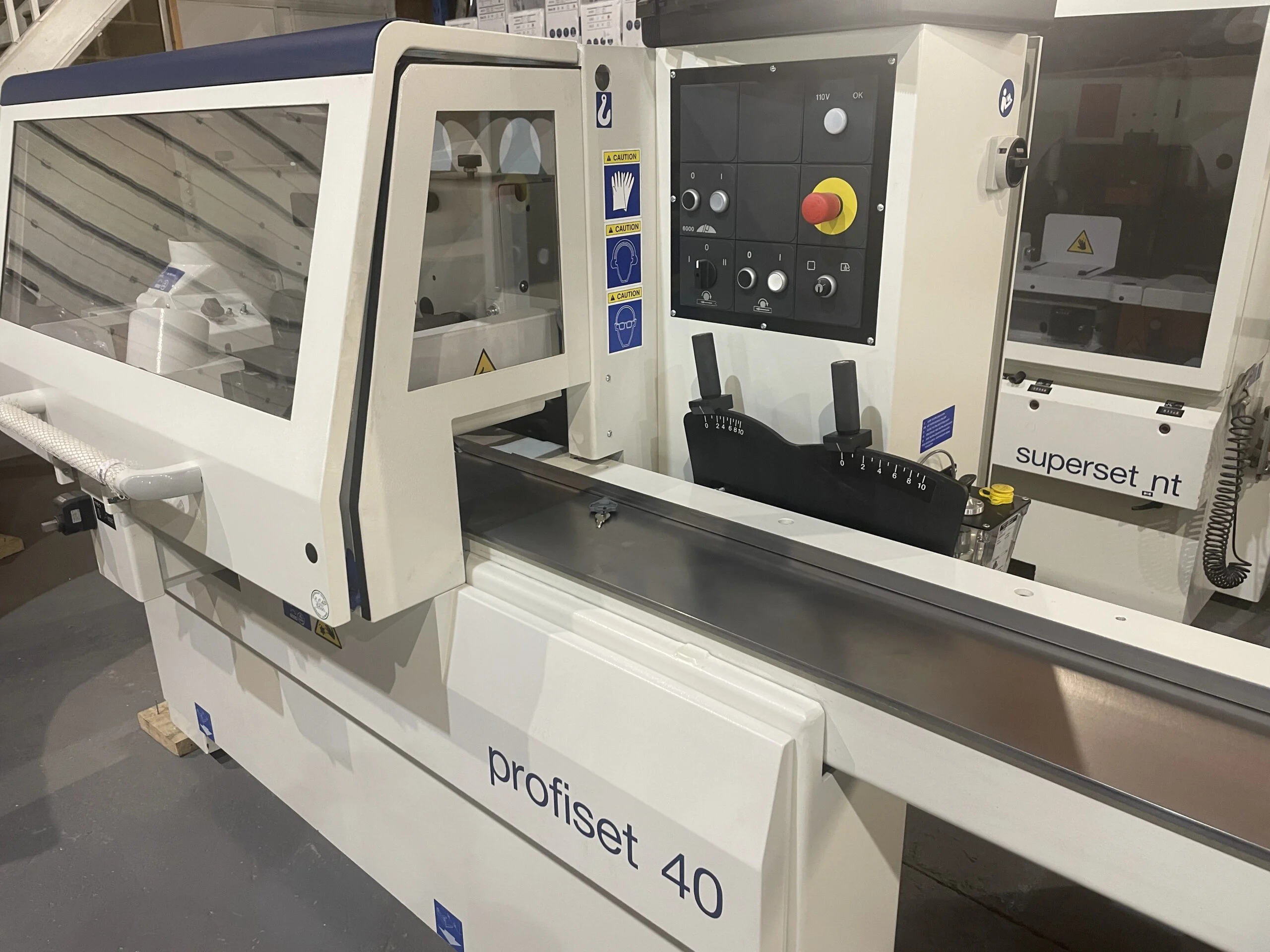

SCM Profiset 40 four sided planer

Fitted with the following extras:

  • 2300mm infeed table
  • Powered group
  • Tersa cutter blocks

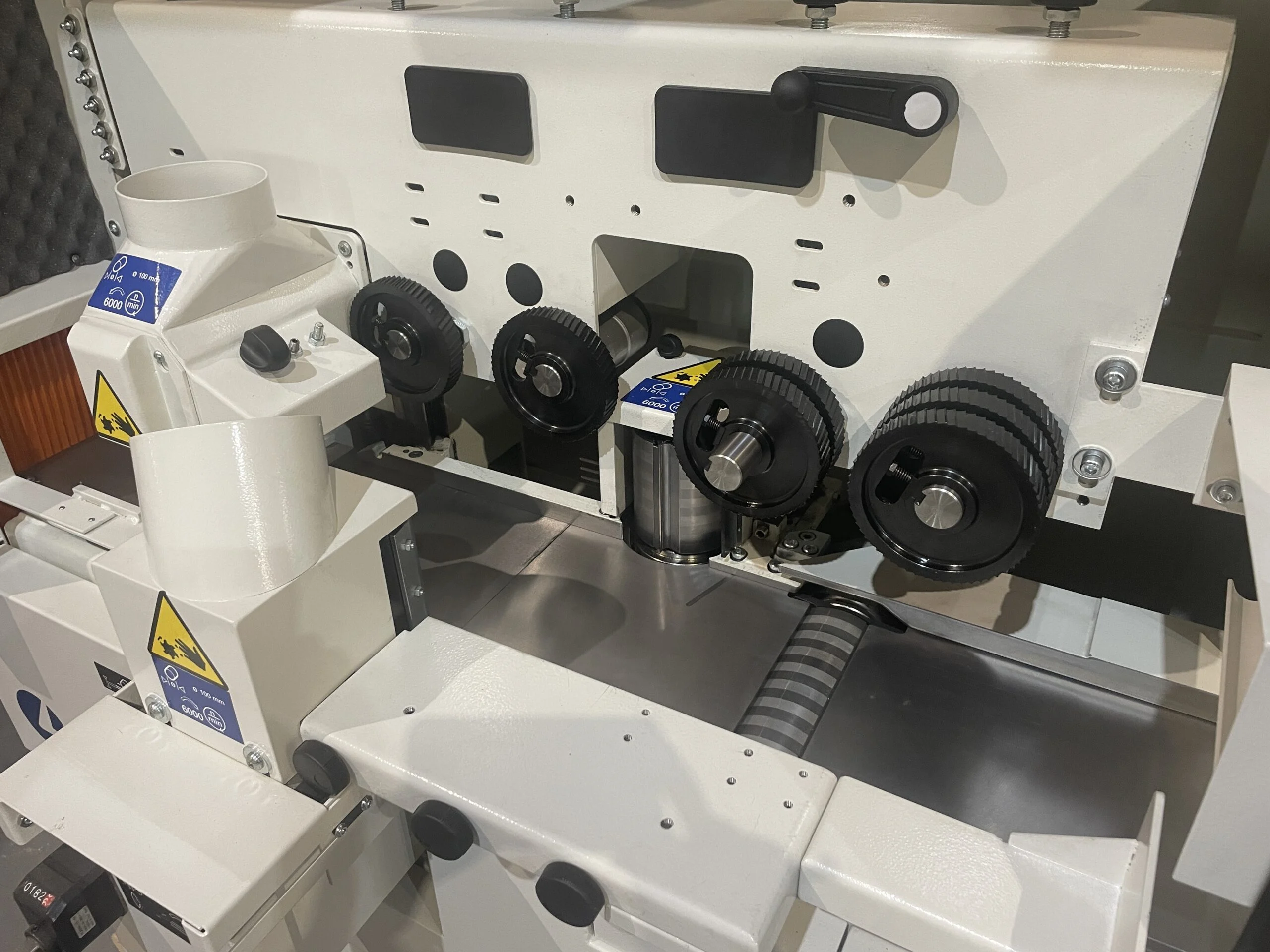

  • Powered feeding group before first bottom spindle with lever for exclusion, equipped with 2 rollers

General Specification:

  • Spindle configurations 4 head
  • Working width 23 – 180 mm
  • Working height 10 – 105 mm
  • Feed speed 6 – 12 m/min
  • Spindle speed 6000 rpm
  • Spindle diameter 35 mm
  • Horizontal spindles motor power (single) 7.5 kW (10 HP)
  • Vertical spindles motor power (single) 7.5 kW (10 HP)
  • Infeed worktable length 1700 mm
  • Extraction outlet(s) 4 x 120 mm
  • Power 3 phase
