Description

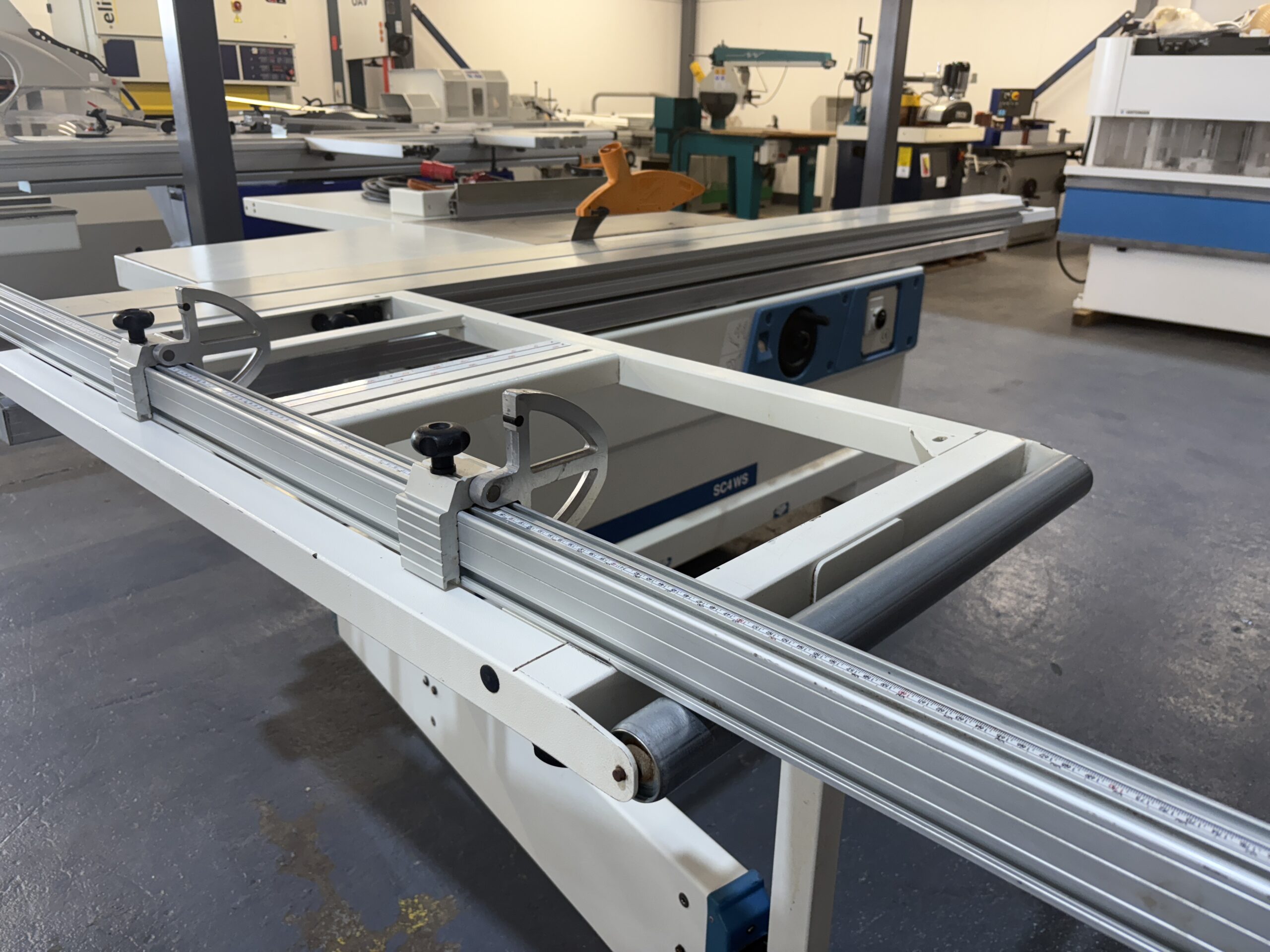

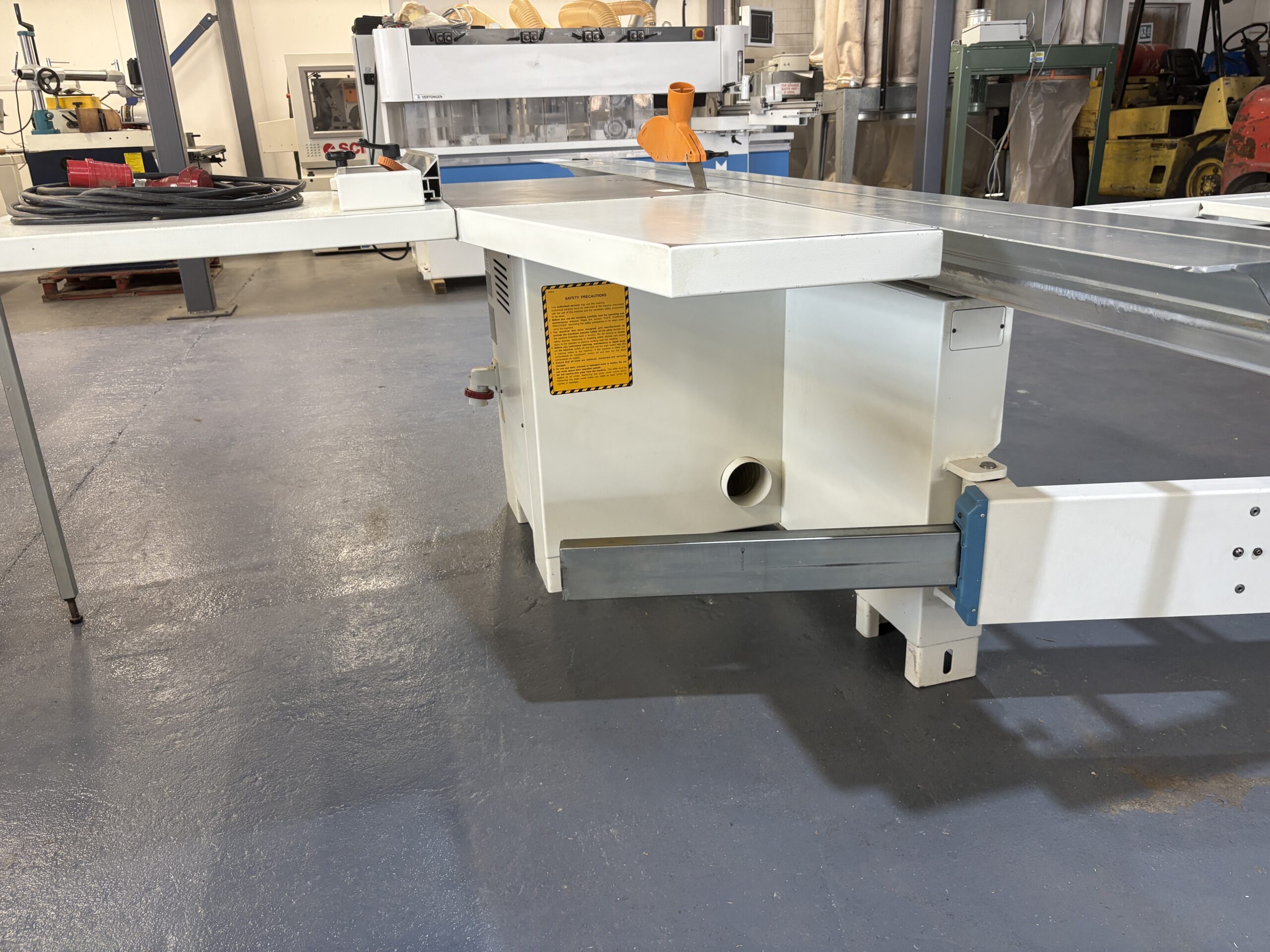

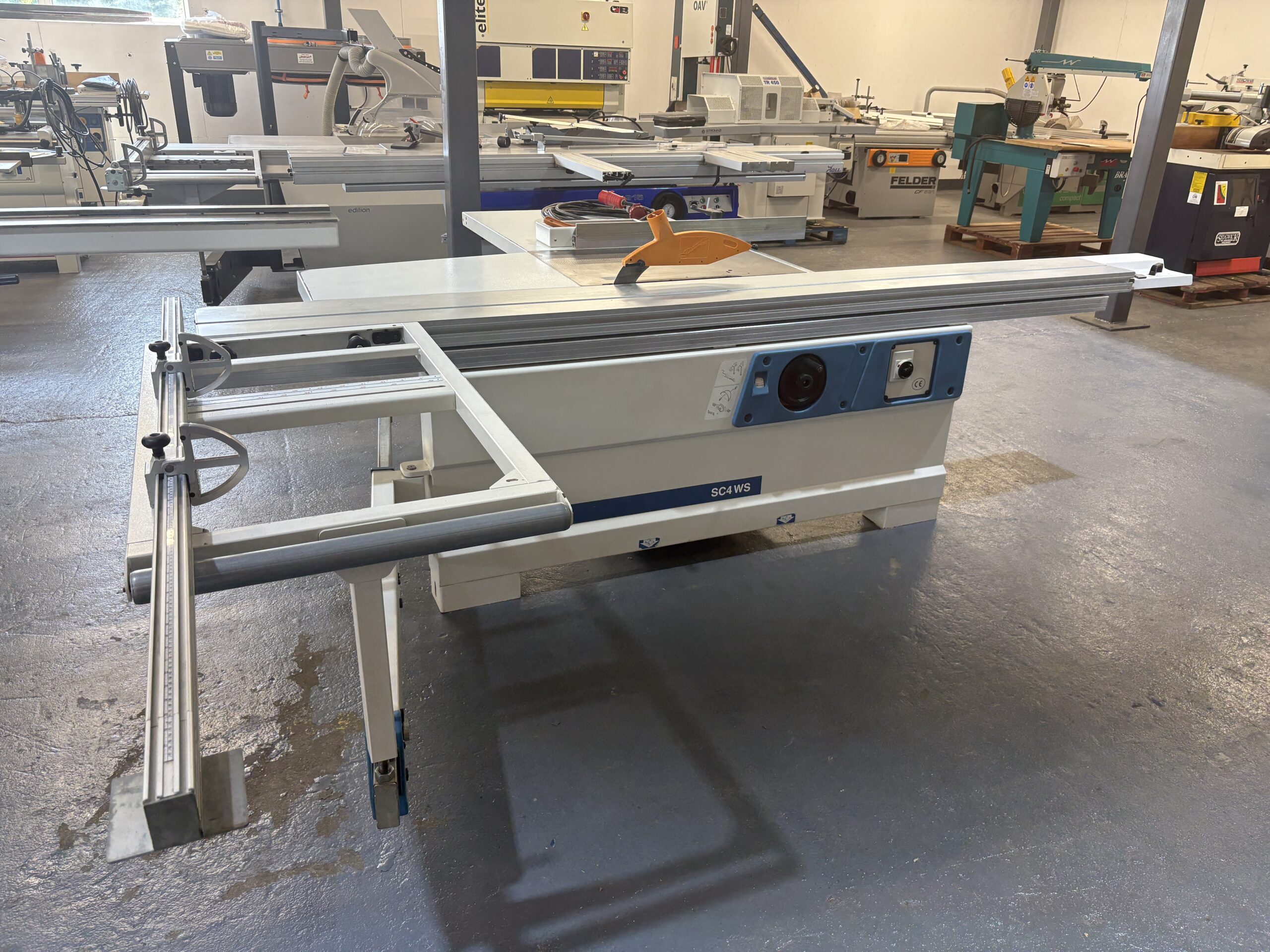

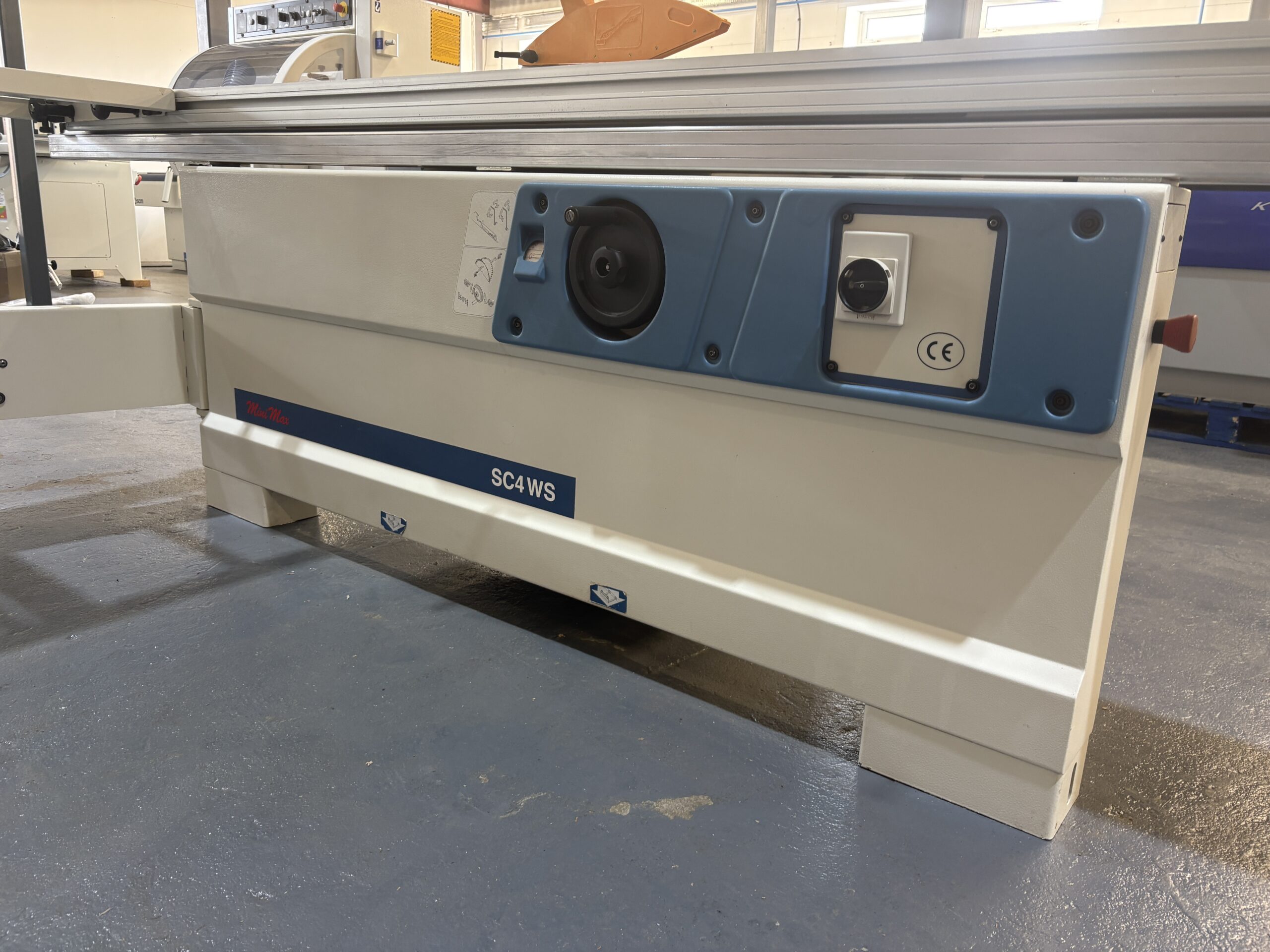

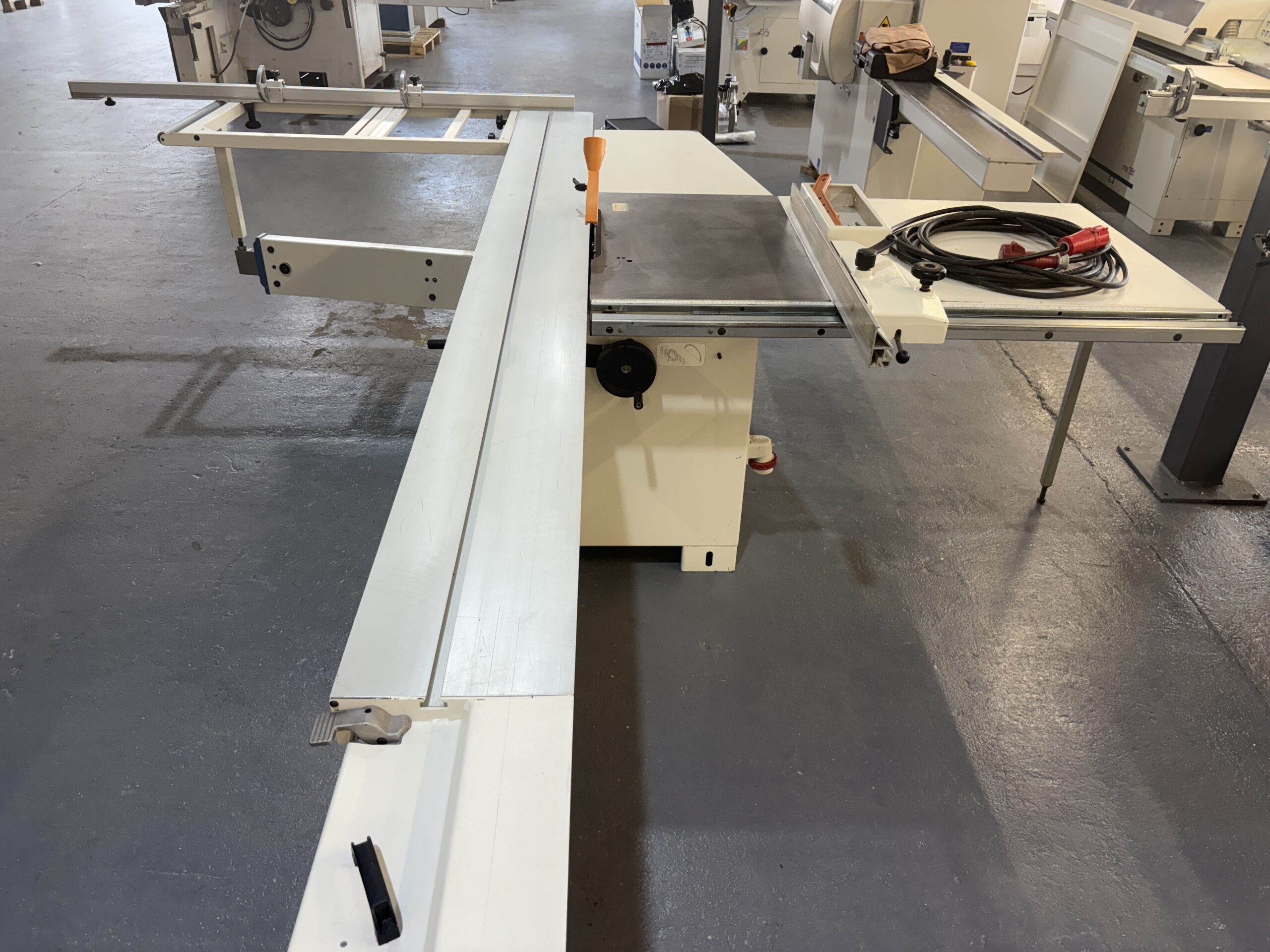

SCM Minimax SC 4WS Panel Saw
3.2m squaring capacity

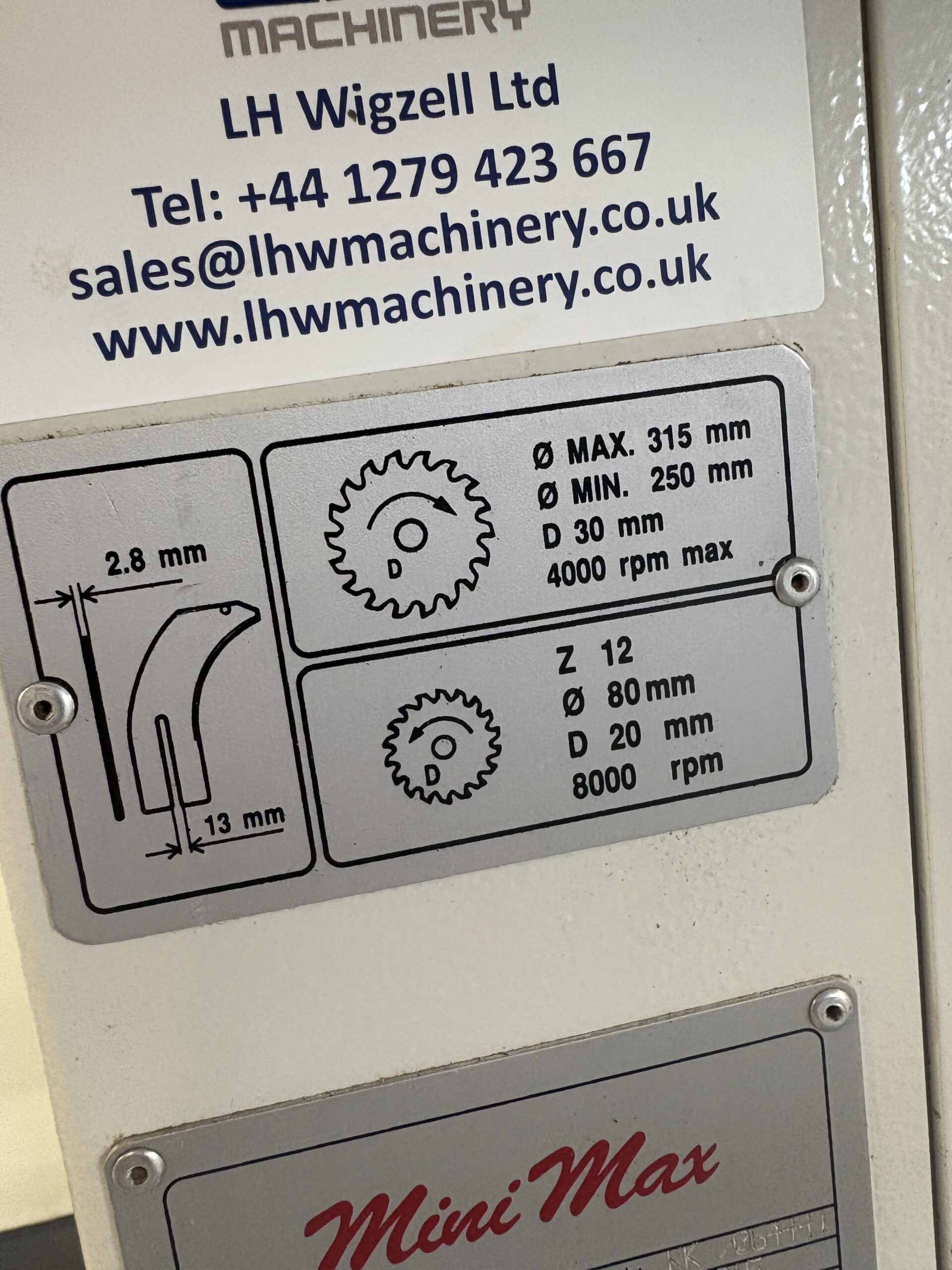

Standard 315mm max blade height giving 100mm depth of cut
3 phase, 5kw (7.5hp) main motor, 4000rpm. Braked
Separate scorer motor, 80mm x 20mm bore. 8000rpm
Riving knife and crown guard
1270mm rip to right of the blade
Manual rise and fall
Manual tilt to 45 degree
Cleaned checked and tested. Fitted with new 315mm sheet balde and new scorer
