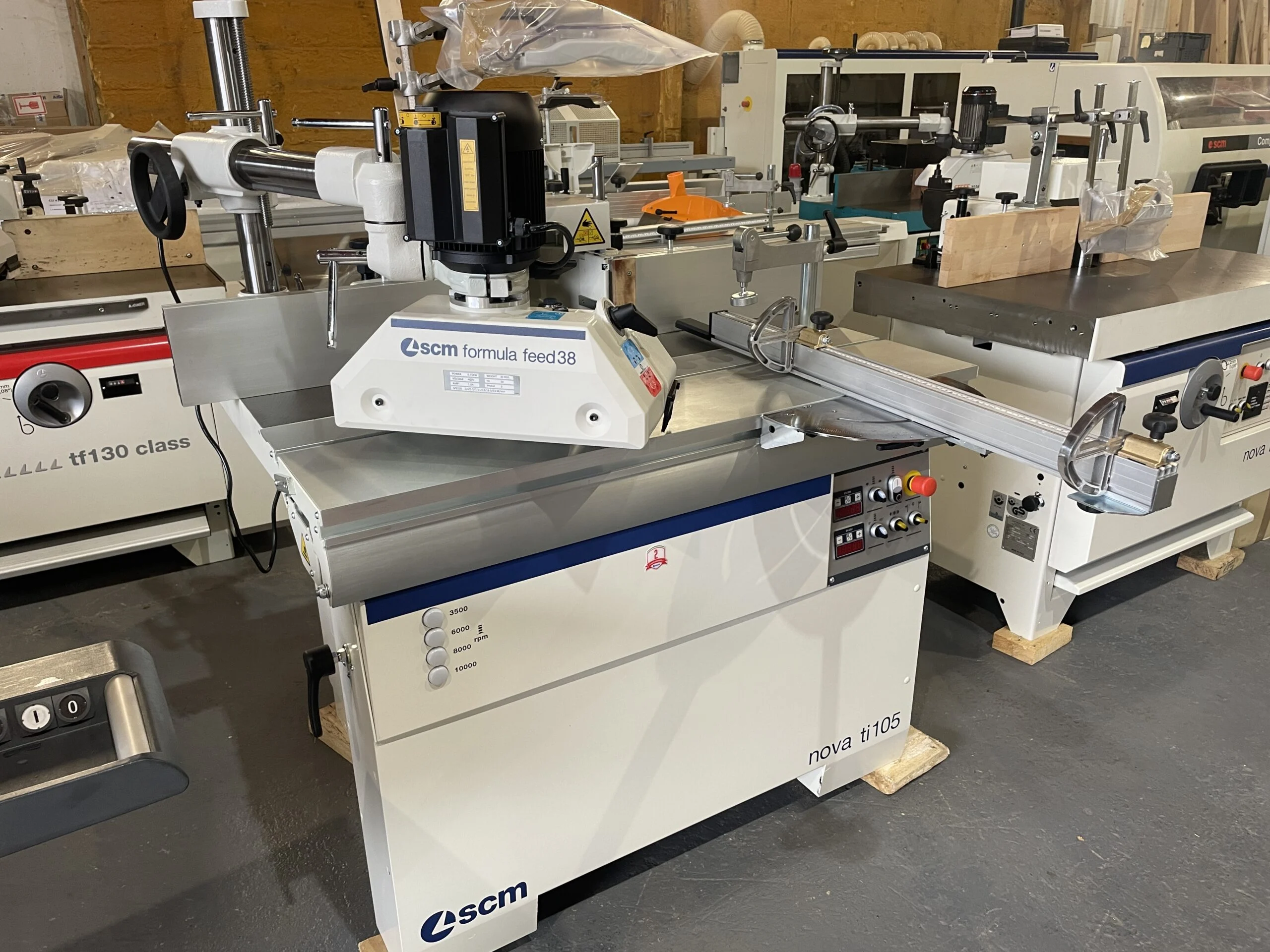

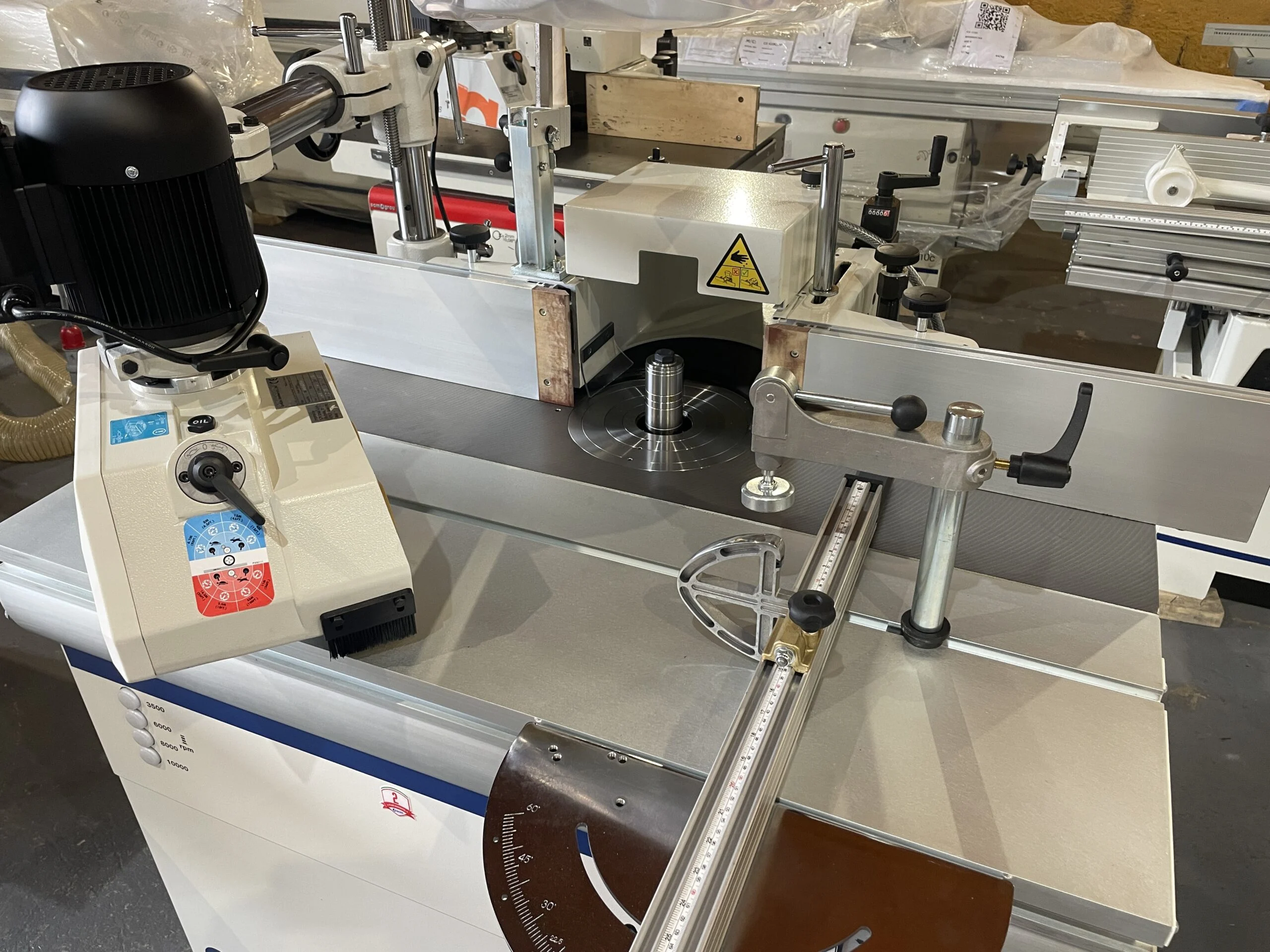

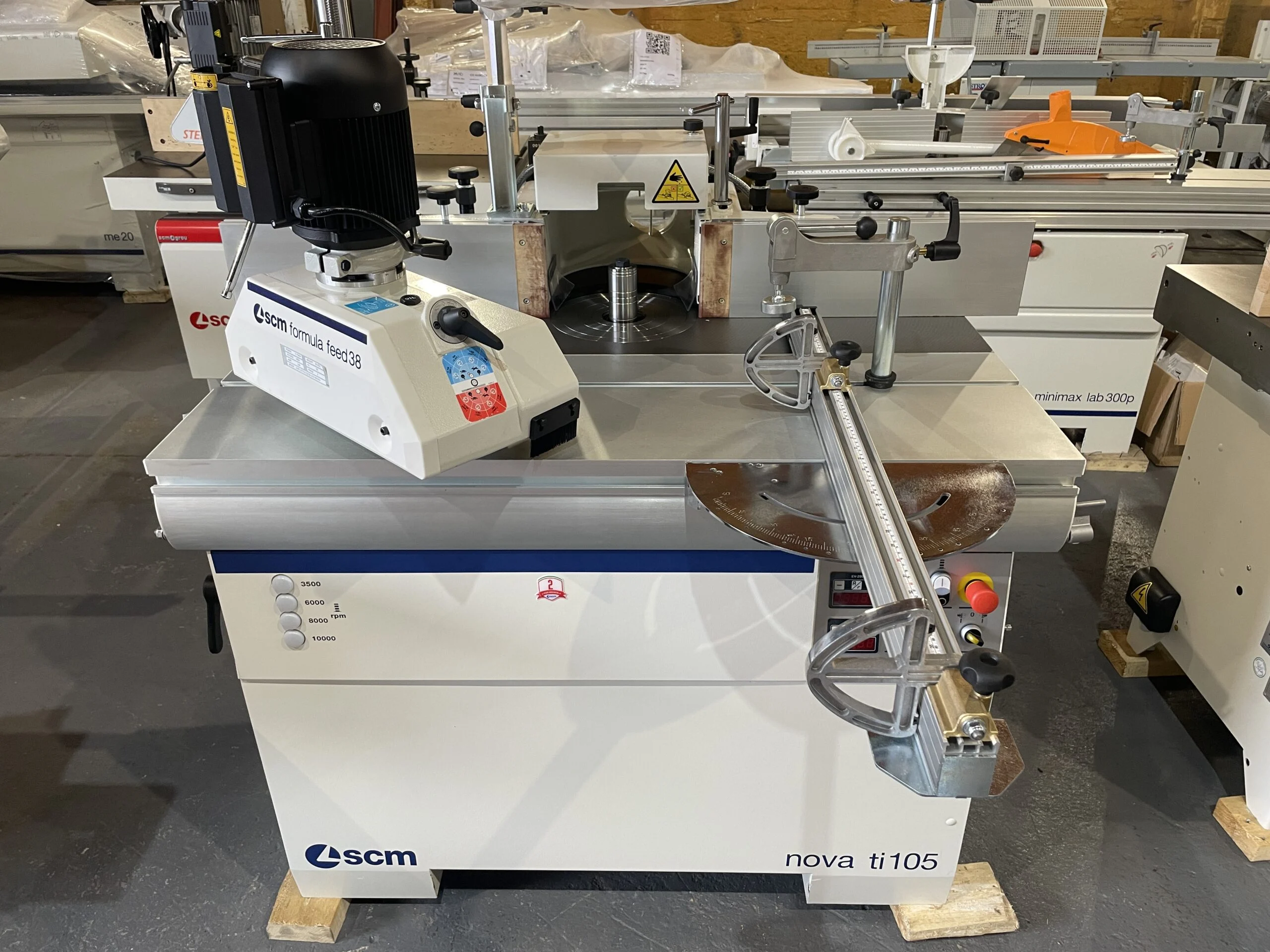

2023 SCM Nova Ti105 Tilt Arbor Spindle Moulder….IN STOCK Now

Technical Specifications :

Worktable dimensions 1200 x 530mm
Spindle length 125mm
Spindle Tiltable to 45deg
Spindle Speeds 3500,6000,8000 & 10000rpm
Max tool diameter retractable under the table 240x80mm
Max tool diameter retractable under the table @ 45deg 150x80mm

Spindle Tilts Backwards 45 degree

As standard, manual rise and fall manual tilt with readouts

Power feed electrical preparation

Standard machine with following fitted options

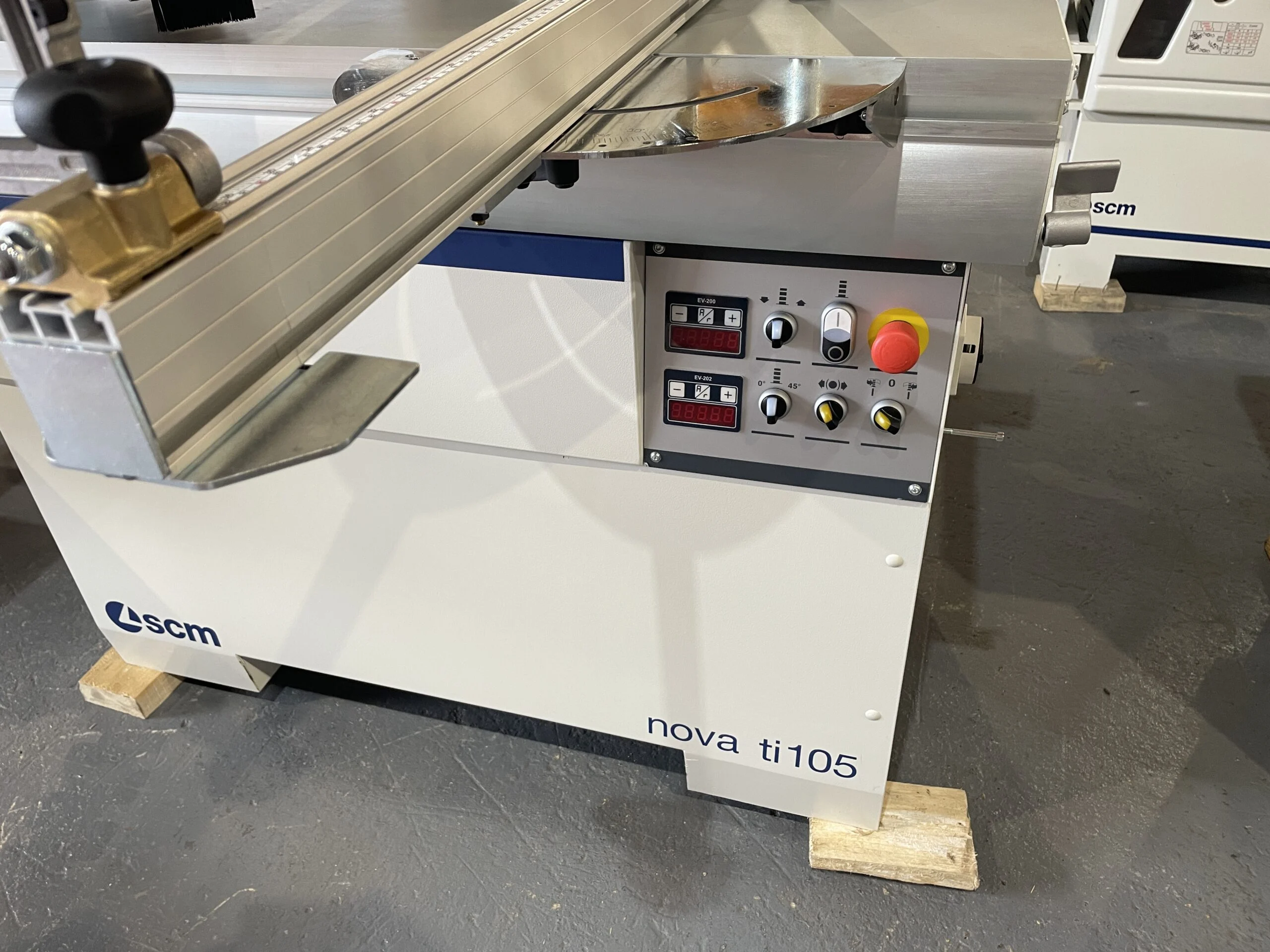

Power rise and fall power tilt, digital readouts (£1404)

Upgraded spindle moulder fence with mechanical adjustment (£1028)

Aluminium fence plates (£324)

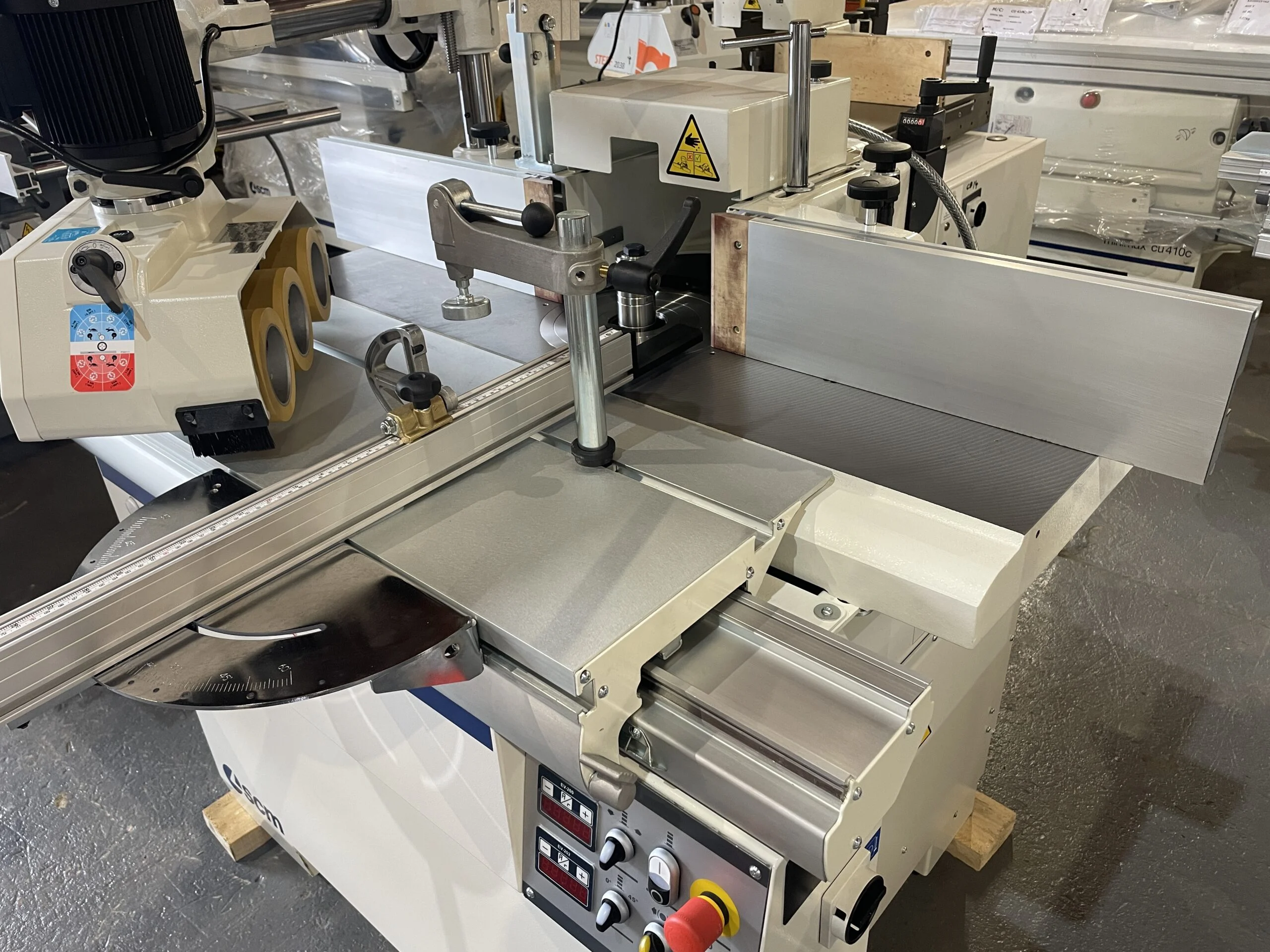

PS version – 1200mm sliding table, eccentric clamp and telescopic fence  (£1123)

7kw motor (£451)

Interchangeable shaft (£313) with 30mm option

Spare Shaft 1 1/4 (£214)

Tenoning hood with small sliding table. Max tool diameter 275mm (£383)

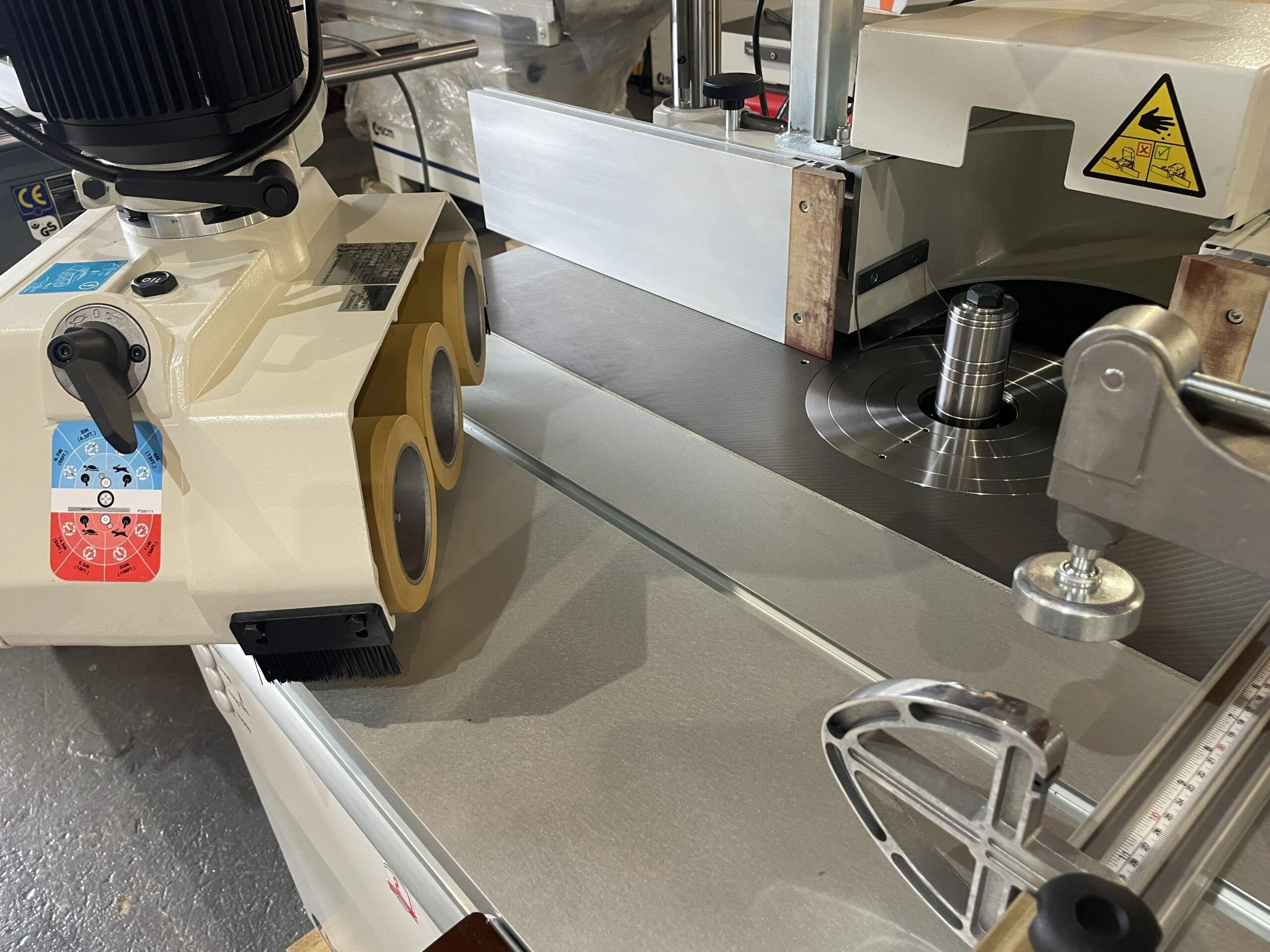

Please also see SCM formula power feed units advertised. We can supply these units, drilling and tapping the fixing holes necessary on the cast table.
