Description
Stabilidy and rigidity

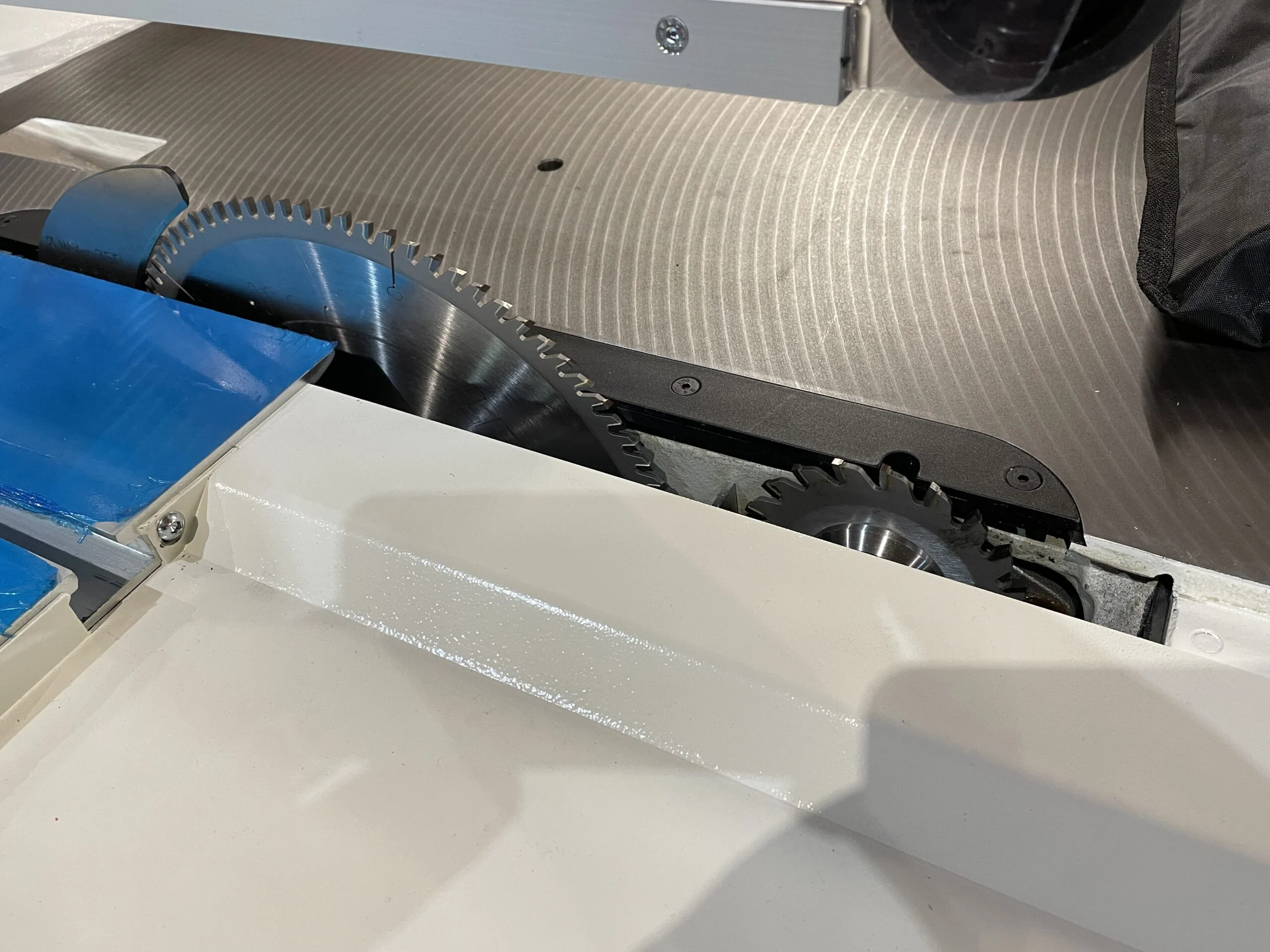

The new saw unit closed loop structure is made of a heavy cast iron and is supported firmly under the table by two lateral supports in a crescent shape. These solutions give strength and rigidity, guaranteeing perfect cutting results. The saw unit can be equipped, on request, with scoring blade for perfect cutting even on veneered panels. The scoring blade is an optional available in two versions: with belt transmission from the main motor and with an independent motor 0.75 HP (0.55 kW). The maximum diameter allowed for the main saw is 315 mm with scoring blade mounted.
Precise and silent
Optimal support also to larger pieces, with the sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminum riveting.
The large square frame

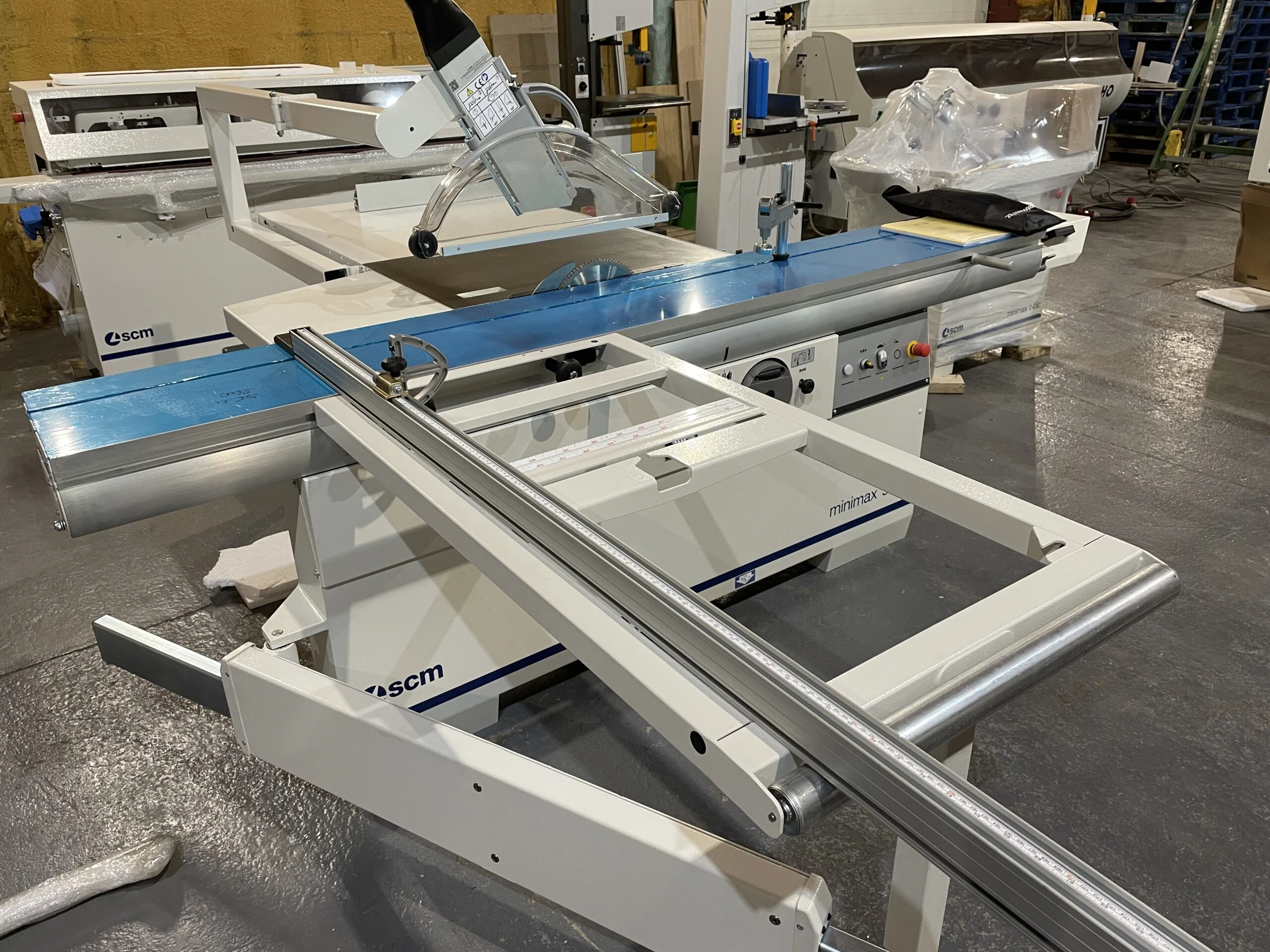

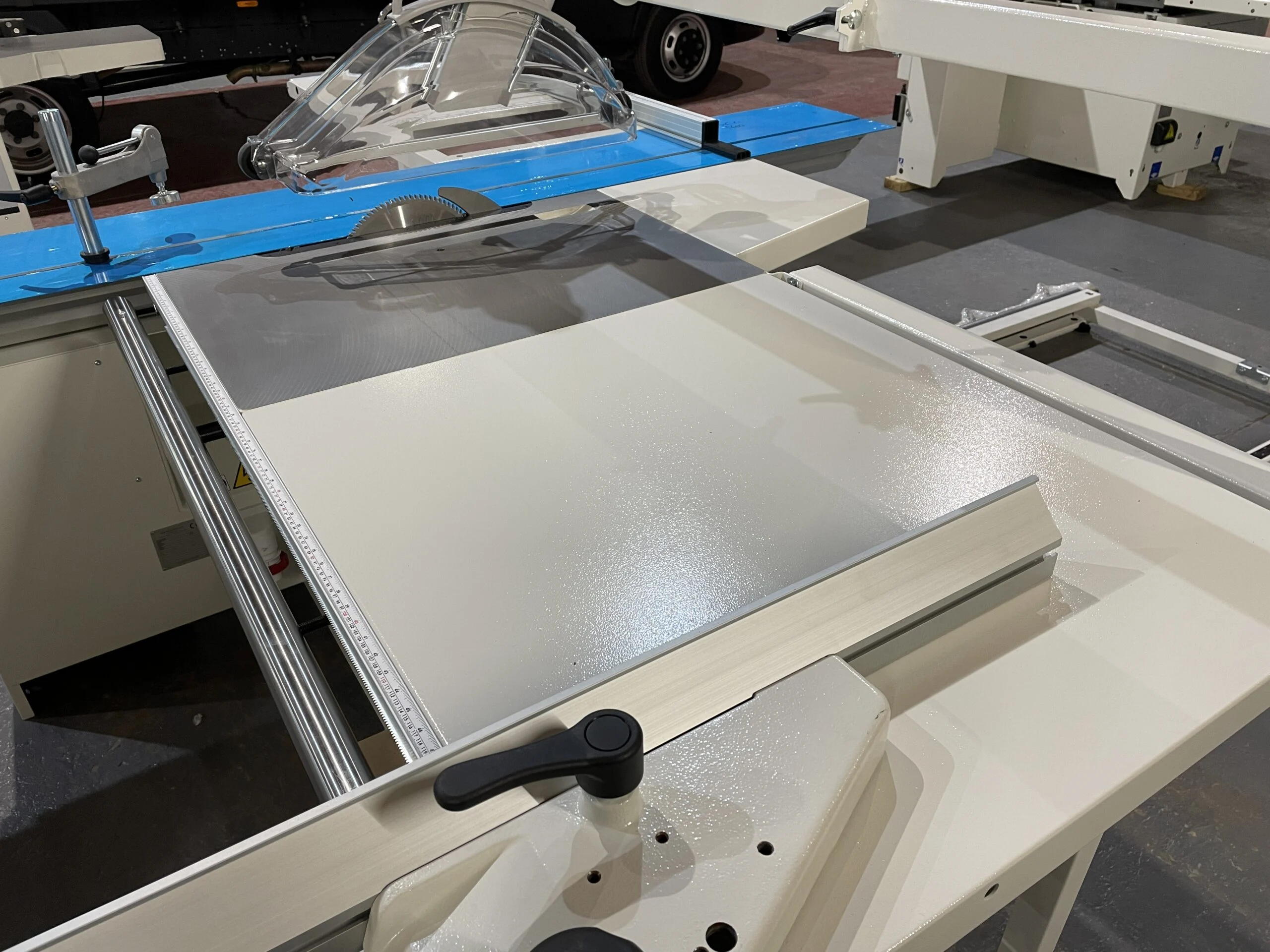

Panel loading is easy on the large squaring frame with an idle roller at the end. The telescopic squaring fence with two reversible stops can be used to square panels measuring 2600 x 2600 mm and for miter cuts at up to 45° on both sides of the frame.
Description in brief:

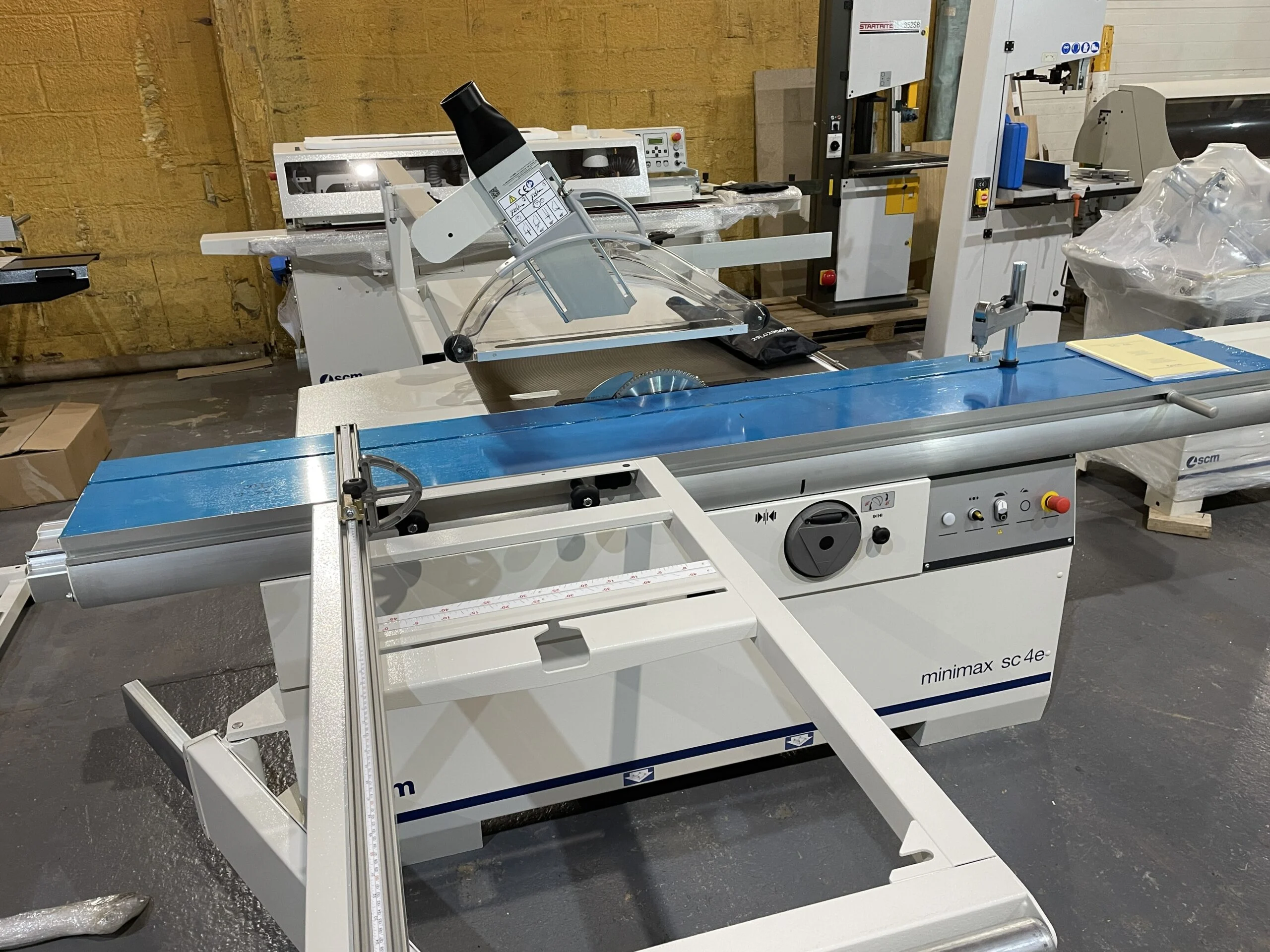

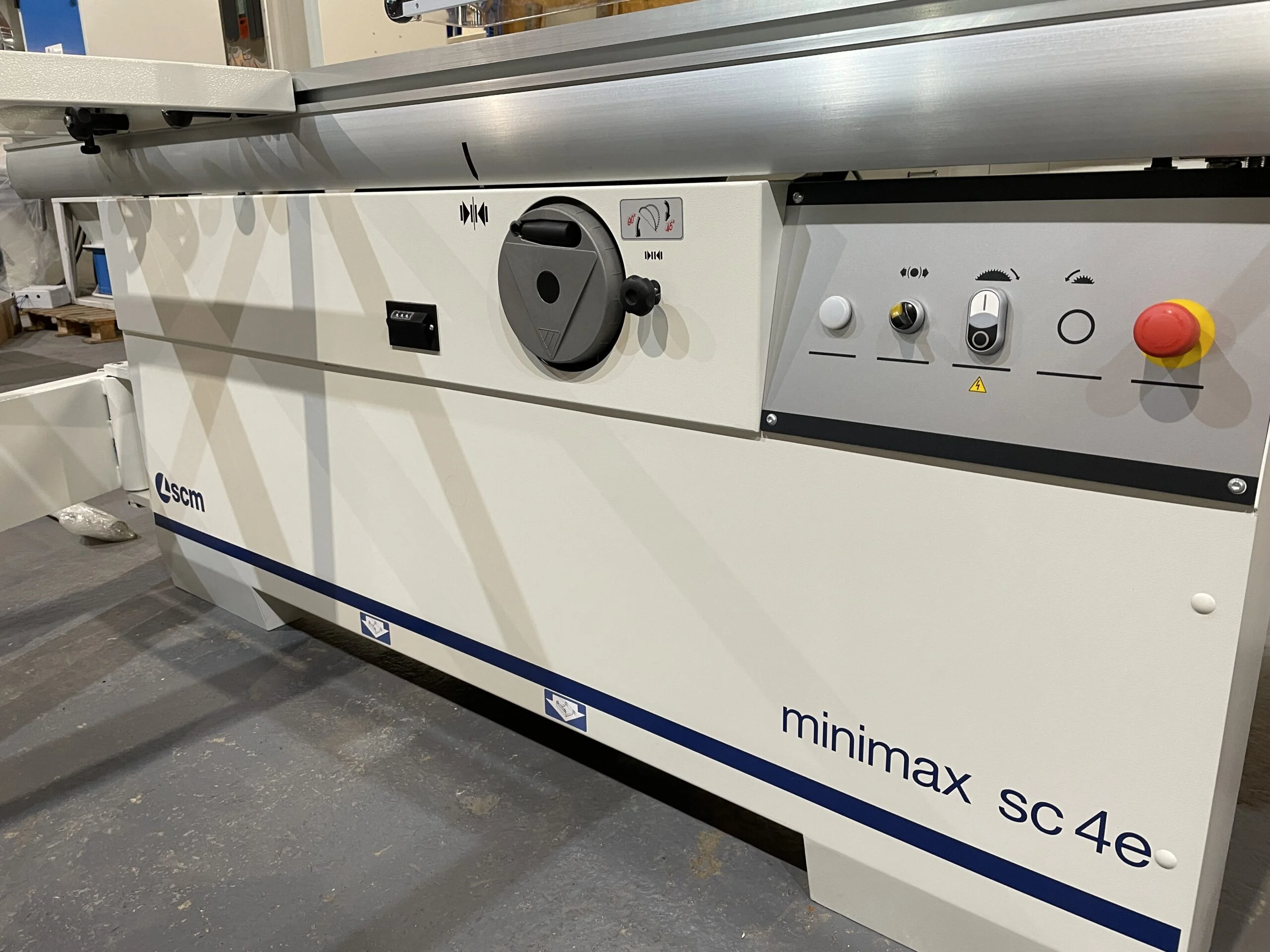

New in stock 2024, SC4e Panel Saw
3 Phase
Tilt arbor 90-45 degrees
Max saw blade with scoring blade 315mm
Max depth of cut with 315mm @ 90 degrees 100mm
Max depth of cut with 315mm @ 45 degrees 71mm
Dust outlet at base level 120mm
Dust outlet on overhead guard 80mm
Fitted with following extras:
2600mm sliding table (giving 2600 squaring stroke)
5 kw motor self braking motor
Belt driven scorer (blade included)

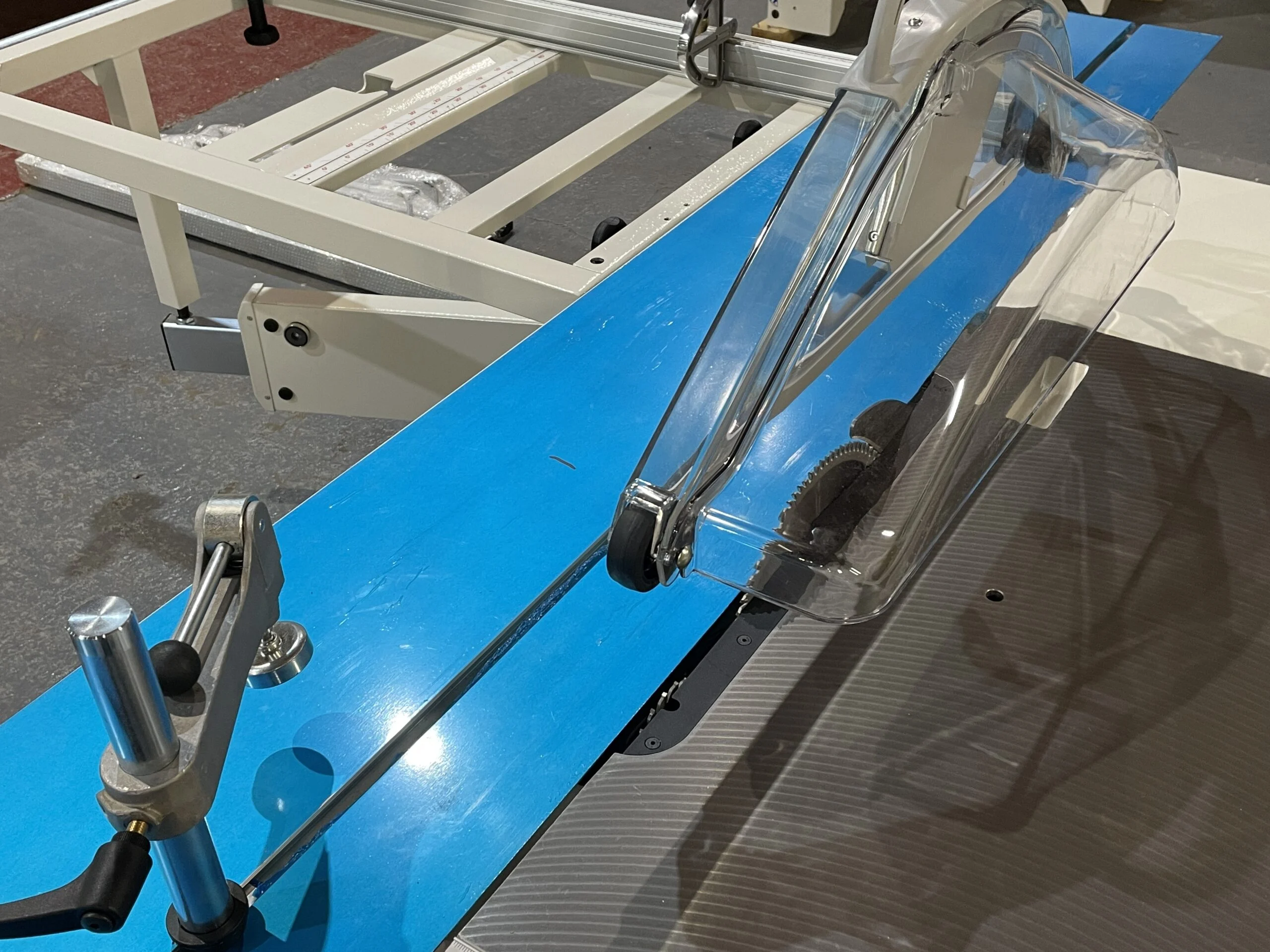

Overhead saw guard, 80mm dust outlet
1270mm rip
Numerical readout for tilt adjustment
Technical data
| sc 4e | ||
| Max. sawblade diameter with scoring blade installed | mm / inches | 315 / 12 |
| Sawblade arbor size | mm / inches | 30 / 1.18 |
| Max. sawblade projection from table at 90°/45° | mm / inches | 100/70 3.94/2.75 |
| Cutting width on parallel fence (Rip capacity) | mm / inches | 1270 / 50 |
| Max. squaring stroke of sliding table saw | mm / ft | 2600 / 8.5 |
