Description

In stock now @lhwmachinery

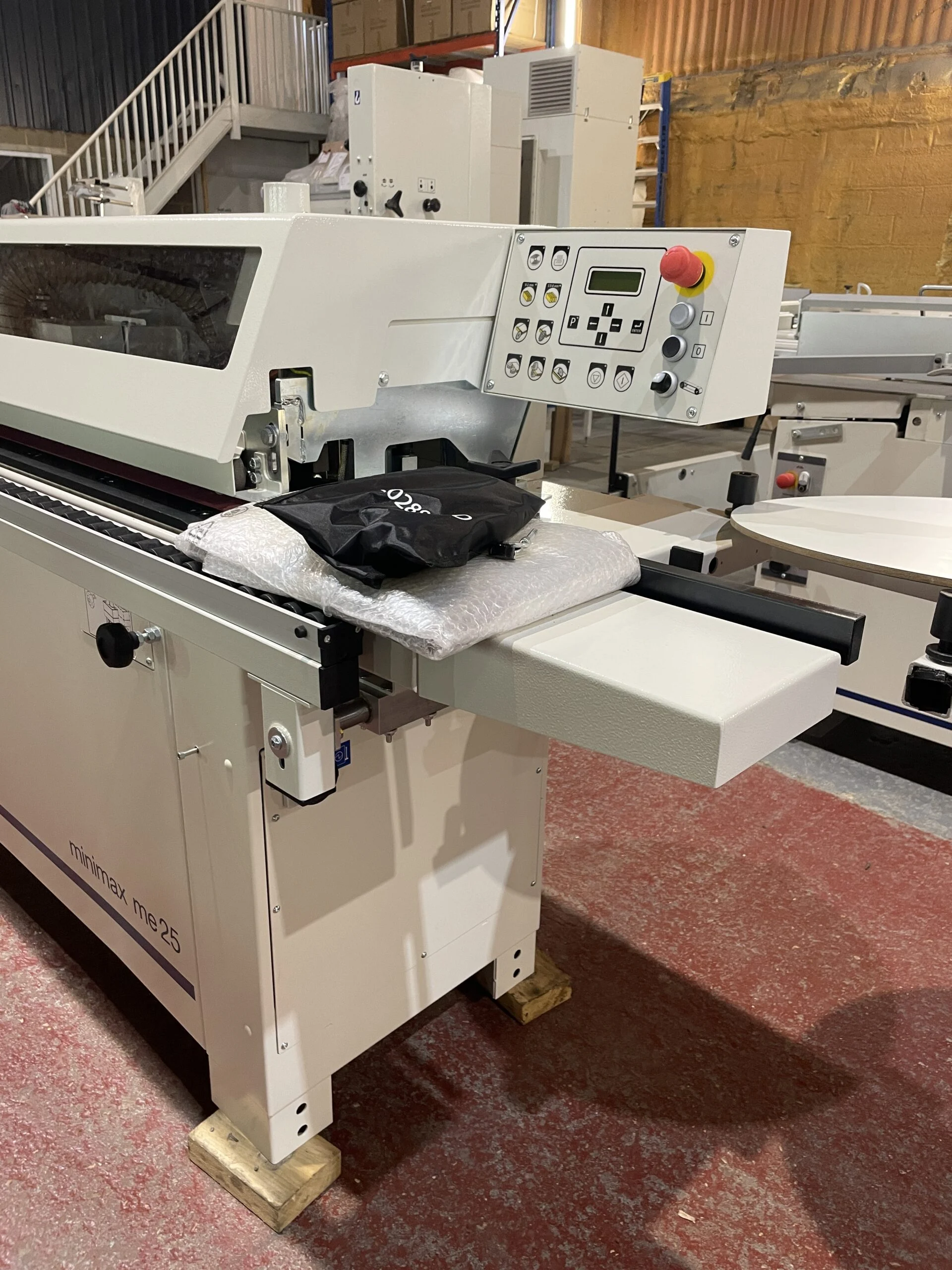

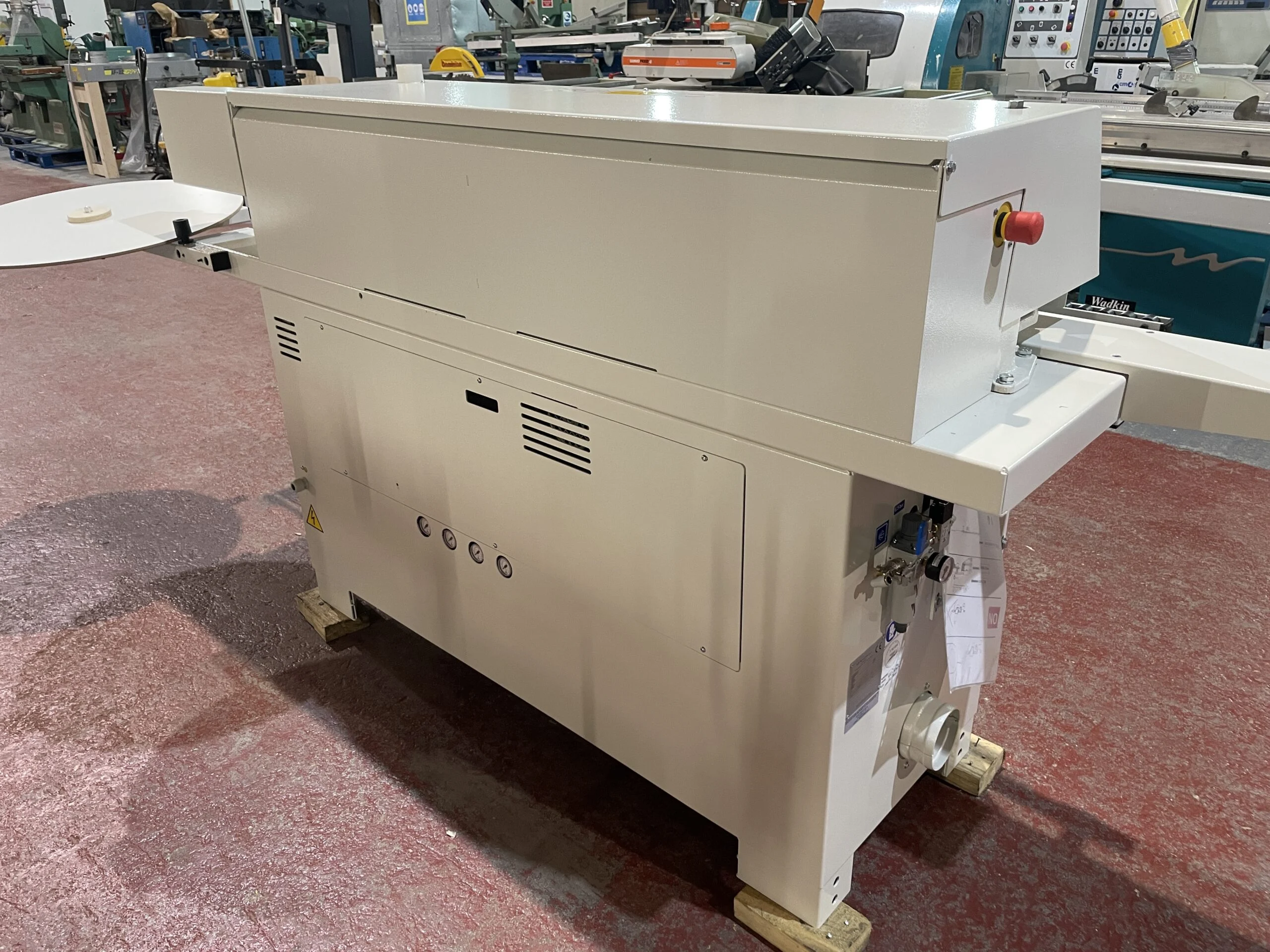

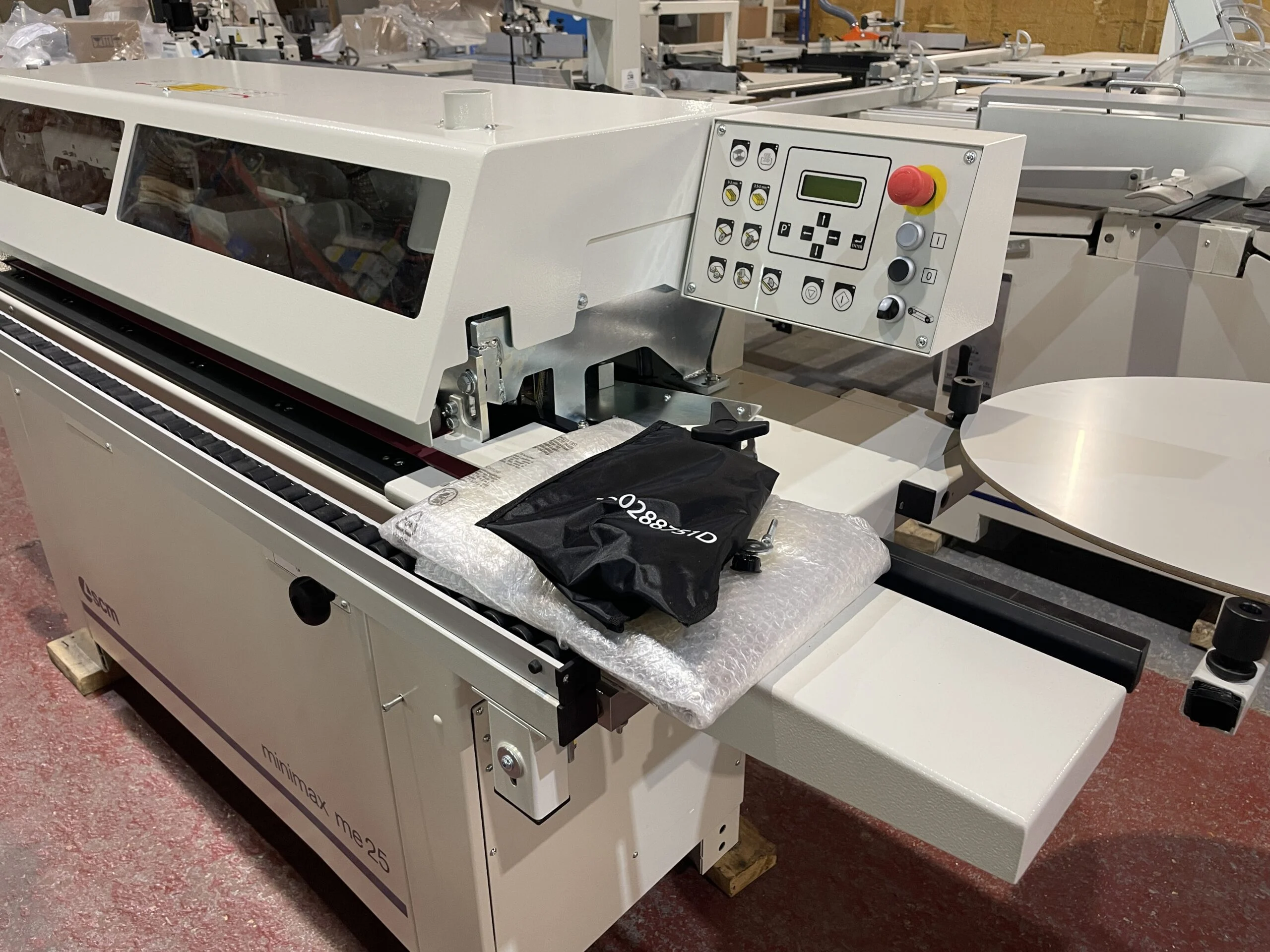

New Minimax ME25 RC

With automatic loading device for strip edging

  • Worktable Dimensions 2600 x 530
  • Worktable Height 904mm
  • Thickness of Rolled Edges 0.4 – 3mm
  • Thickness of Edges in Strips 5mm
  • Min – Max Panel Thickness 12 – 50mm
  • Feed Speed 7m/min
  • Glue Pot Capacity 0.5kg
  • Min Panel Length 190mm
  • Min Panel Length with Rolled Edges 15mm

OPERATING UNITS

GLUE POT UNIT, EDGE LOADING AND PRESSING SYSTEM
– hot melt glue with quick heat up system and internally teflon coated to allow an easy glue replacement
– glue application on the panel by means of glue spreading roller
– temperature adjustment of the applied glue integrated in the PLC control
– device for automatic recovery of unused glue
– automatic edge loading system for rolled edges with shear device for 3 mm max. thickness edges
– coil holder plate, 730 mm diameter
– pressing unit with n. 2 edge pressure rollers: one in steel and the second rubber coated
– adjustable infeed fence with numeric readout
– automatic lowering of the glue pot temperature after a temporary non-use of the machine

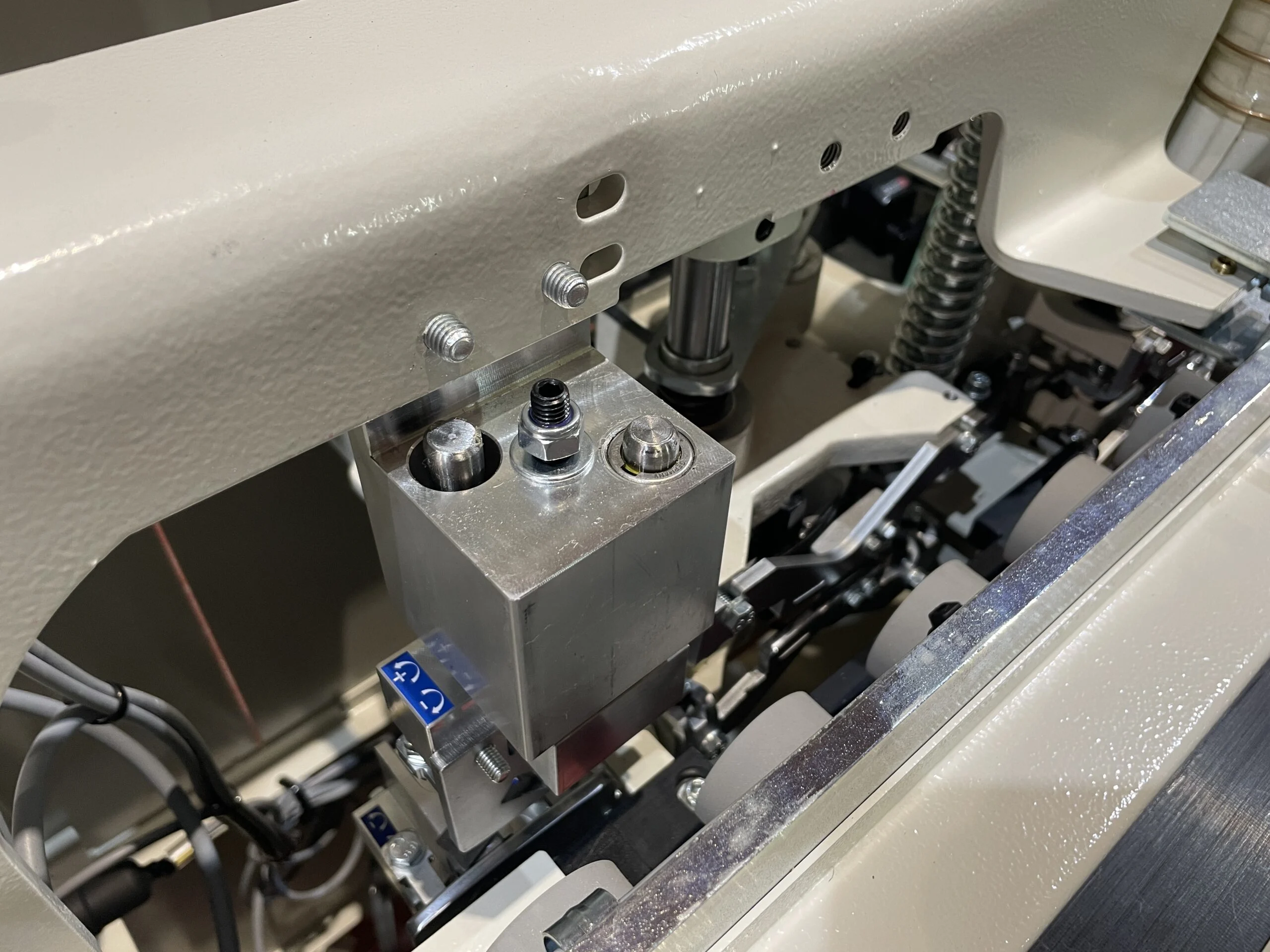

END CUTTING UNIT
With motor for 90° end cutting of front and rear exceeding edge.
The blade alignment with reference to the cutting point is carried out using a new copying device which ensures a constant and precise cutting under any working condition.

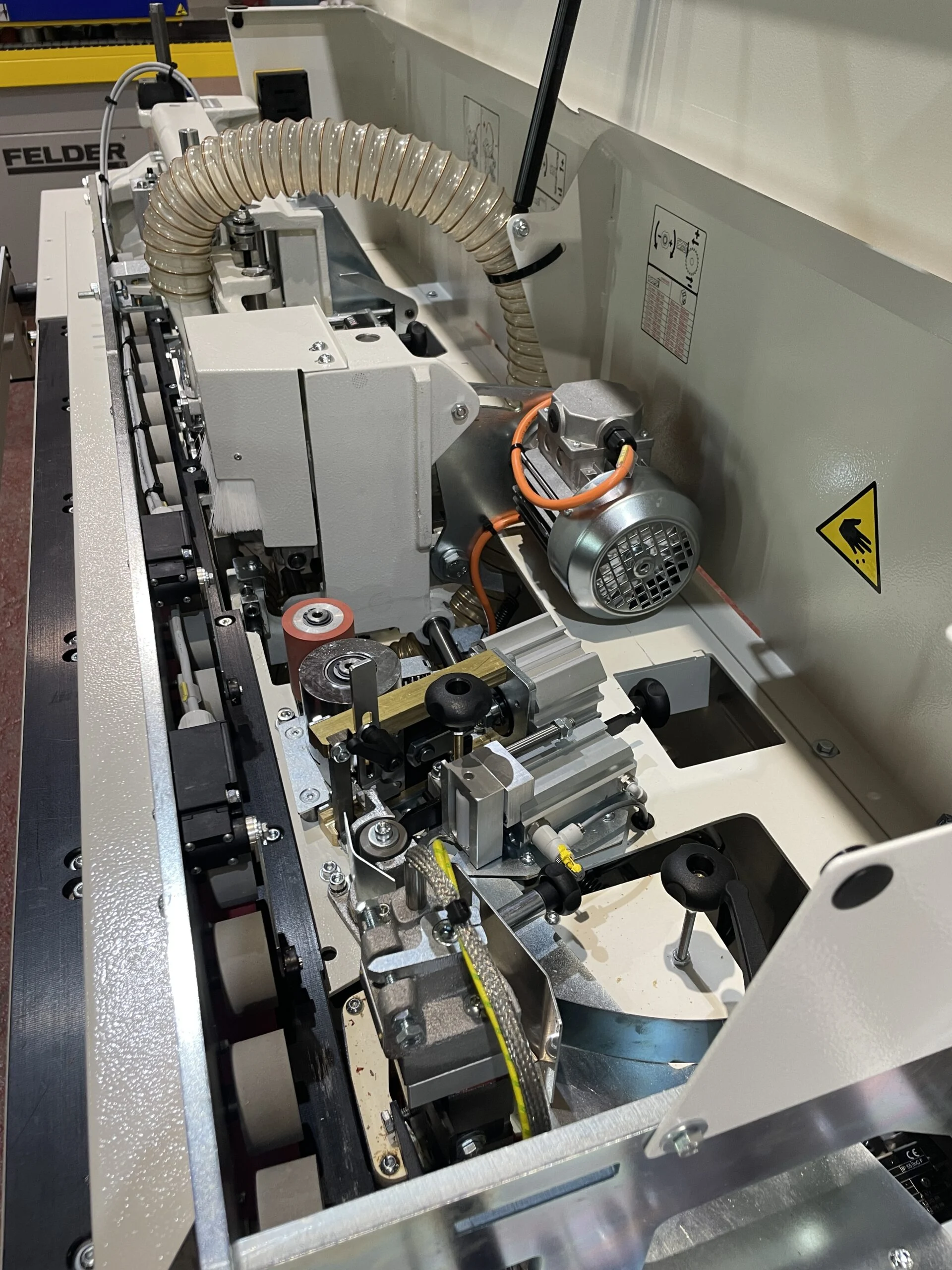

SUPERPOSED TRIMMING UNIT
Equipped with vertical copying pads for an accurate positioning of tools with reference to the cutting
point.

The unit is provided with 72 mm diameter, combined cutters: the radius part of the cutter is used to trim 2 mm radius edges and chamfered thin edges. The straight part of the cutter is used for the trimming of edges in wood up to 5 mm. Changing from radius edge to edge in wood is done easily moving the cutters axially. The edge thickness is shown by 2 numeric readouts.

EDGE SCRAPING UNIT
For the finishing of 3 mm PVC/ABS edges.
It assures an excellent vibration free finish thanks to its high rigidity structure.
High working precision thanks to the horizontal and vertical copying pads (with chrome plated surfaces), which assure an accurate positioning of the knives in relation to the cutting point.

GLUE SCRAPING UNIT
Eliminates excess glue
Improves panel cleaning

AUTOMATIC LOADING DEVICE FOR EDGES IN STRIPS
