Brand New SCM Minimax fs 41e Planer Thicknesser

Available now for immediate collection/delivery

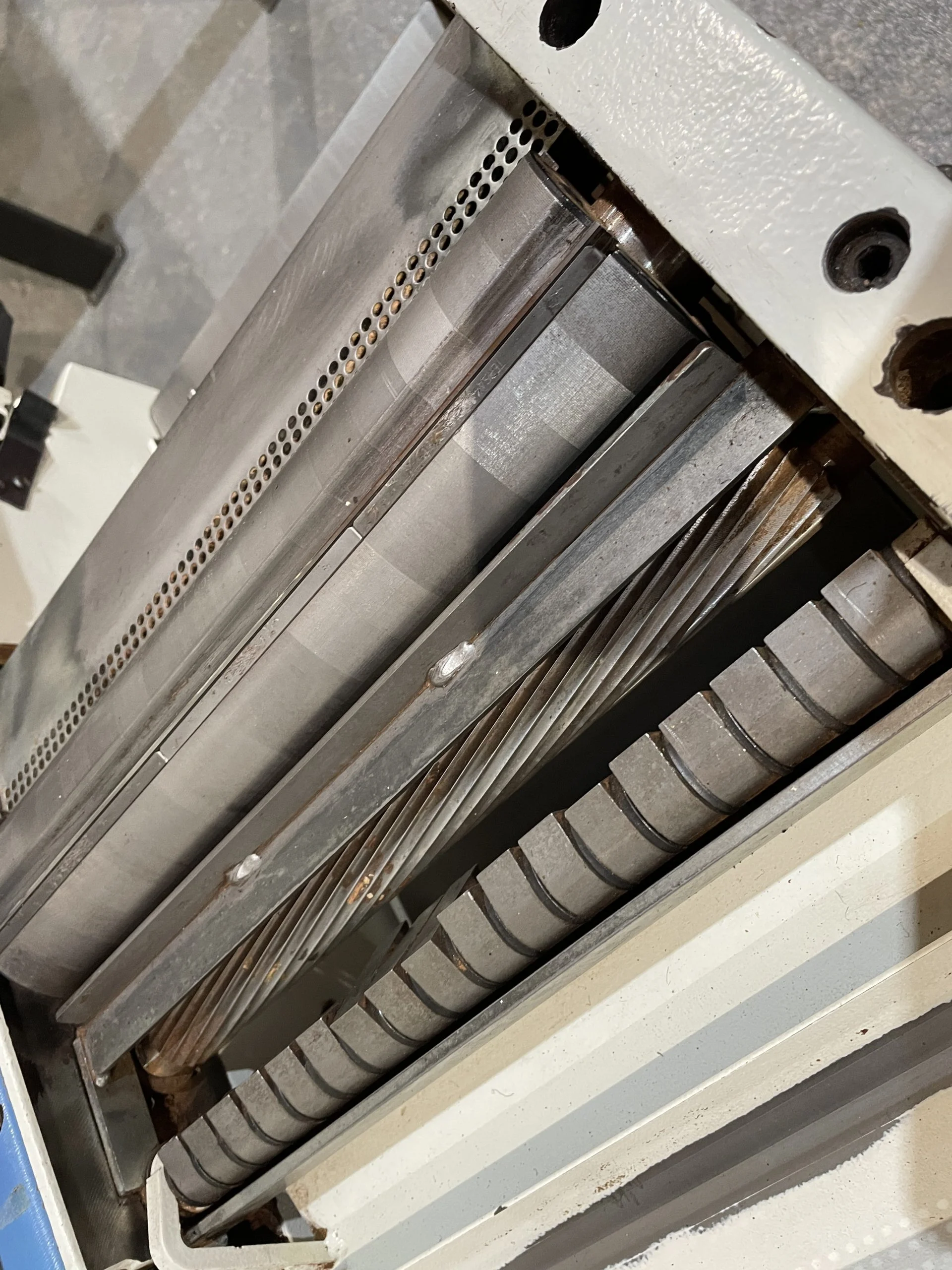

The SCM Minimax FS 41E ‘elite’ planer thicknesser allows the pressure of the thicknesser feed roller to be adjusted according to the type of wood being machined.  The infeed roller has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller in sandblasted steel, maintains the perfect post-processing finishing.

The machine offers a choice of three cutterblocks; high speed steel (HSS), “TERSA” or “Xylent”.

A traditional HSS cutter block is supplied as standard. An optional “TERSA” cutter block can also be specified for fast knife changing with no set up required.

3 Phase
4kw (5.5hp)
Width x depth 410mm x 230mm
Min/max depth 3mm x 230mm
Length of bed 2000mm
Dust outlet 120mm
Thicknessing feed speed 6 + 12 m/min
Maximum stock removal 5mm
Fence tilts 0-45 degree
Surface planer fence 1200 x 150mm…with additional overturning fence included
Optional extras included:
4 Knife tersa cutter block 85mm diameter with rapid locking system

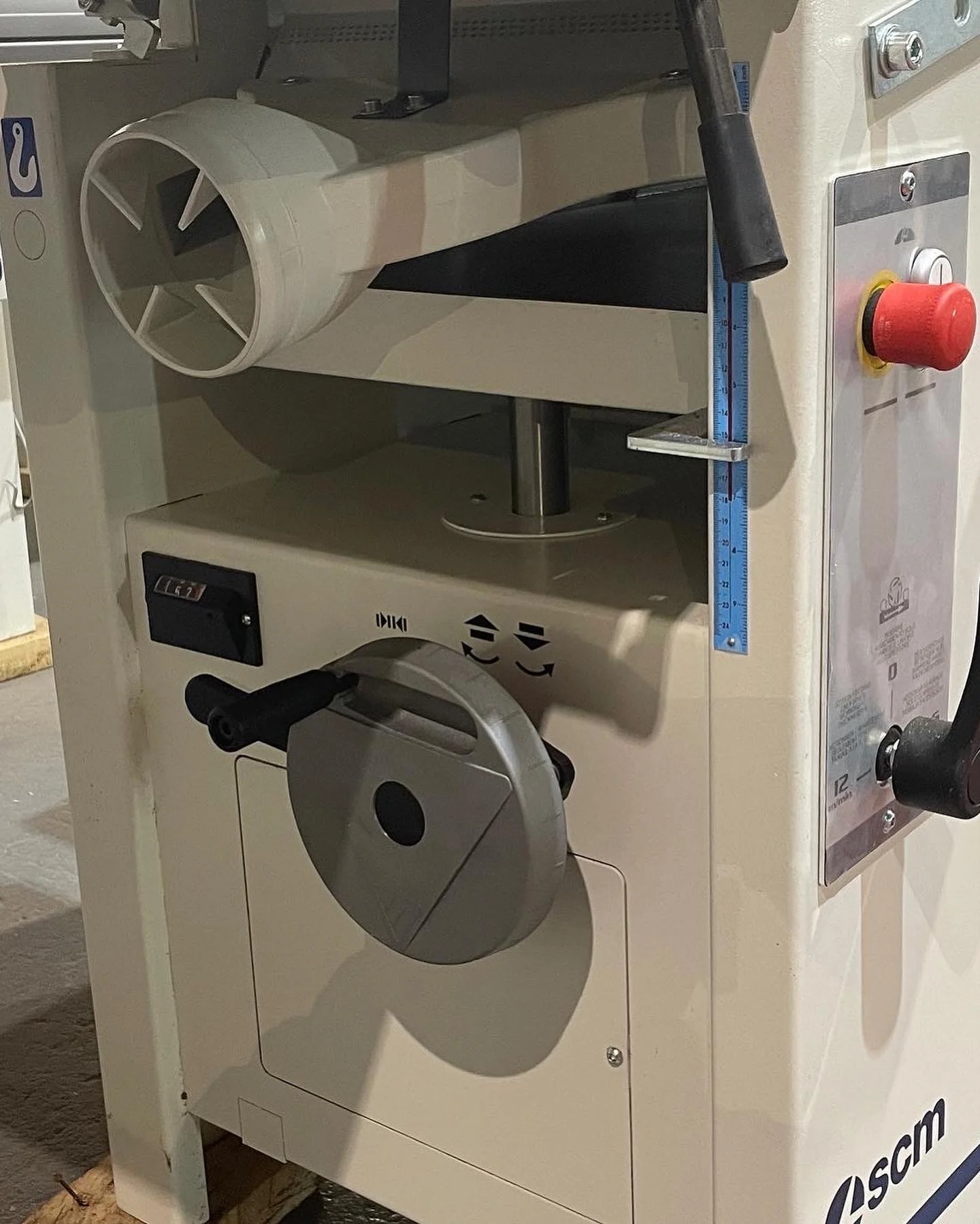

Numerical readout for thicknessing table
