Description

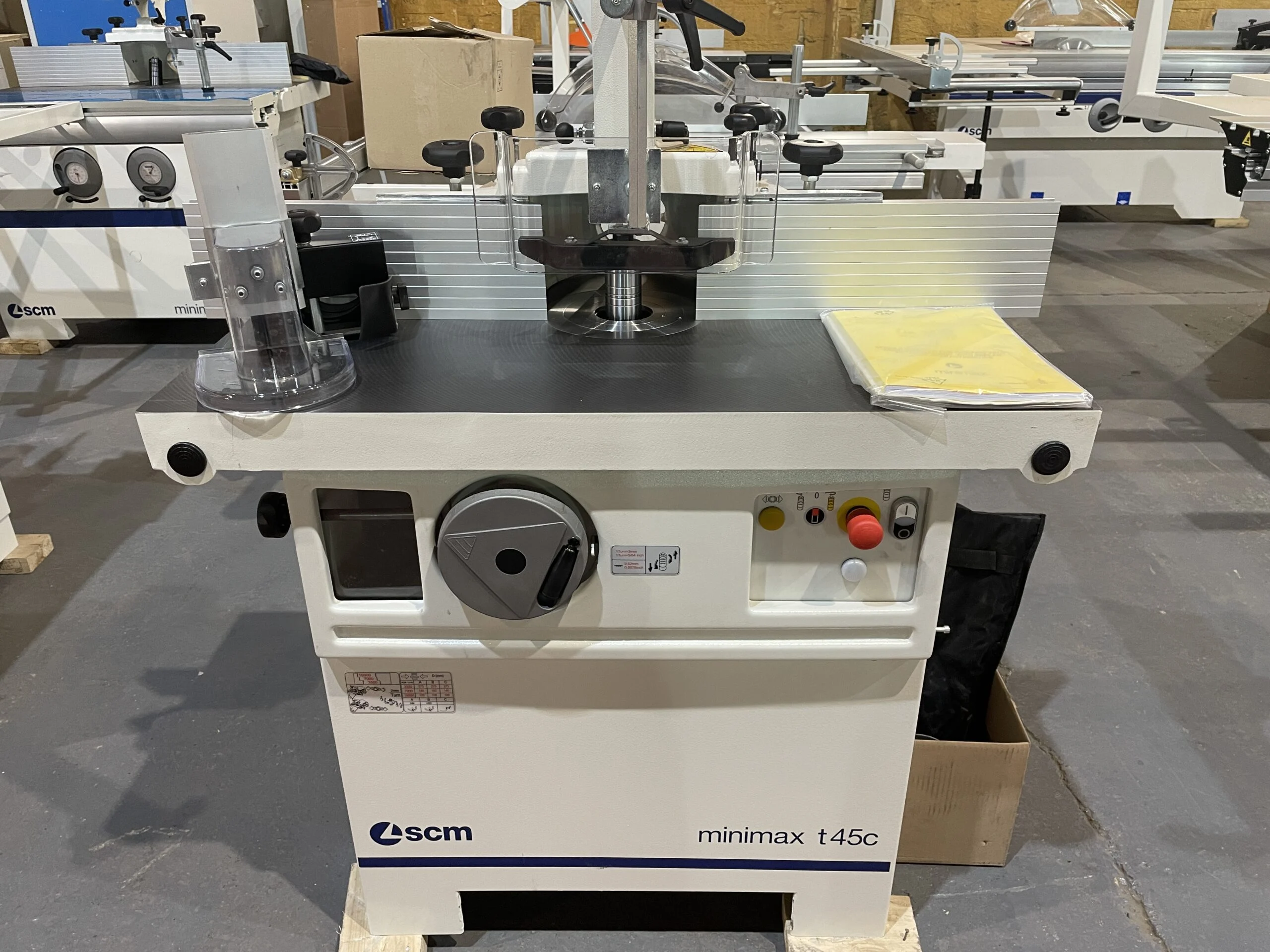

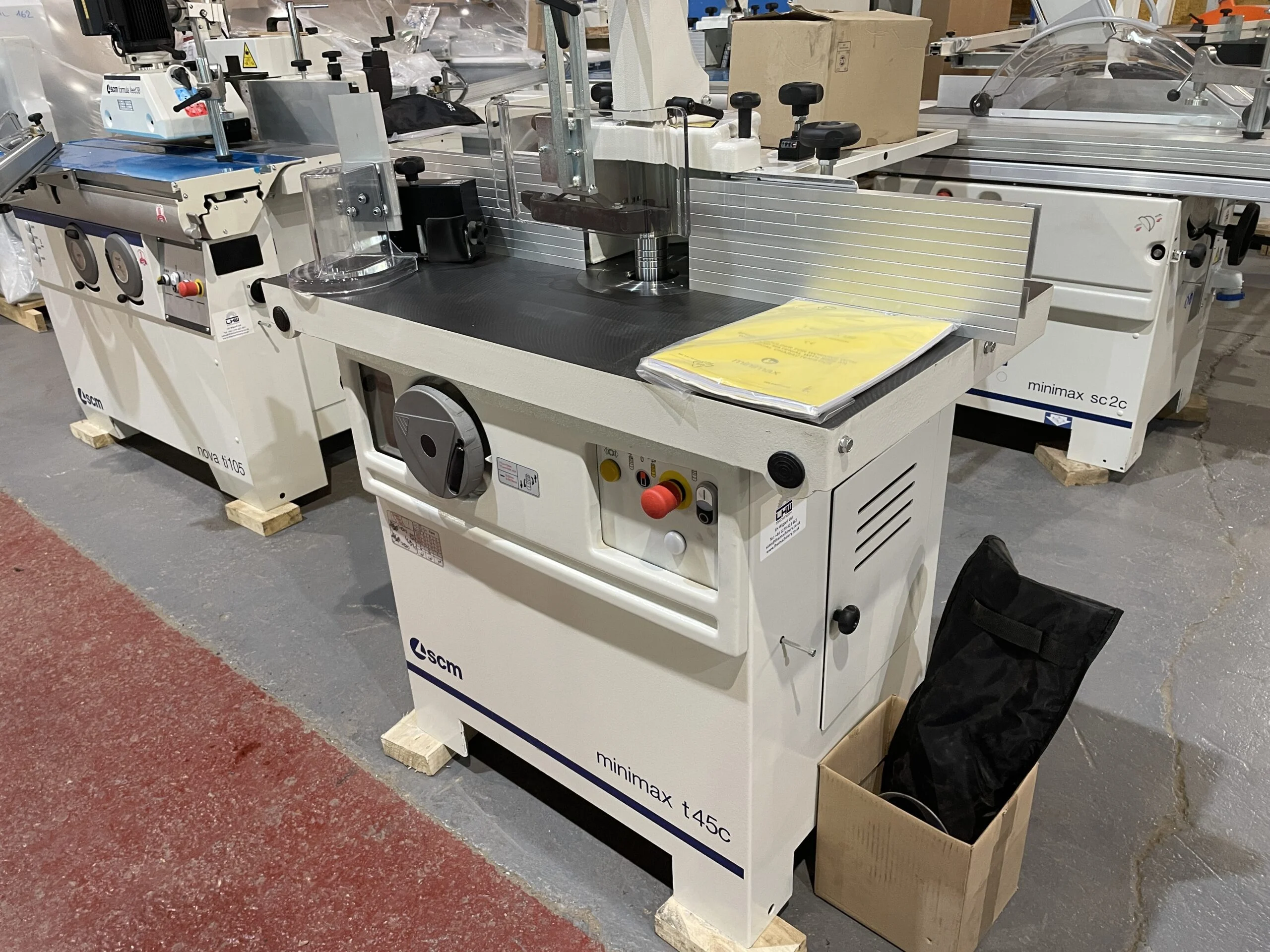

MINIMAX t45c Spindle Moulder

Technical Specifications :

– worktable dimensions 1000 x 575mm
– spindle speeds 3500/7000/10000rpm
– max diameter of tool under the table 180mm
– max useable length of spindle 100mm

– Single Phase 240v

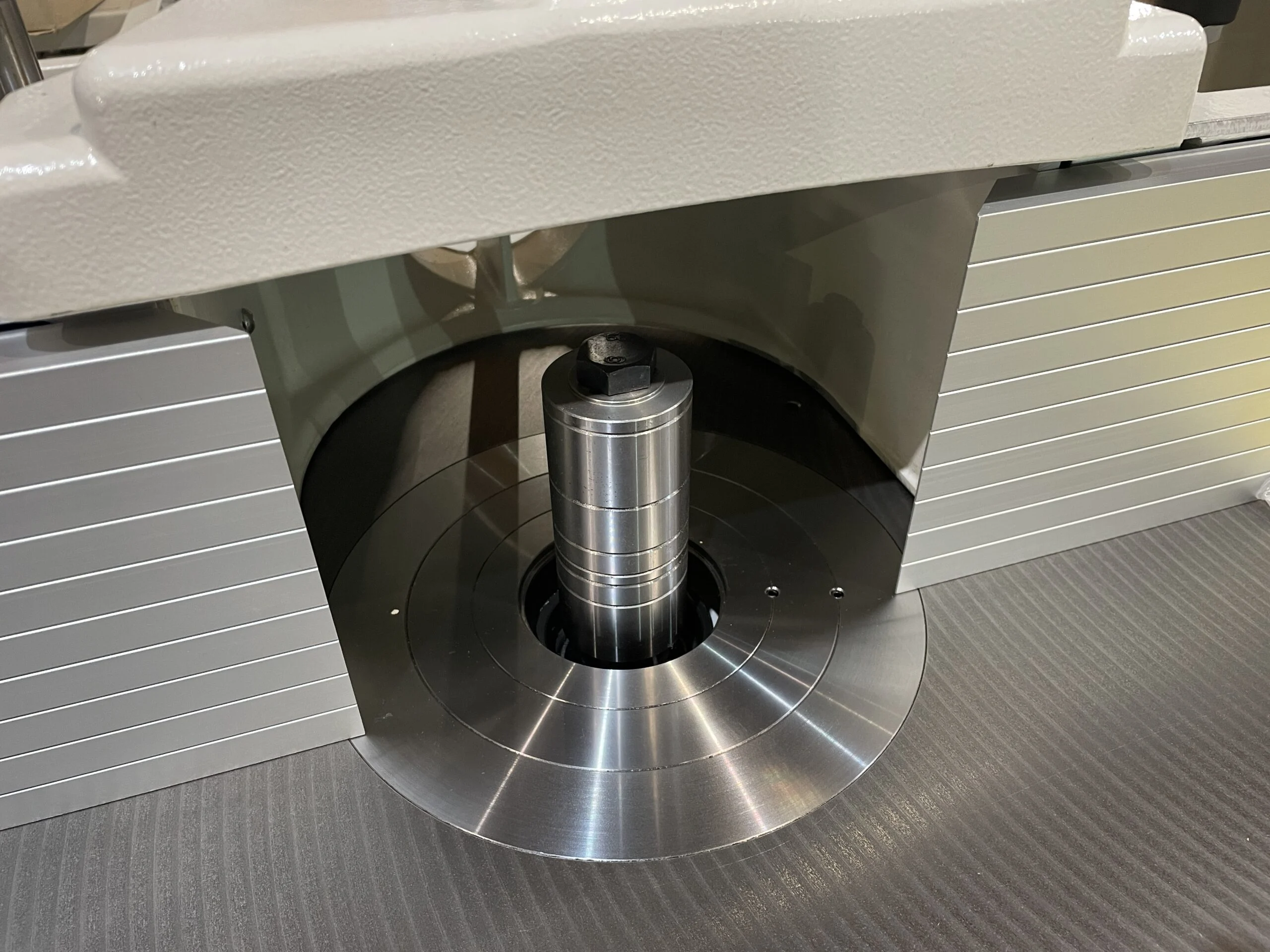

– 30mm diameter fixed spindle shaft

Standard equipment :

Self braking motor

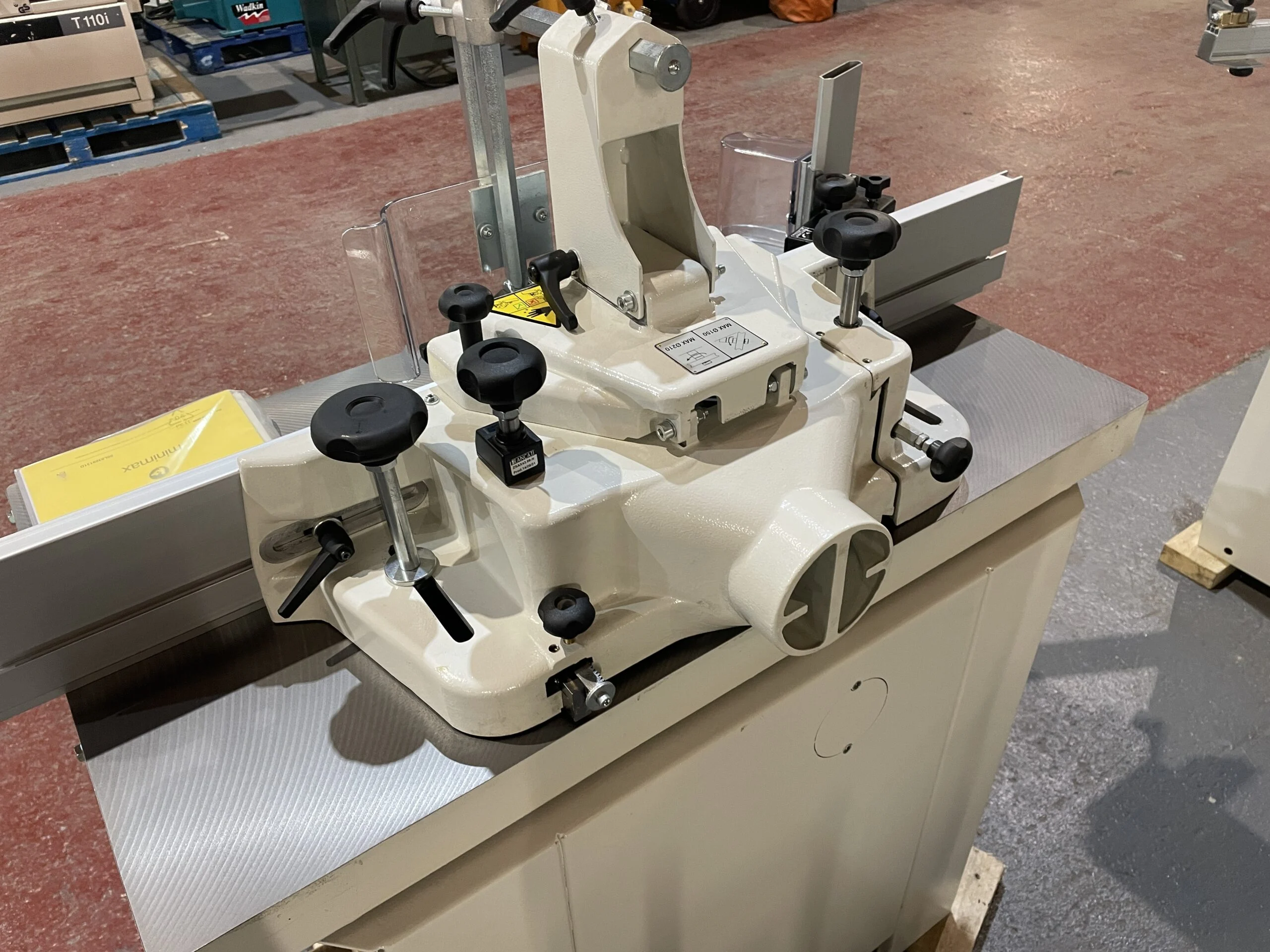

spindle moulder protection for shaping operations
spindle moulder hood with adjustment
exhaust hood on spindle guard 120mm
grouped controls on front of the machine

Optional extras available (not included):

Aluminium fence plates

Upgraded fence with 3 way adjustment

Interchangeable shaft
