Description

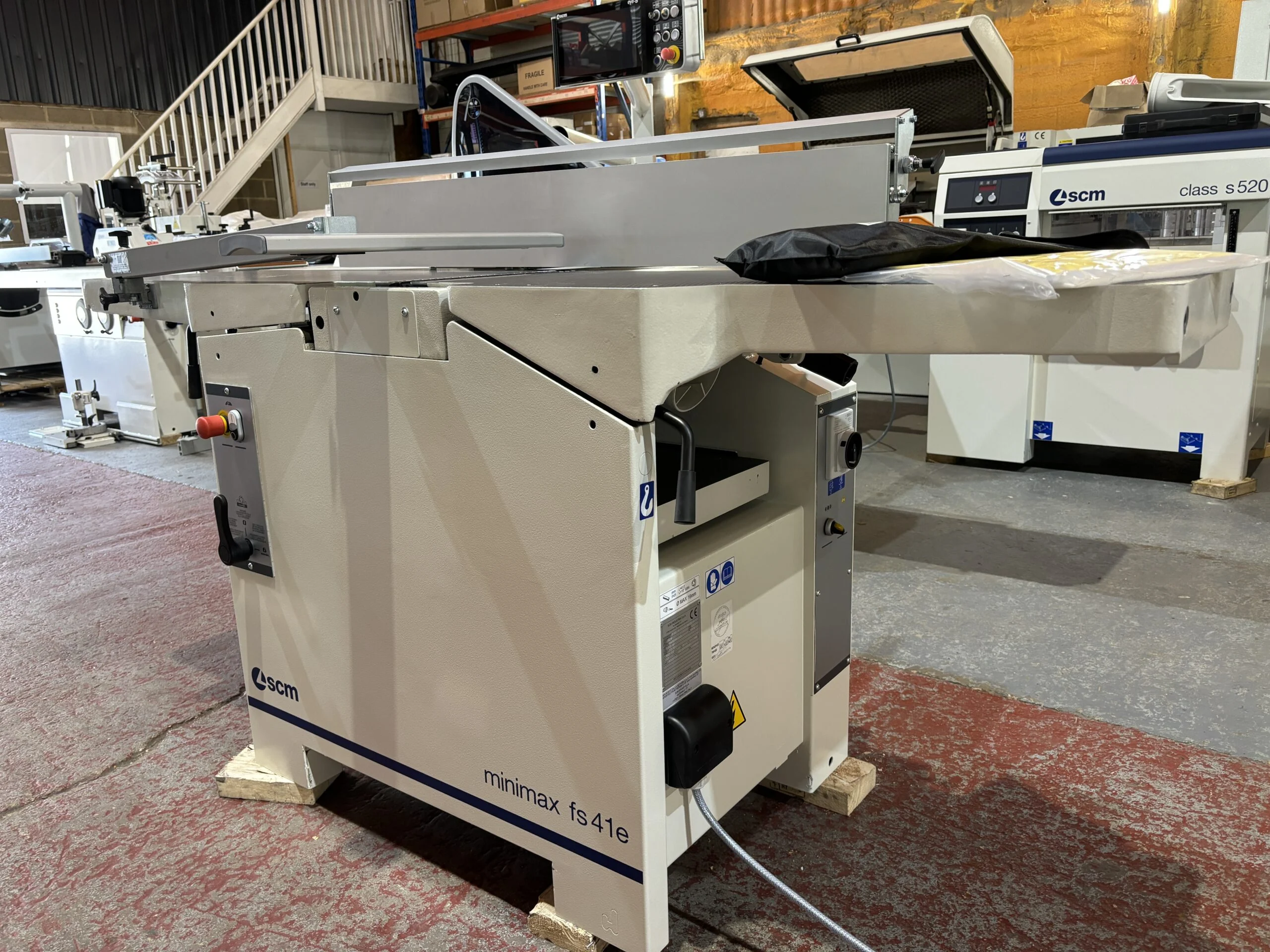

Minimax fs 41e Combined Planer Thicknesser
Max working width of surface tables 410mm
Total length of surface tables 2000mm
Tiltable surface fence 0-45 deg
Thicknessing table dimensions 410x775mm
Feed speed on thicknesser 6/12 m/min
Min / Max working heigth on thicknesser 3/230mm
Min working length on thicknesser 180mm
Motor 5kw (7.5hp)
Dust outlet 120 mm
Options included
4 knife Tersa cutter block
Additional overturning fence for narrow workpieces

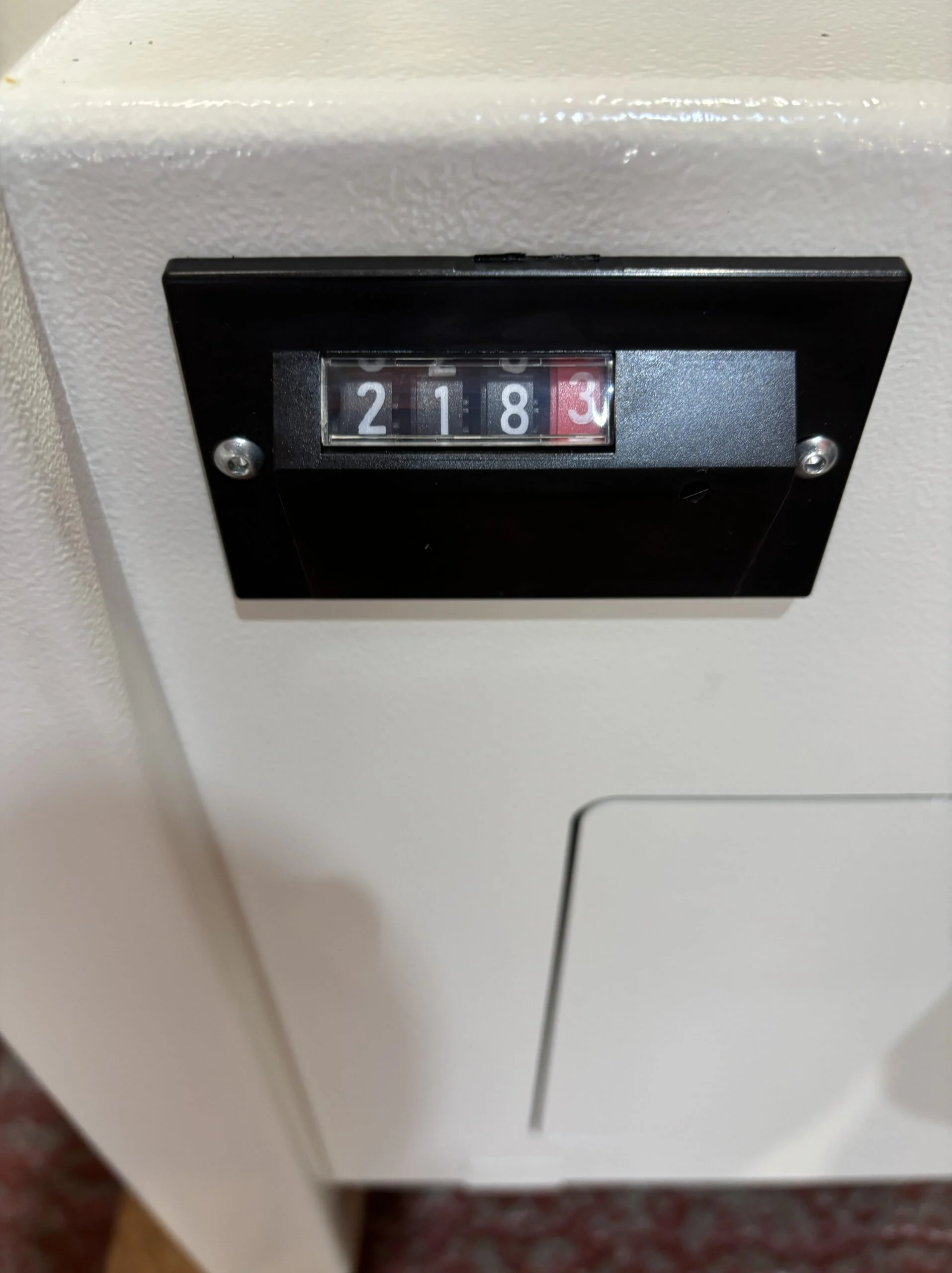

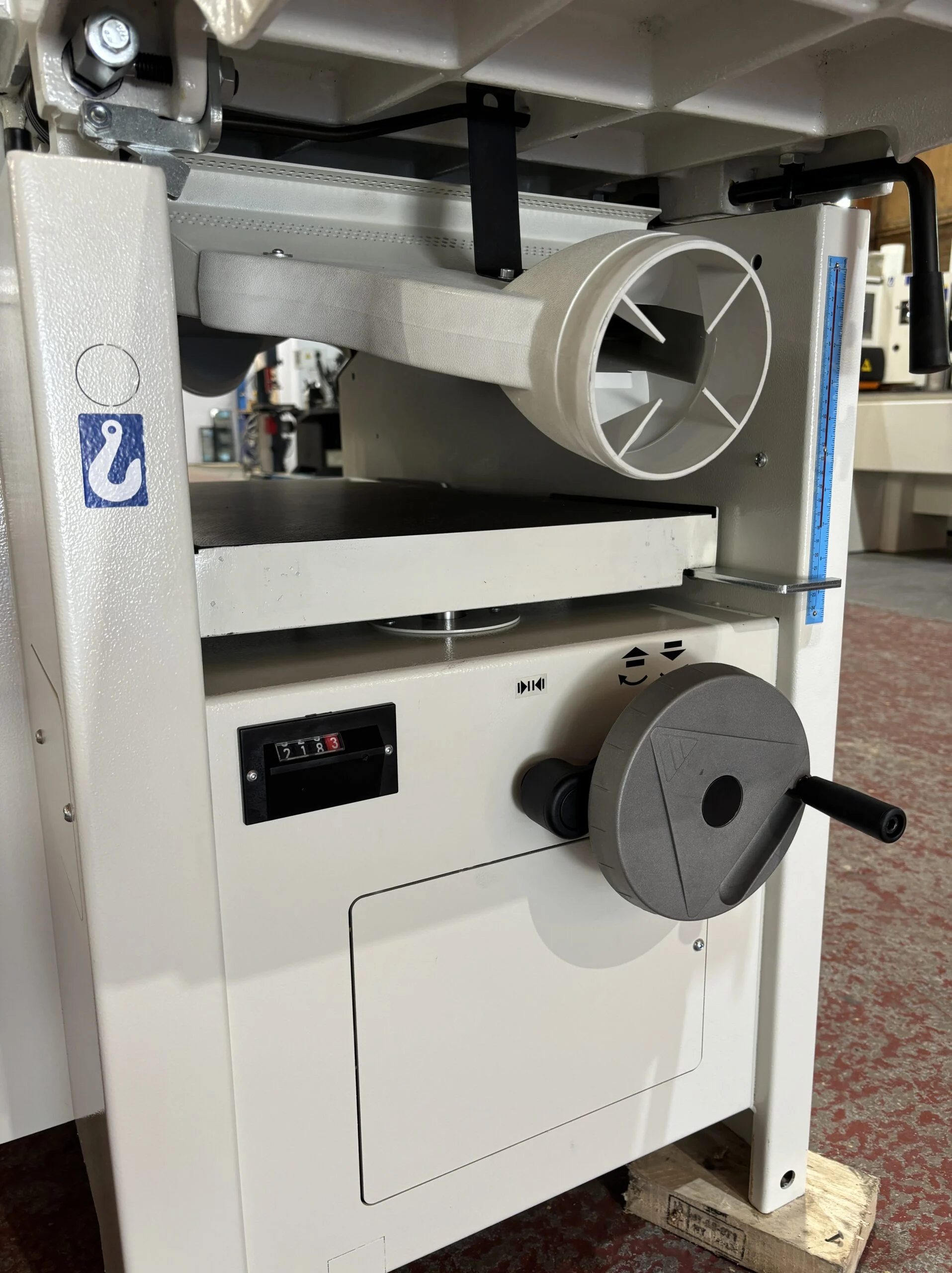

Numerical height readout for thicknessing table
Self braking motor
For a perfect finish, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The infeed roller has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller, in sandblasted steel, maintains the perfect post-processing finishing.

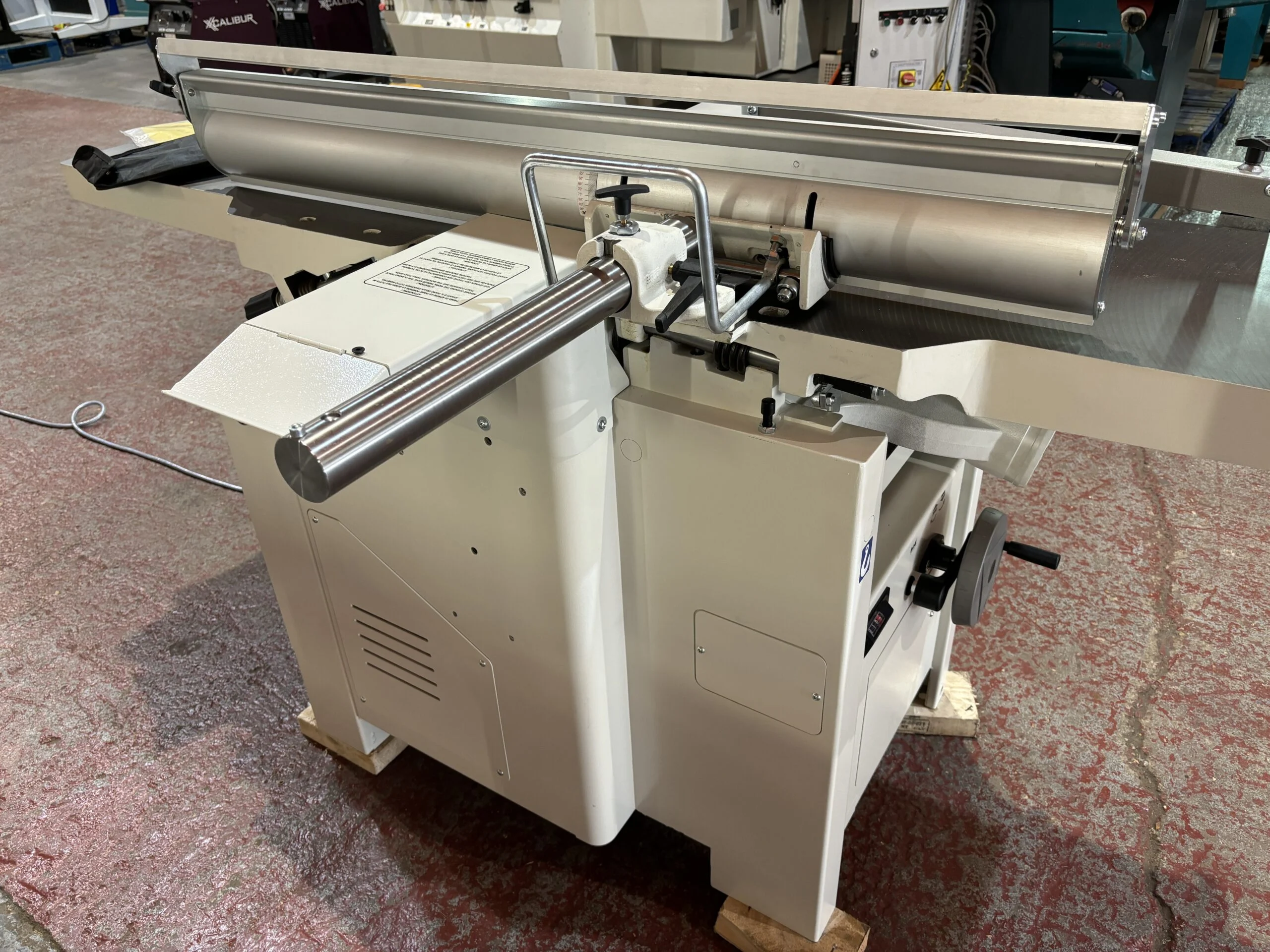

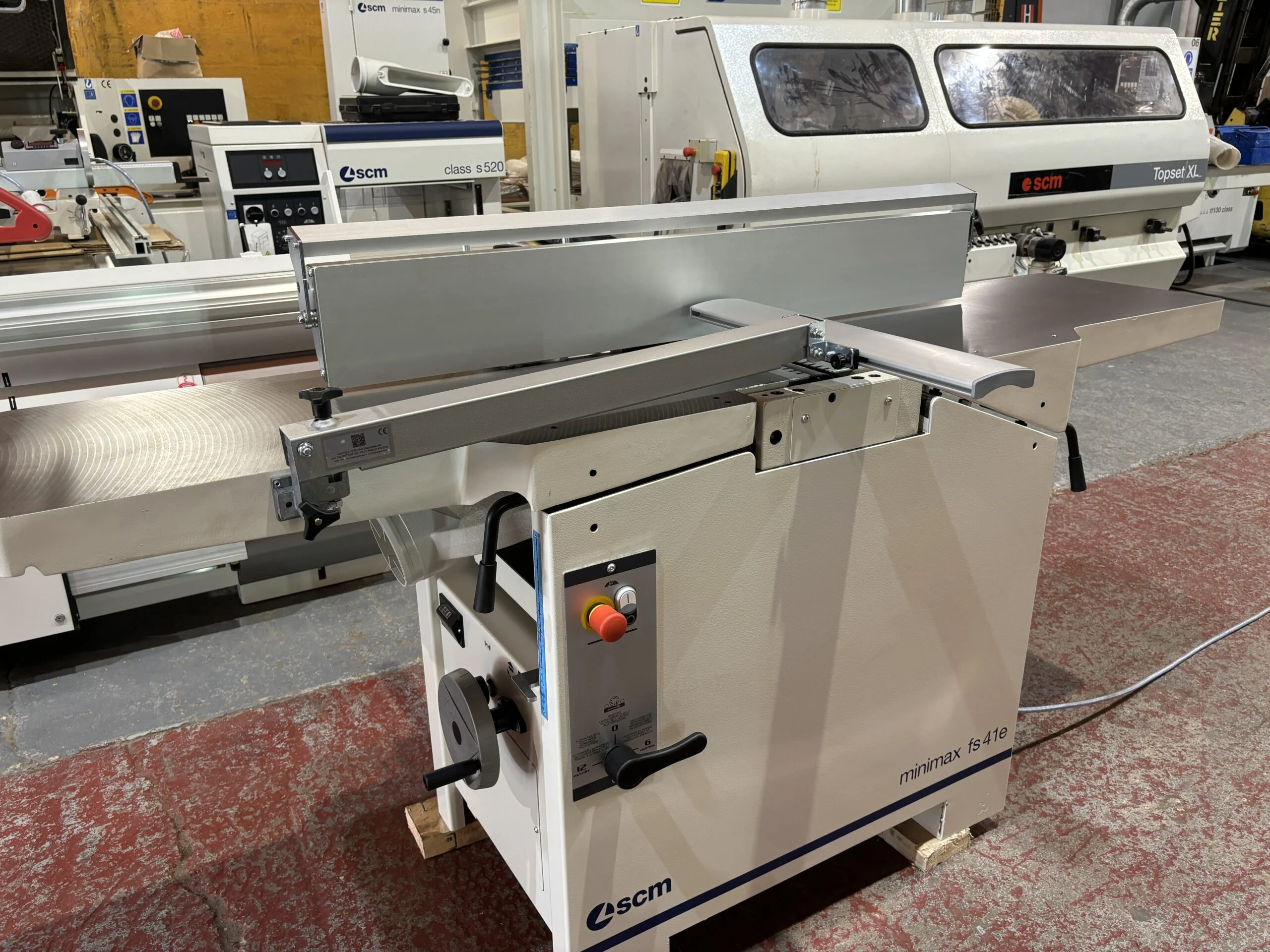

The fs 41e uses a dedicated planing fence extremely rigid and smooth, thanks to a support with central round bar
