Minimax tw45-c Spindle Moulder, Tilt Arbor, 3 Phase, Fence Upgrade

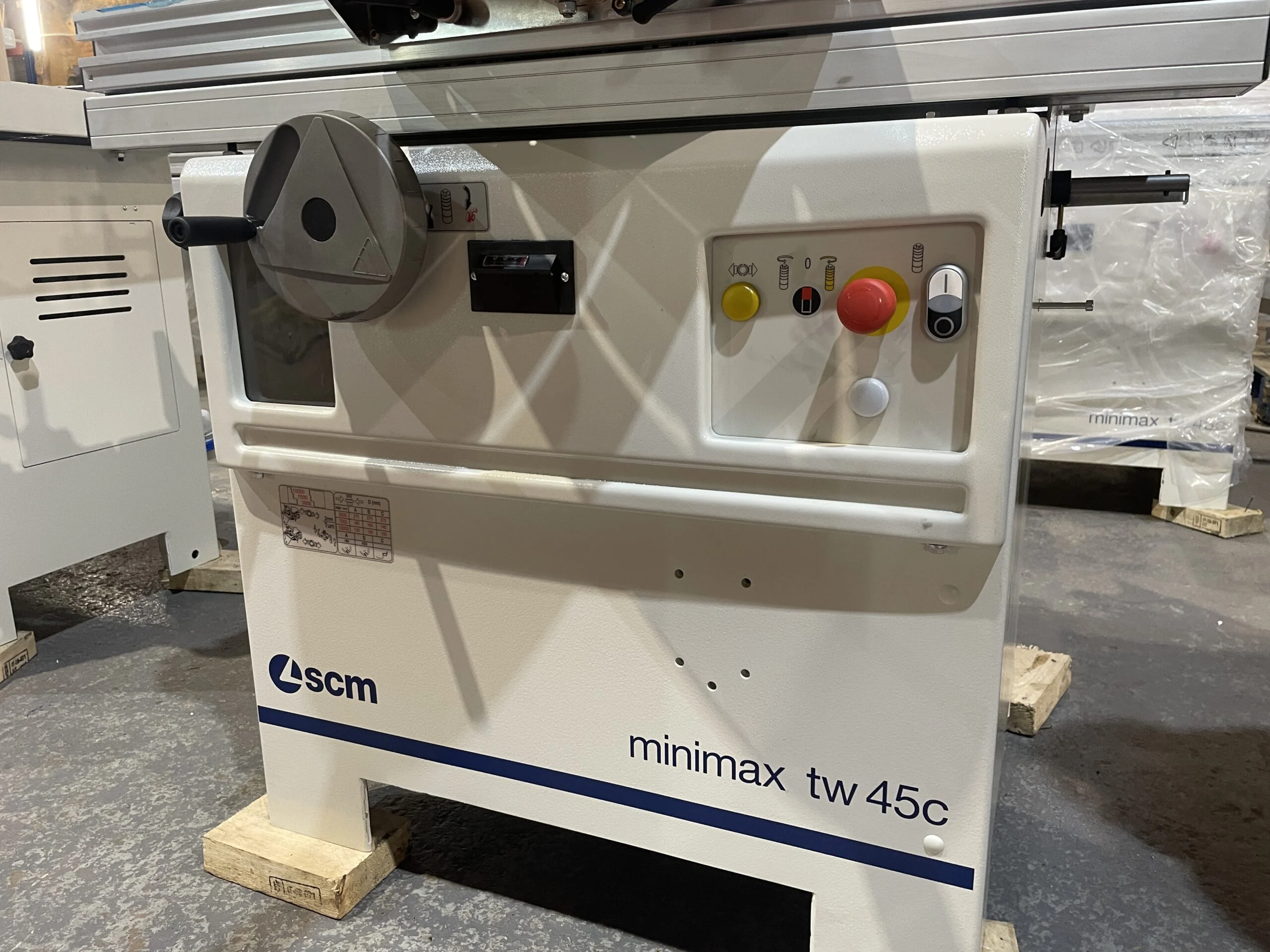

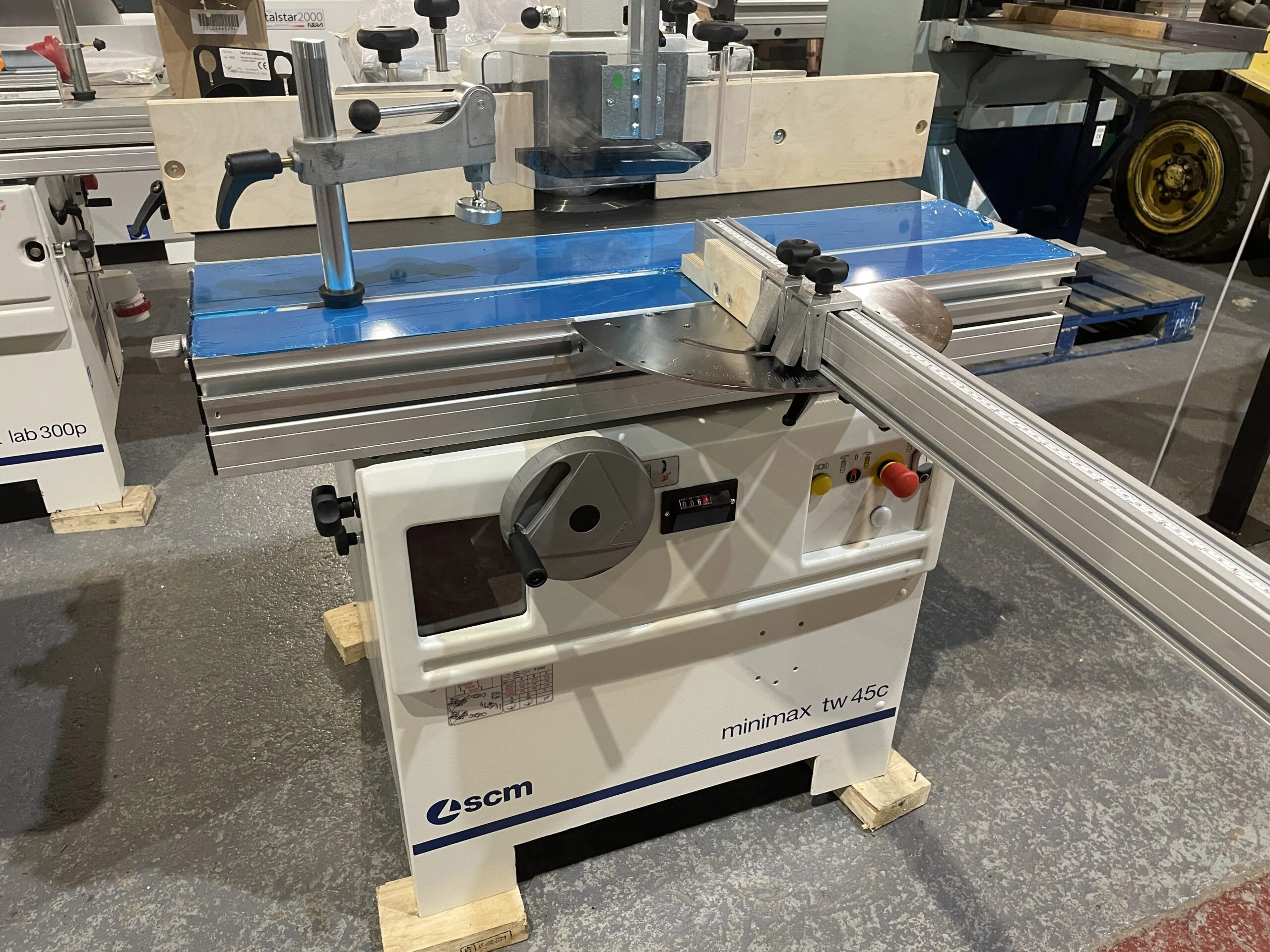

Minimax TW 45c Tilt Arbor Spindle Moulder

Technical Specifications :

– tilting shaft 0 – 45 degrees

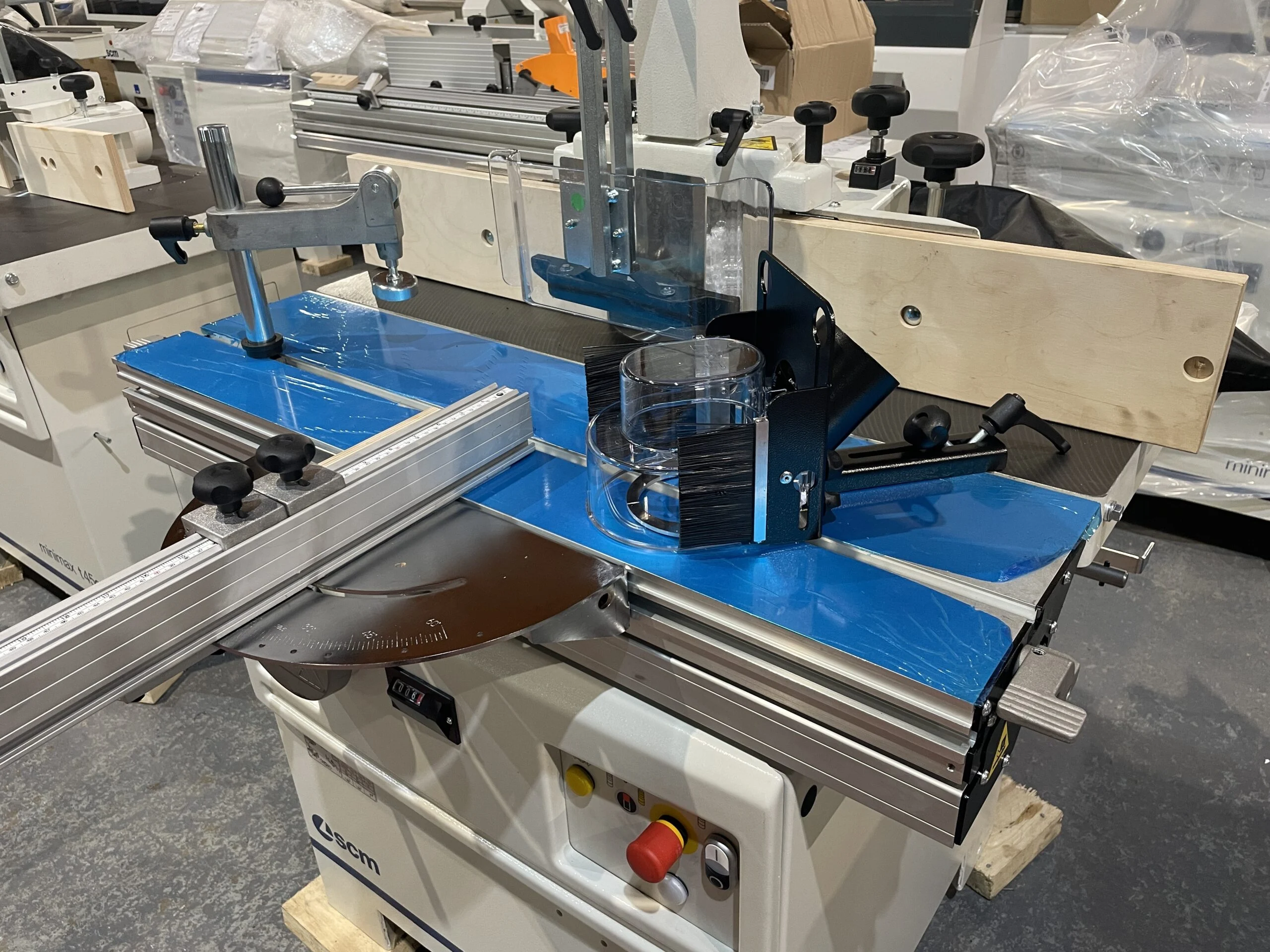

– aluminium sliding table 270 x 125 x 1000mm sliding table – sliding on high precision hardened steel guideways
– spindle speeds 3500/7000/10000
– max projection of spindle from table 130mm
– max useful length of spindle 100mm
– three phase 5kw motor
– self braking motor
– 30mm diameter fixed spindle shaft

Standard equipment :

Ring fence
3 x worktable rings

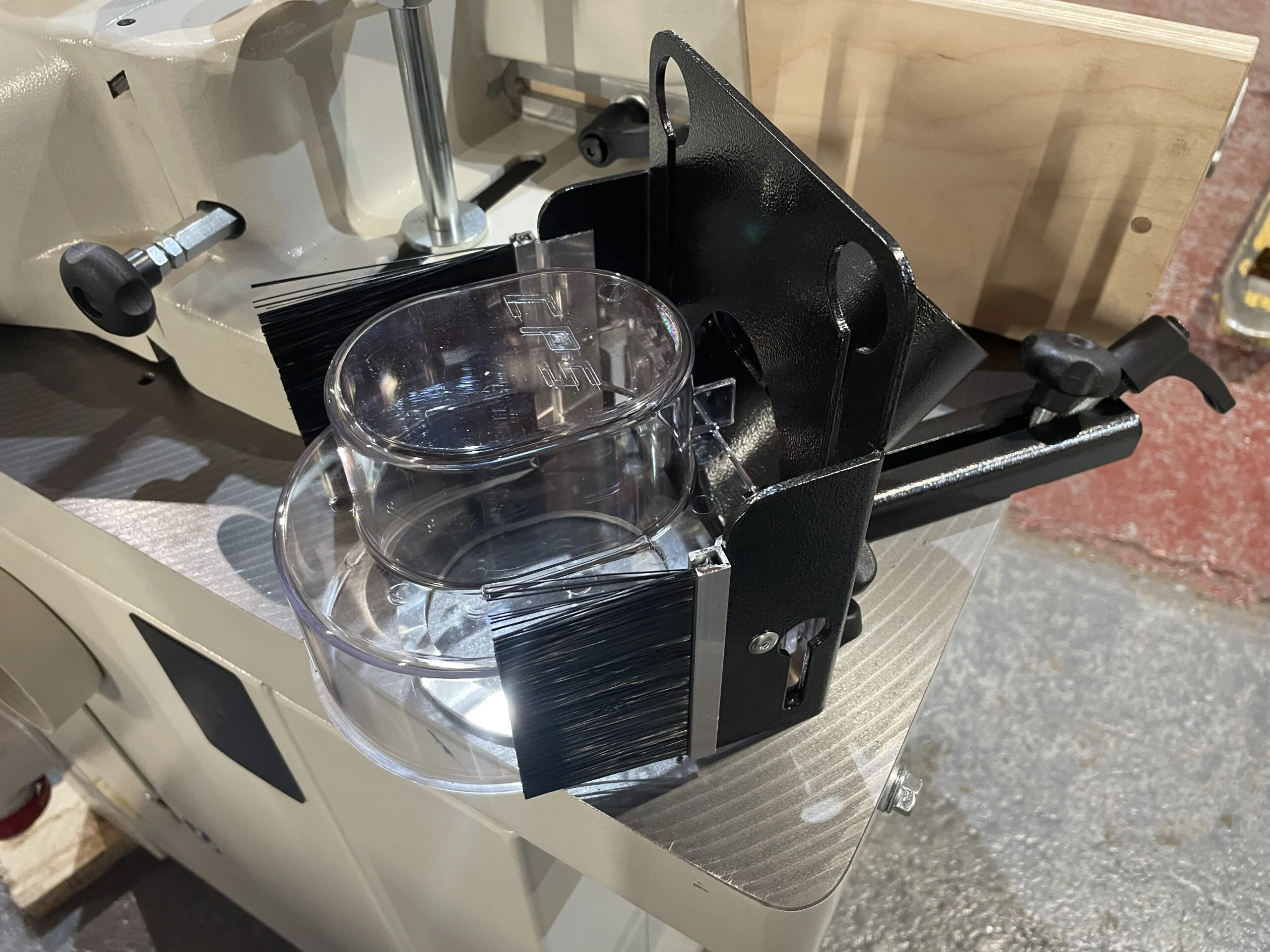

spindle moulder hood with adjustment
exhaust hood on spindle guard 120mm
grouped controls on front of the machine
Wooden Fences

Optional Extras:

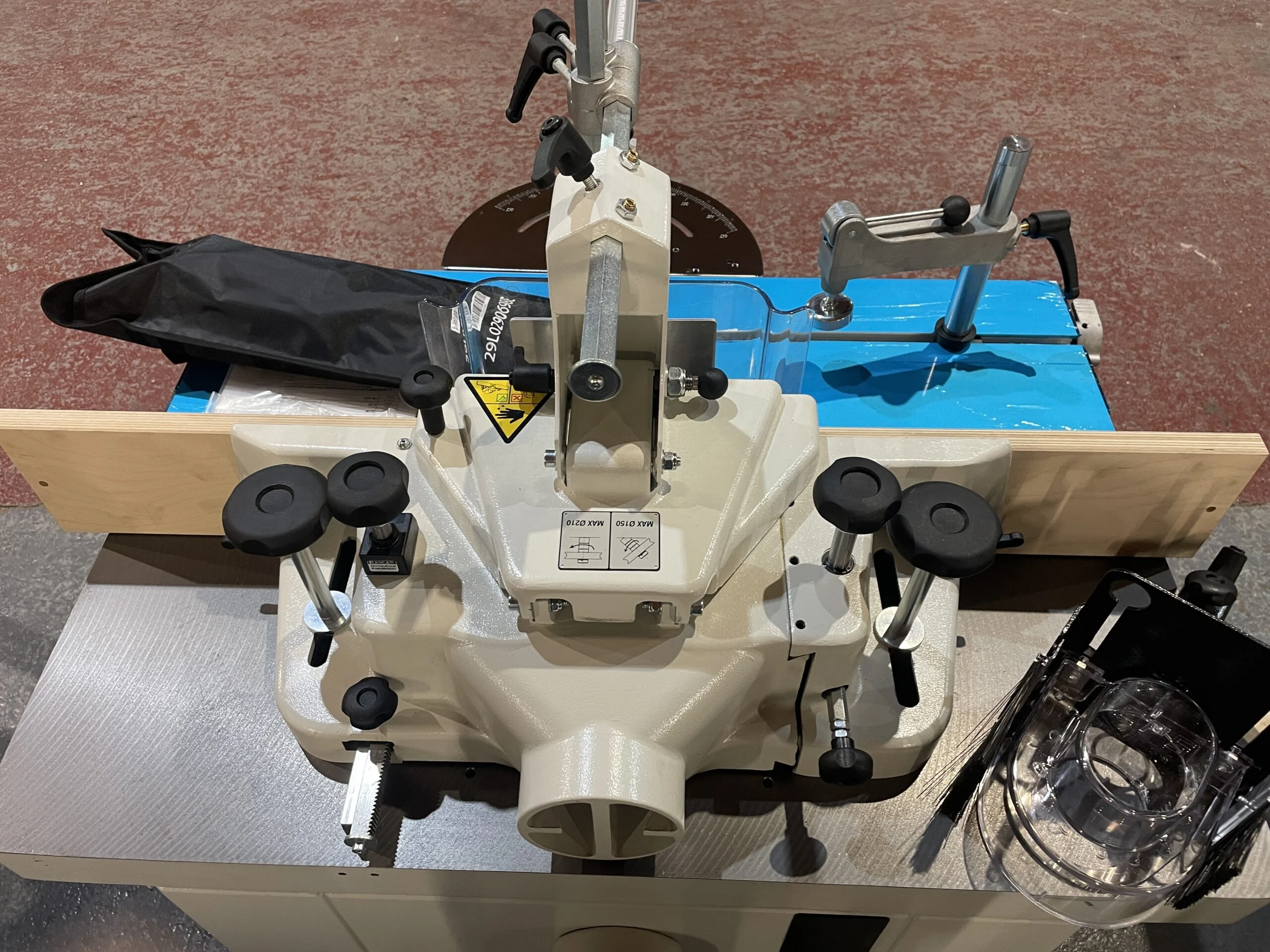

Upgraded fence with 3 way controlled adjustments (£677)

Tilt Arbor (£496)

Reverse rotation (£155)
