Description
Purchased new in January 2026 at a cost of £36000

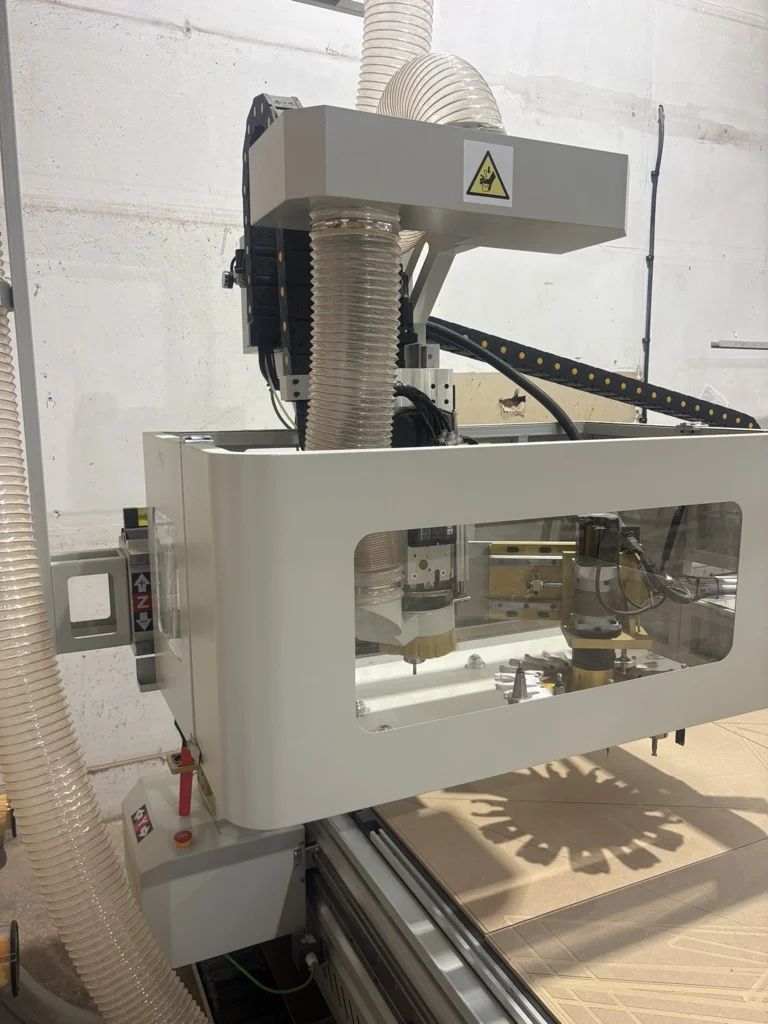

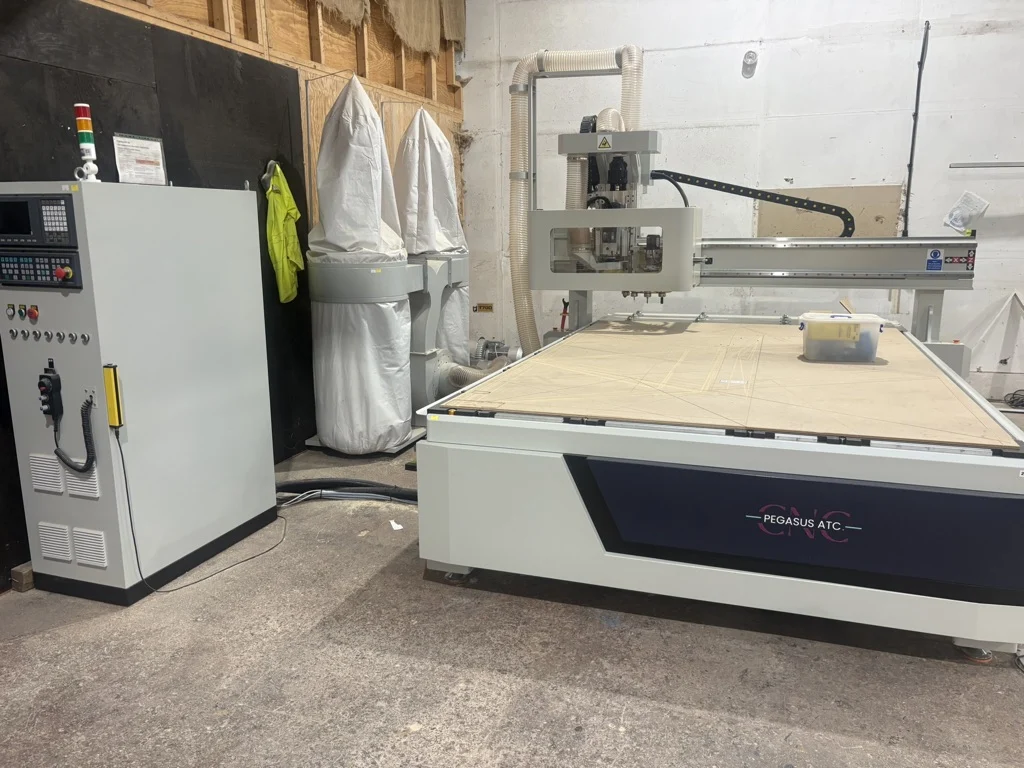

2026 Opus Pegasus 2030 ATC CNC
Bed size 2100 x 3050mm
3 Axis
ITALIAN 9KW HSD SPINDLE
YASKAWA SERVO MOTORS AND DRIVE

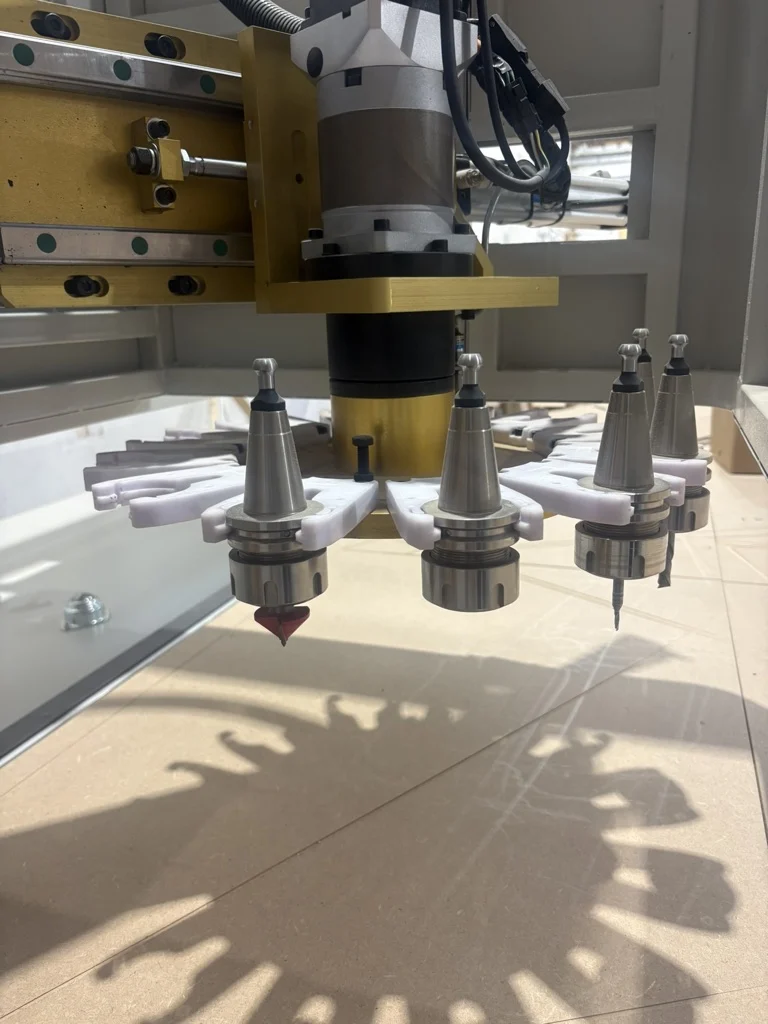

12 position SUPER-FAST CAROUSEL AUTOMATIC TOOL CHANGE

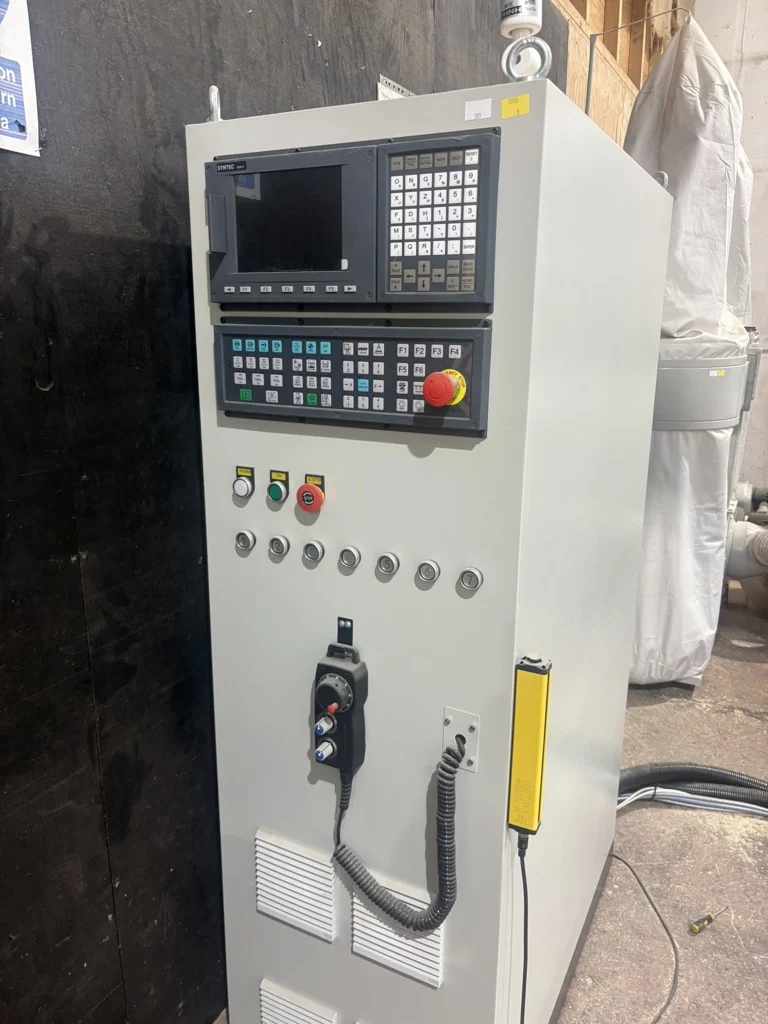

FEATURE-PACKED SYNTEC CONTROL SYSTEM
TECHNICAL SPECIFICATIONS
Power – 3 Phase 415v
Tool change type – Automatic Carousel
Tool capacity – 12 Tools

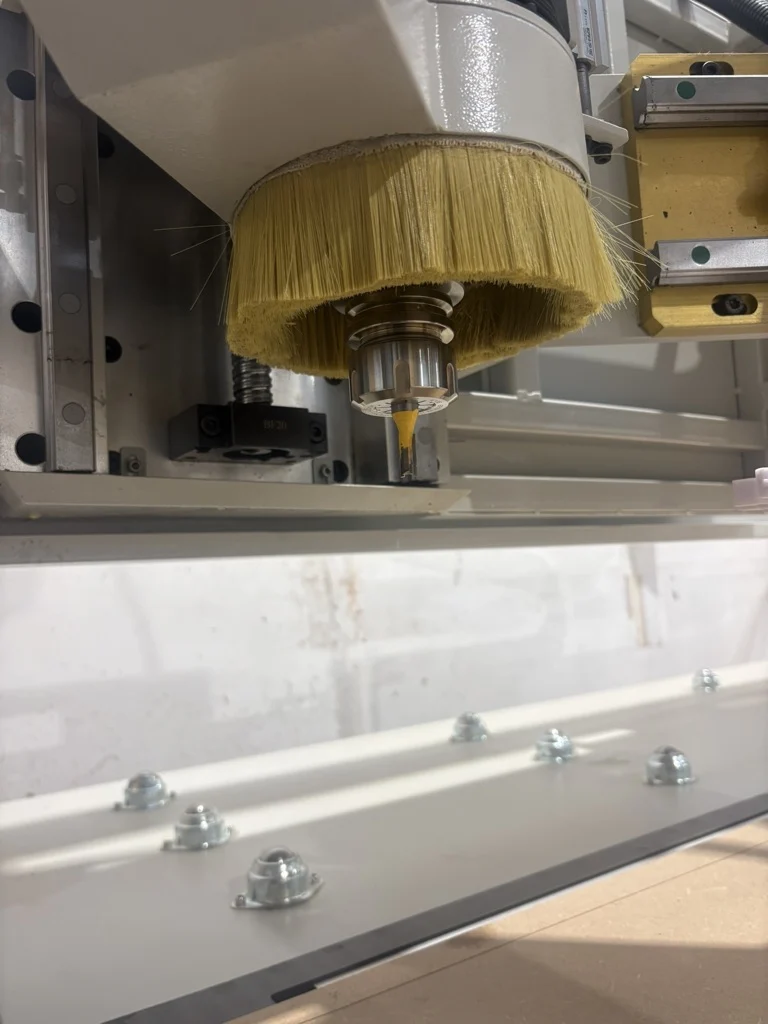

Spindle type – Italian HSD ES951 9kw spindle
Collets ER32

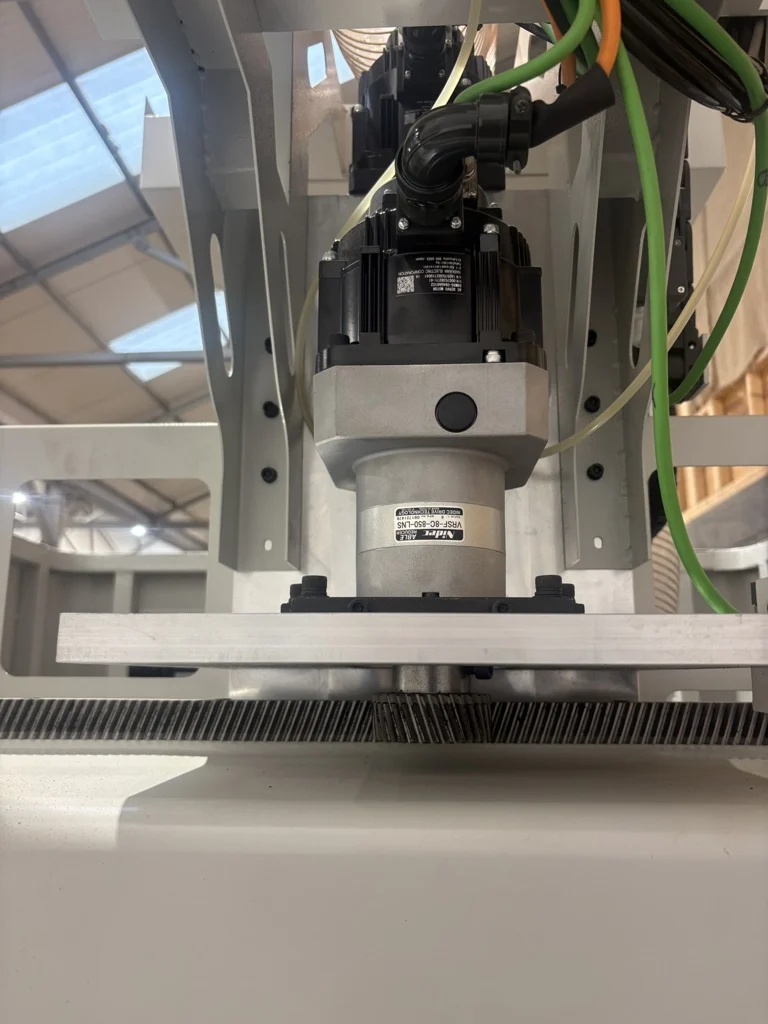

Motors & Drives – Japanese Yaskawa Servo motors and drives
Inverter – Delta
Tool Sensor – Automatic

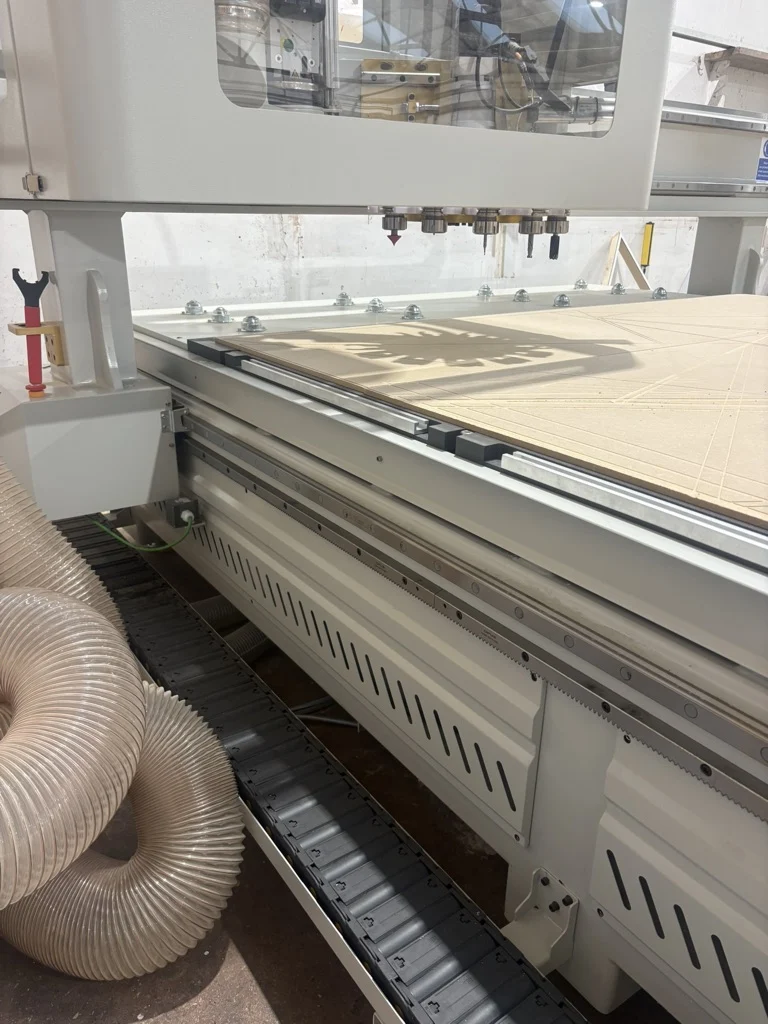

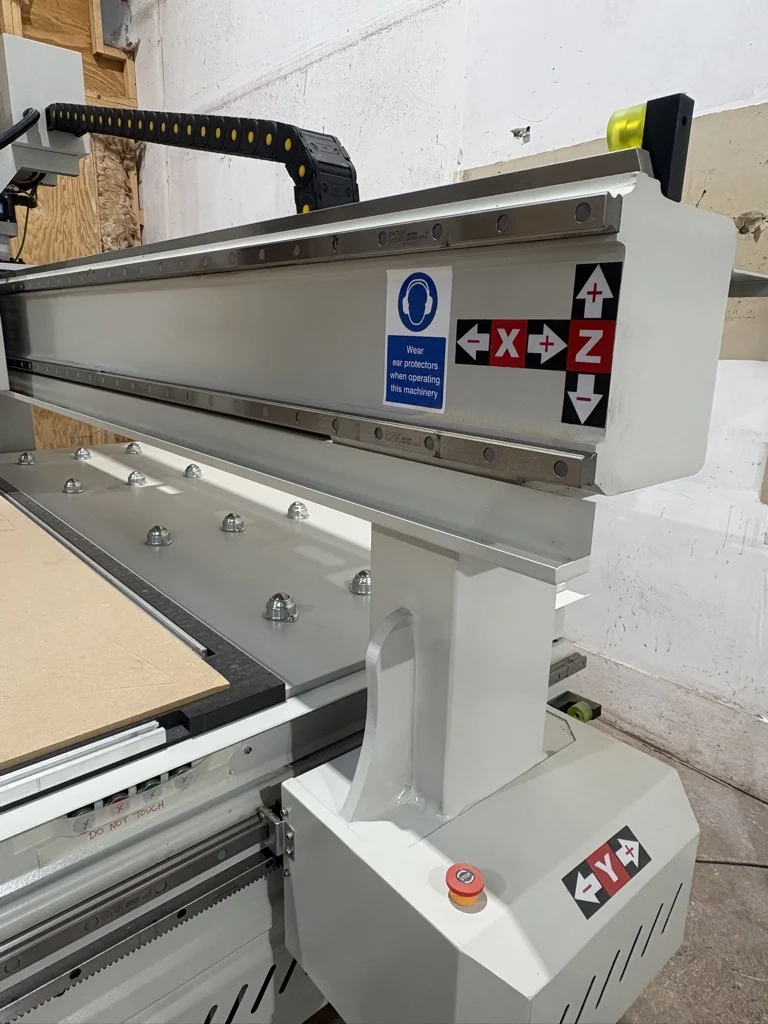

X,Y axis – Helical rack and pinion
Z axis – Ballscrew
X,Y axis speed – 30,000mm/min
Z axis speed – 8,000mm/min
Vacuum table – Yes, with unique matrix zones

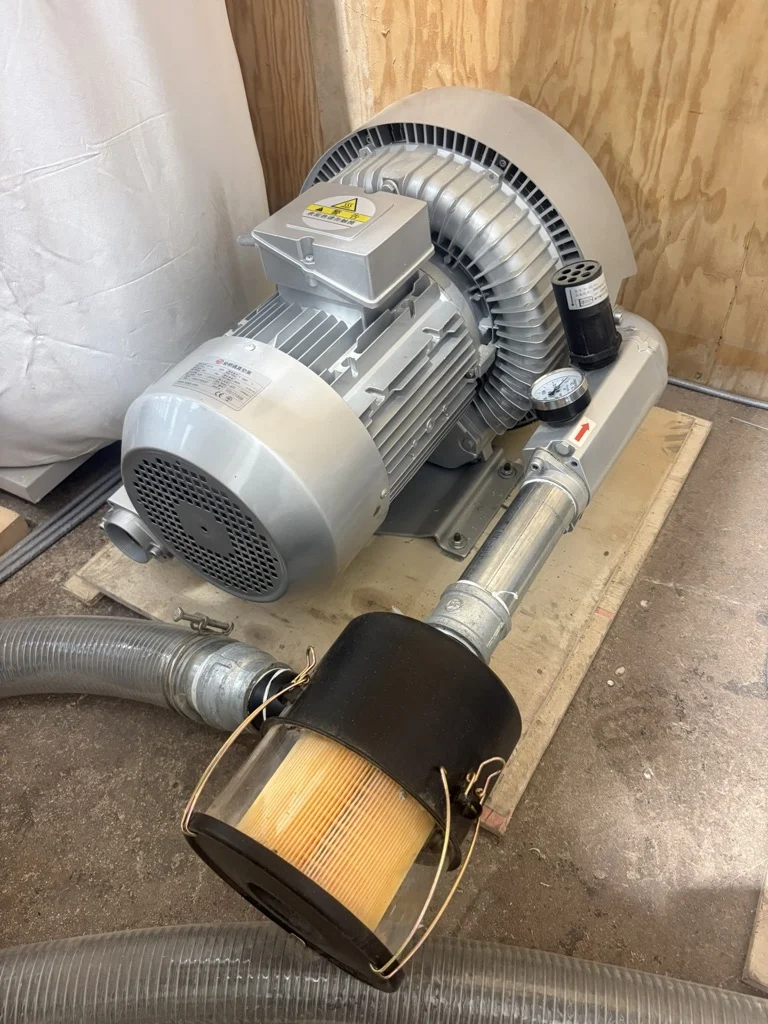

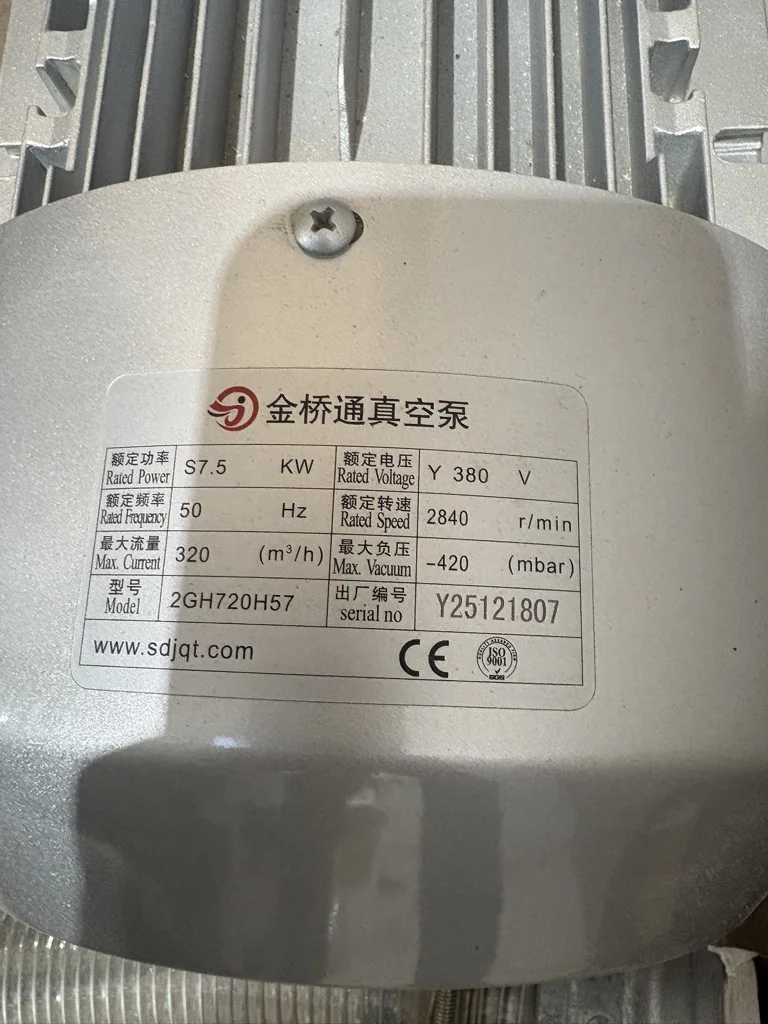

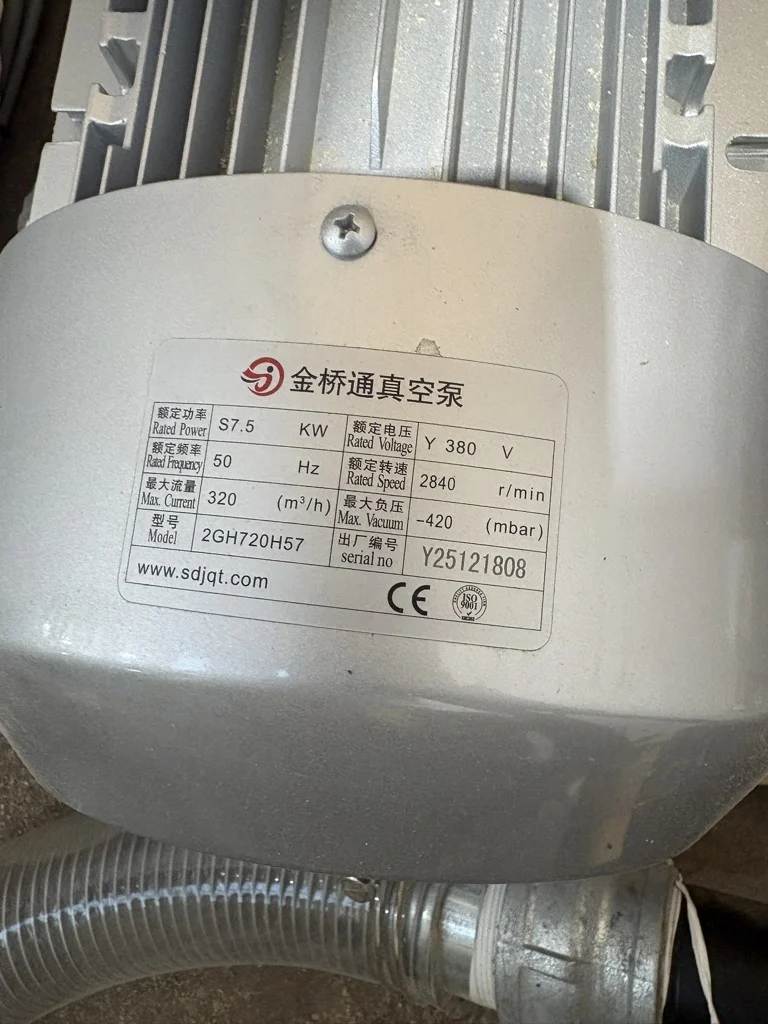

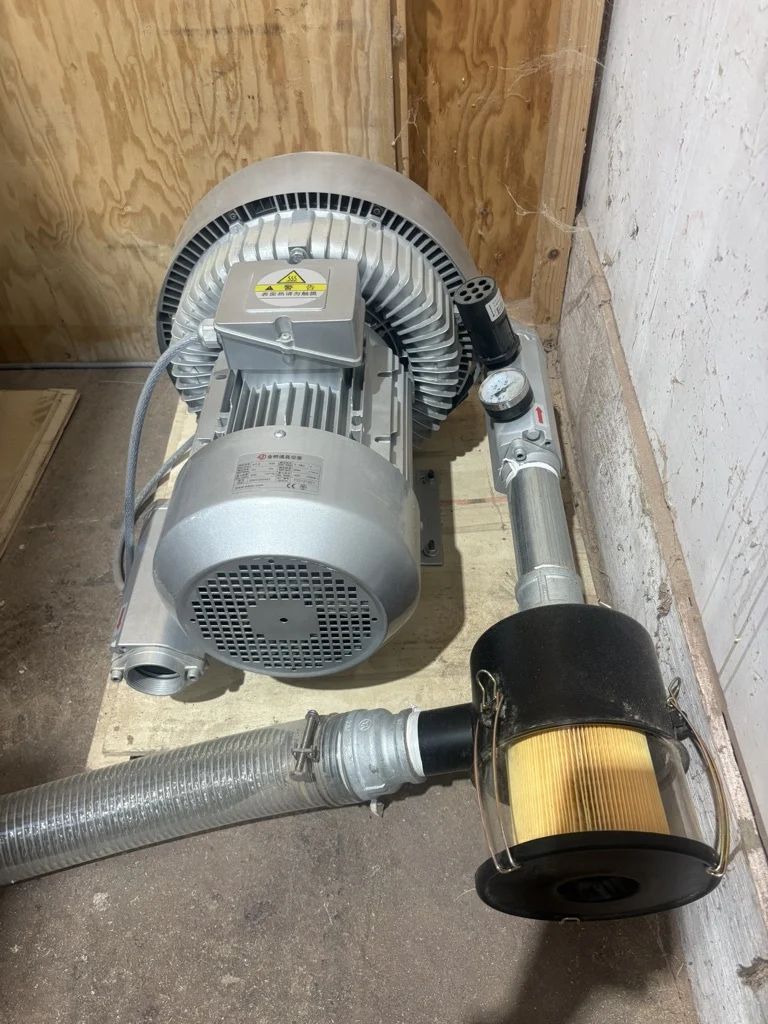

2 X 7.5kW Dual-stage vacuum pump
Vacuum pump included- 2 x 7.5kw DUal-stage vacuum pump
Extraction unit – 7.5kW Hard-wired, double bag unit
ALSO INCLUDES –
Self-levelling feet

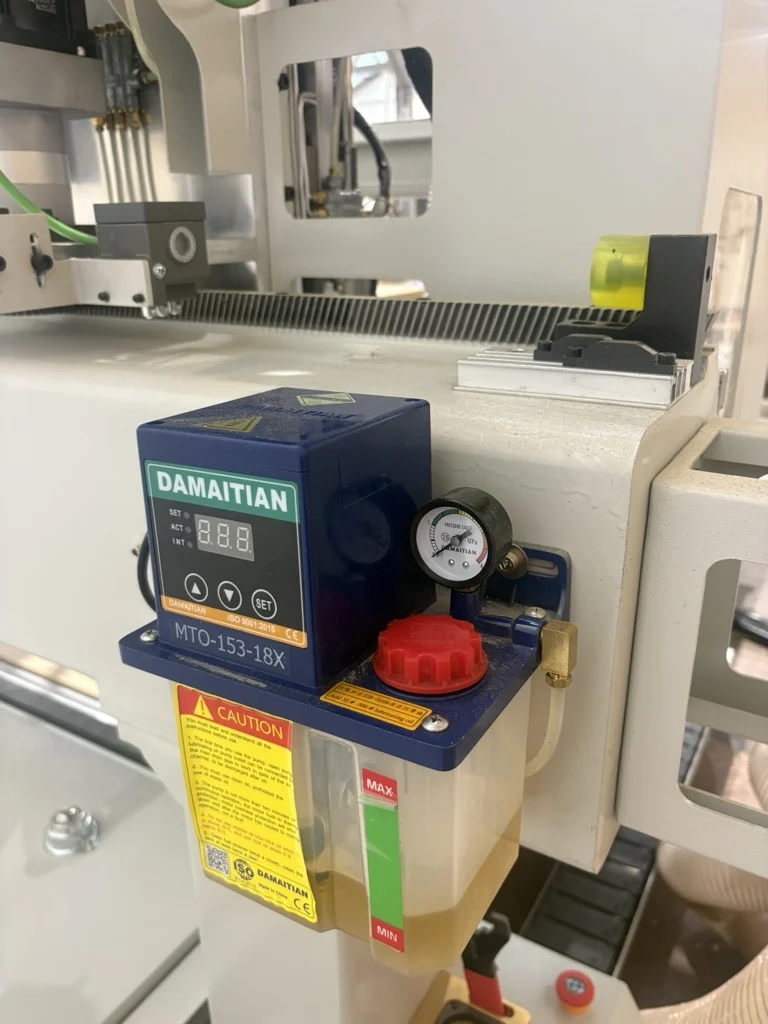

Automatic oil injection Bearing self-clean wipers
VCarve Pro software
CUSTOMER REQUIREMENTS
100L 8 bar air compressor
A PC or laptop
