Description

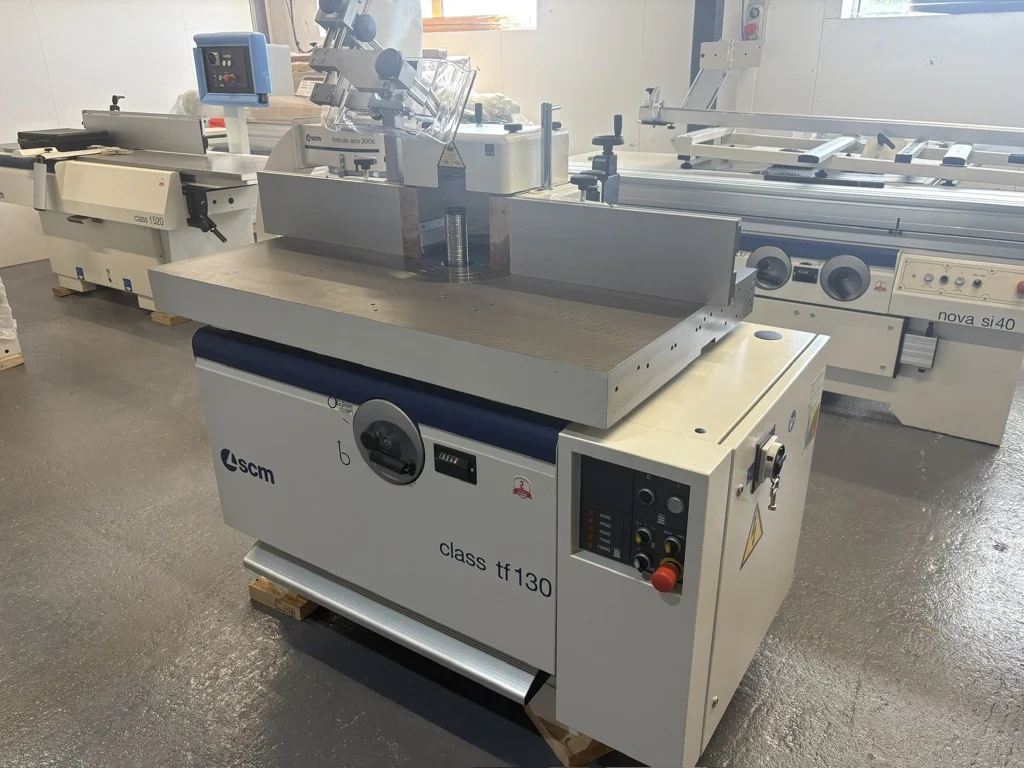

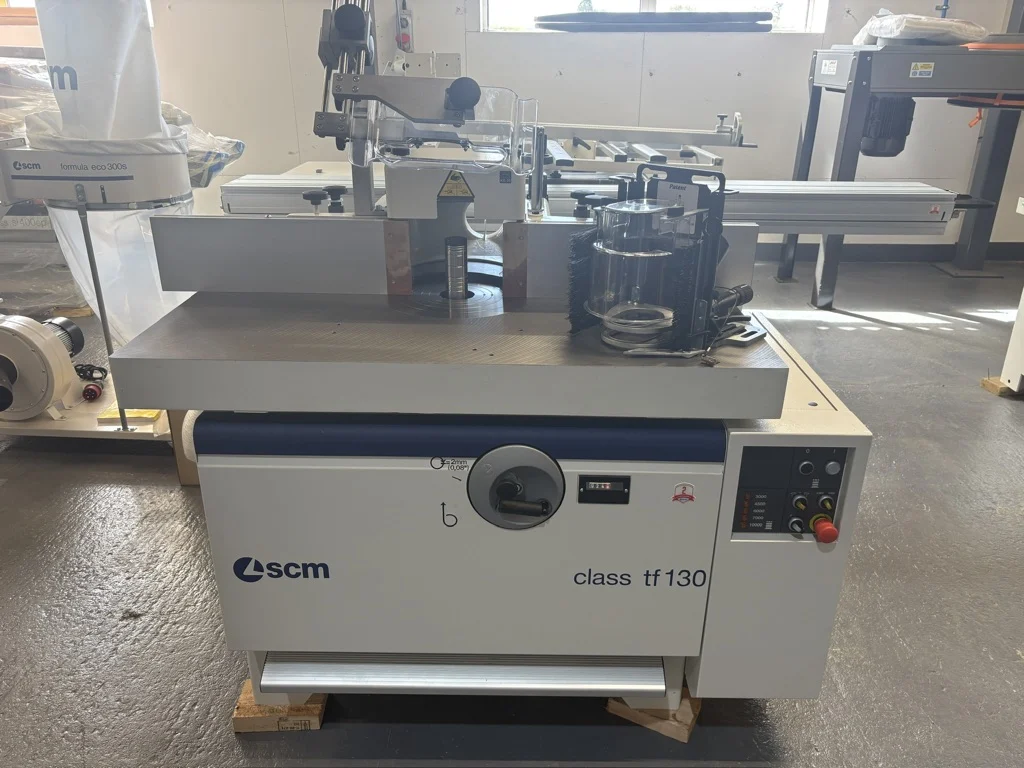

SCM Class Tf130 Spindle Moulder

  • 3 Phase
  • 7kw (9.5hp)
  • Mk5 interchangeable shaft with 30mm option – Alternative shaft option available in stock
  • Reverse spindle rotation as standard
  • Aluminium fence plates

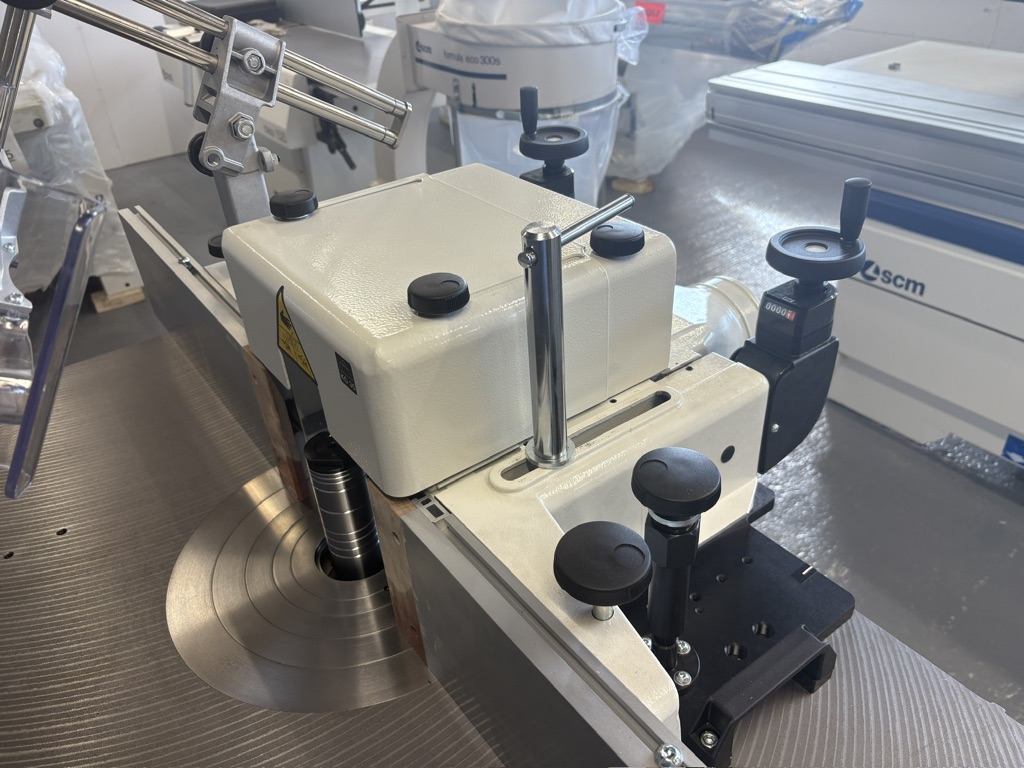

  • Upgraded spindle moulder fence with mechanical adjustments with 250mm max tool diameter
  • Worktable dimensions 1200×730
  • Working length of spindle 140mm
  • Spindle base projection from table 52mm

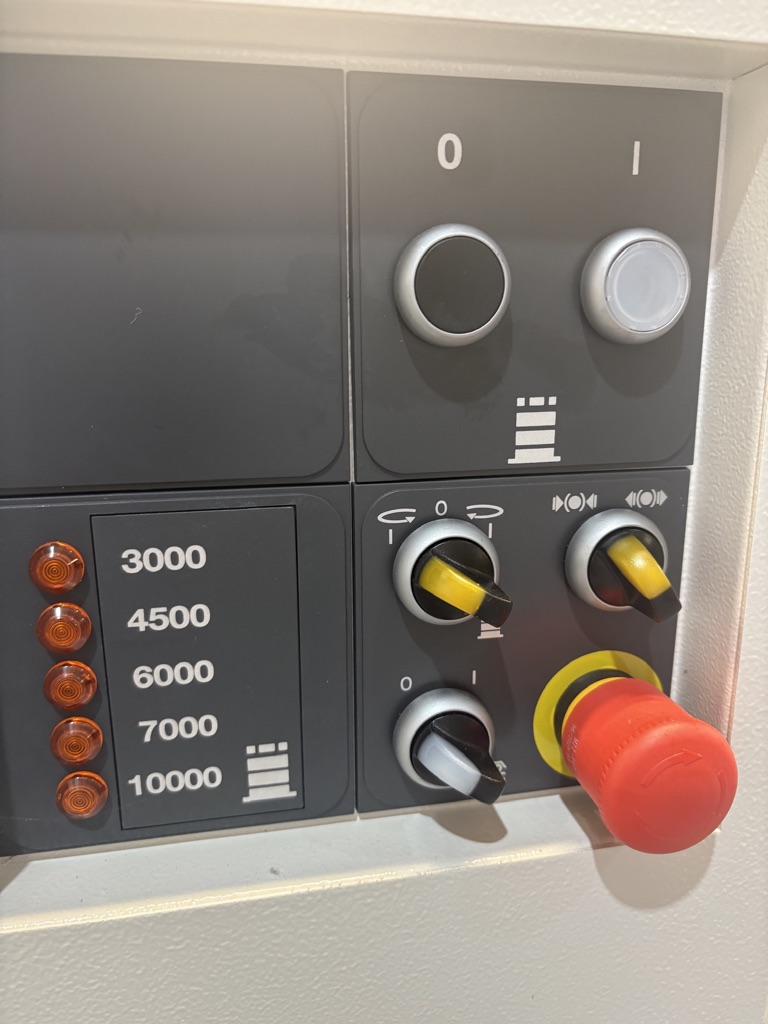

  • Spindle rpm 3000/4500/6000/7000/10,000
  • Max tool diameter retractable under worktable with rings 320x85mm
  • Separate power feed supply ready (power feed not included)
  • 2 x 120mm dust outlets at fence and base level
