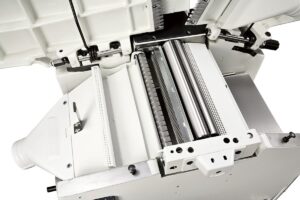

The planer unit stands on cast iron supports and the standard version has a 87 mm diameter cutter block with 3 knives. (The optional “Tersa” cutter block is available with 4 quick tightening knives and automatic adjustment). For an impeccable finish, the pressureof the thicknesser feed rollers can be adjusted according to the type of wood machined. The infeed roller has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller, in sandblasted steel, maintains the perfect post-processing finishing.

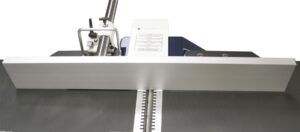

The fs 41e uses a dedicated planing fence extremely rigid and smooth, thanks to a support with central round bar.
– max working width 410mm
– total length of worktables 2000mm
– thicknessing table dimensions 775x423mm
– feed speed on thicknesser 6/12 m/min
– min / max working height on thicknesser 3/230mm
– spindle speed 5200rpm
– Motor 4Kw motor with braking
With added options:
Tersa cutterblock with 4 knives with rapid locking system
Numerical readout for thicknessing table positioning
Additional overturning fence for processing of thin work pieces
